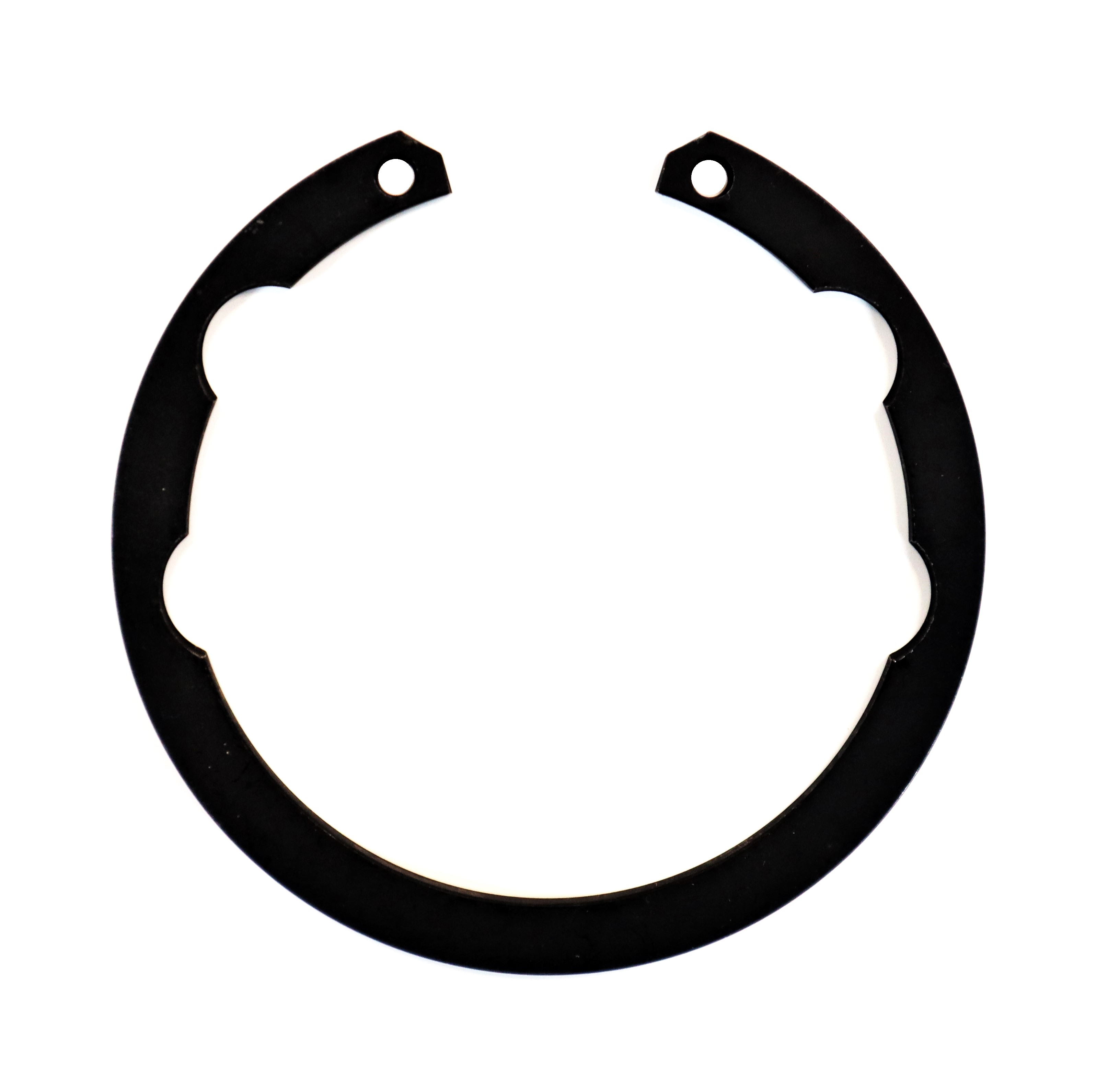

Mahindra C-Ring Dia 72 07410007201 For 1815 2015 2415 2615 2815 2816 3015 3016 3215 3316 3616 1526 1626 Max 22 Max 24 Max 25 Max 26 XL Max 28 XL Max 25 XL Front And Rear Axles

Was: $10.90
Now: $7.99
No reviews yet Write a Review
Mahindra C-ring dia 72 07410007201 for Mahindra 1815 2015 2415 2615 2815 2816 3015 3016 3215 3316 3616 1526 1626 Max 22 Max 24 Max 25 Max 26 XL Max 28 XL and Max 25 XL tractors, used as a 72 mm snap ring on front and rear axle wheel hub shafts to hold bearings and hub components in place.
SKU:
07410007201

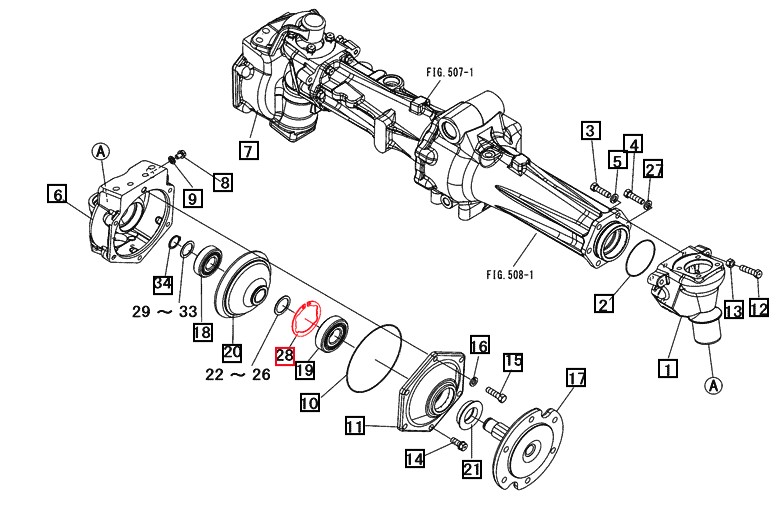

PART NUMBER DESCRIPTION SERIES MODEL AGGREGATE GROUP NO. GROUP NAME
07410007201 C-RING Dia. 72 15 Series 1815 HST Power Train 6P05020085 REAR AXLE
07410007201 C-RING Dia. 72 15 Series 1815 HST Steering 6P05020061 FRONT AXLE (PART 5)
07410007201 C-RING Dia. 72 15 Series 2015 Gear 4WD Chassis 01150095 TRANSMISSION (3/4)
07410007201 C-RING Dia. 72 15 Series 2015 HST 4WD Chassis 01120039 TRANSMISSION (HST) (3/4)
07410007201 C-RING Dia. 72 15 Series 2415 HST Steering 6P05010083 FRONT AXLE (5/7)
07410007201 C-RING Dia. 72 15 Series 2415 Gear Steering 6P05010083 FRONT AXLE (5/7)
07410007201 C-RING Dia. 72 15 Series 2415 HST Steering 6P05010091 REAR AXLE (2/2)
07410007201 C-RING Dia. 72 15 Series 2415 Gear Steering 6P05010091 REAR AXLE (2/2)
07410007201 C-RING Dia. 72 15 Series 2615 Gear Chassis 01160085 TRANSMISSION (5/5)
07410007201 C-RING Dia. 72 15 Series 2615 Gear Chassis 01160085 TRANSMISSION (5/5)
07410007201 C-RING Dia. 72 15 Series 2615 Gear Chassis 01160089 REAR AXLE
07410007201 C-RING Dia. 72 15 Series 2615 Gear Chassis 01160067 FRONT AXLE MFD (3/3)
07410007201 C-RING Dia. 72 15 Series 2615 HST 4WD Chassis 01140085 FRONT AXLE MFD (PART 3)
07410007201 C-RING Dia. 72 15 Series 3015 HST Chassis 01140085 FRONT AXLE MFD (PART 3)
07410007201 C-RING Dia. 72 15 Series 2615 HST 4WD Chassis 01140103 TRANSMISSION (HST) (2615: (-050731785); (3015: (-050951091) (PART 3)
07410007201 C-RING Dia. 72 15 Series 3015 HST Chassis 01140103 TRANSMISSION (HST) (2615: (-050731785); (3015: (-050951091) (PART 3)
07410007201 C-RING Dia. 72 15 Series 2615 HST 4WD Chassis 01140103 TRANSMISSION (HST) (2615: (-050731785); (3015: (-050951091) (PART 3)
07410007201 C-RING Dia. 72 15 Series 3015 HST Chassis 01140103 TRANSMISSION (HST) (2615: (-050731785); (3015: (-050951091) (PART 3)
07410007201 C-RING Dia. 72 15 Series 2615 HST 4WD Chassis 01140104 TRANSMISSION (HST) (2615: (051131786-); (3015: (051051092-) (PART 3)
07410007201 C-RING Dia. 72 15 Series 3015 HST Chassis 01140104 TRANSMISSION (HST) (2615: (051131786-); (3015: (051051092-) (PART 3)
07410007201 C-RING Dia. 72 15 Series 2615 HST 4WD Chassis 01140104 TRANSMISSION (HST) (2615: (051131786-); (3015: (051051092-) (PART 3)
07410007201 C-RING Dia. 72 15 Series 3015 HST Chassis 01140104 TRANSMISSION (HST) (2615: (051131786-); (3015: (051051092-) (PART 3)
07410007201 C-RING Dia. 72 15 Series 2615 HST 4WD Chassis 01140109 REAR AXLE
07410007201 C-RING Dia. 72 15 Series 3015 HST Chassis 01140109 REAR AXLE
07410007201 C-RING Dia. 72 15 Series 2815 HST Steering 03_15_0109 FRONT AXLE (5/5)
07410007201 C-RING Dia. 72 15 Series 3215 HST Steering 03_15_0109 FRONT AXLE (5/5)
07410007201 C-RING Dia. 72 15 Series 3215 Gear Steering 03_15_0109 FRONT AXLE (5/5)
07410007201 C-RING Dia. 72 1500 Series 1526 Gear 4WD T4 Axle Brake 1526 GEAR -FIG.510 FRONT AXLE (5/6)
07410007201 C-RING Dia. 72 1500 Series 1526 HST 4WD T4 Axle Brake 1526 HST-FIG.510 FRONT AXLE(5/6)
07410007201 C-RING Dia. 72 16 Series 1816 HST Chassis 1816H-FA5-1-08 FRONT AXLE (5/7)
07410007201 C-RING Dia. 72 16 Series 1816 HST Chassis 1816H-RA-1-08 REAR AXLE
07410007201 C-RING Dia. 72 16 Series 2816 Gear Chassis 2816GFAMFD3-1-08 FRONT AXLE MFD (3/3)
07410007201 C-RING Dia. 72 16 Series 2816 Gear Chassis 2816GT5-1-08 TRANSMISSION (5/5)
07410007201 C-RING Dia. 72 16 Series 2816 Gear Chassis 2816GT5-1-08 TRANSMISSION (5/5)
07410007201 C-RING Dia. 72 16 Series 2816 Gear Chassis 2816GRA-1-08 REAR AXLE
07410007201 C-RING Dia. 72 16 Series 2816 HST 4WD Chassis 2816FAM3-1-08 FRONT AXLE MFD (3/3)
07410007201 C-RING Dia. 72 16 Series 2816 HST 4WD Chassis 2816HT3-1-08 TRANSMISSION (3/4)
07410007201 C-RING Dia. 72 16 Series 2816 HST 4WD Chassis 2816HT3-1-08 TRANSMISSION (3/4)
07410007201 C-RING Dia. 72 16 Series 2816 HST 4WD Chassis 2816HRA-1-08 REAR AXLE
07410007201 C-RING Dia. 72 16 Series 2516 Gear Chassis 2516GFA5-1-08 FRONT AXLE (5/7)
07410007201 C-RING Dia. 72 16 Series 2516 Gear Chassis 2516GRA2-1-08 REAR AXLE (2/2)
07410007201 C-RING Dia. 72 16 Series 2516 HST Chassis 2516HFA5-1-08 FRONT AXLE (5/7)
07410007201 C-RING Dia. 72 16 Series 2516 HST Chassis 2516HRA2-1-08 REAR AXLE (2/2)
07410007201 C-RING Dia. 72 16 Series 2216 Gear Chassis 2216GCT3-1-08 TRANSMISSION (3/4)
07410007201 C-RING Dia. 72 16 Series 2216 HST Chassis 2216H-T3-1-08 TRANSMISSION (3/4)
07410007201 C-RING Dia. 72 16 Series 3016 Gear Axle Brake 3016G-FAX-5-10 FRONT AXLE (PART 5)
07410007201 C-RING Dia. 72 16 Series 3016 HST Axle Brake 3016H-FA-5-10 FRONT AXLE (PART 5)
07410007201 C-RING Dia. 72 16 Series 3316 Gear Chassis 3316G-FA5-1-08 FRONT AXLE (5/5)
07410007201 C-RING Dia. 72 16 Series 3316 HST Chassis 3316H-FA5-1-08 FRONT AXLE (5/5)
07410007201 C-RING Dia. 72 16 Series 3616 Gear 4WD Axle Brake 3616G-FA-5-10 FRONT AXLE (PART 5)
07410007201 C-RING Dia. 72 16 Series 3616 Gear Cabin Axle Brake 3616-C-FA-5-10 FRONT AXLE (PART 5)
07410007201 C-RING Dia. 72 16 Series 3616 HST Cabin Axle Brake 3616H-FA5-10 FRONT AXLE (PART 5)
07410007201 C-RING Dia. 72 16 Series 3616 HST 4WD Axle Brake 3616H-FA5-10 FRONT AXLE (PART 5)
07410007201 C-RING Dia. 72 1600 Series 1626 HST Axle Brake 1626 HST_FIG 510 FRONT AXLE (5/6)
07410007201 C-RING Dia. 72 1600 Series 1626 Gear Axle Brake 1626 GEAR_FIG 510 FRONT AXLE (5/6)
07410007201 C-RING Dia. 72 1600 Series 1626 HST Refresh Axle Brake 1626 HST REFRESH_FIG 510 FRONT AXLE (5/6)
07410007201 C-RING Dia. 72 1600 Series 1626 Gear Refresh Axle Brake 1626 GEAR REFRESH_FIG 510 FRONT AXLE (5/6)
07410007201 C-RING Dia. 72 Max (T4 Series) Max 24 HST Steering MAX 24 HST_FIG 80 REAR AXLE (2/2) 1
07410007201 C-RING Dia. 72 Max (T4 Series) Max 26 XL Gear Steering MAX 26 XL GEAR_FIG 75 FRONT AXLE (5/7)
07410007201 C-RING Dia. 72 Max (T4 Series) Max 26 XL Gear Steering MAX 26 XL GEAR_FIG 79 REAR AXLE (2/2)
07410007201 C-RING Dia. 72 Max (T4 Series) Max 26 XL HST Steering MAX 26 XL HST_FIG 84 FRONT AXLE (5/7)
07410007201 C-RING Dia. 72 Max (T4 Series) Max 26 XL HST Steering MAX 26 XL HST_FIG 88 REAR AXLE (2/2)
07410007201 C-RING Dia. 72 Max Series Max 22 HST Steering '01_MAX22_0001_0087-M' REAR AXLE(2/2)
07410007201 C-RING Dia. 72 Max Series Max 25 HST Steering 25MAX-REAX2-14 REAR AXLE (2/2)
07410007201 C-RING Dia. 72 Max Series Max 28 XL HST Steering '01_MAX28_0001_0079-M' FRONT AXLE (5/7)
07410007201 C-RING Dia. 72 Max Series Max 28 XL HST Steering '01_MAX28_0001_0087-M' REAR AXLE (2/2)
07410007201 C-RING Dia. 72 Max Series Max 28 XL Gear Steering MAX28XLG-FA5-14 FRONT AXLE (5/7)
07410007201 C-RING Dia. 72 Max Series Max 28 XL Gear Steering MAX28XLG-RA2-14 REAR AXLE (2/2)
07410007201 C-RING Dia. 72 Max XL Series Max 26XLT HST Axle Brake MAX26 HST_FIG 505 FRONT AXLE (5/7)
07410007201 C-RING Dia. 72 Max XL Series Max 26XLT HST Axle Brake MAX26 HST_FIG 510 REAR AXLE (2/3)
07410007201 C-RING Dia. 72 Max XL Series Max 26XLT Gear Axle Brake MAX 26 GEAR_FIG.505 FRONT AXLE (5/7)
07410007201 C-RING Dia. 72 Max XL Series Max 26XLT Gear Axle Brake MAX 26 GEAR_FIG.510 REAR AXLE (2/3)
07410007201 C-RING Dia. 72 Max XL Series Max 25 XL HST Axle Brake MAX 25 XL HST_FIG.510 REAR AXLE (2/2)
cdk-part-number:
07410007201
Section:
STEERING
Section:
FRONT AXLE
Model:
1526
Model:
1626
Model:
1815
Model:
1816
Model:
2015
Model:
2216
Model:
2415
Model:
2516
Model:
2615
Model:
2815
Model:
2816
Model:
3015
Model:
3016
Model:
3215
Model:
3316
Model:
3616
Model:
MAX22
Model:
MAX24
Model:
MAX25
Model:
MAX26
Model:
MAX28
