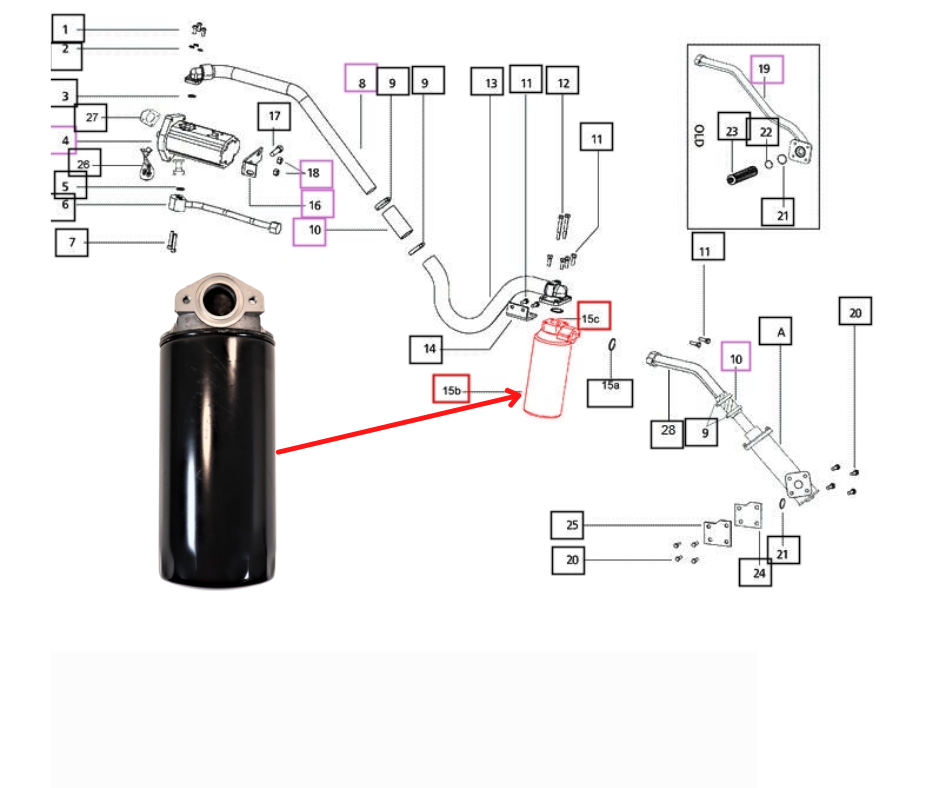

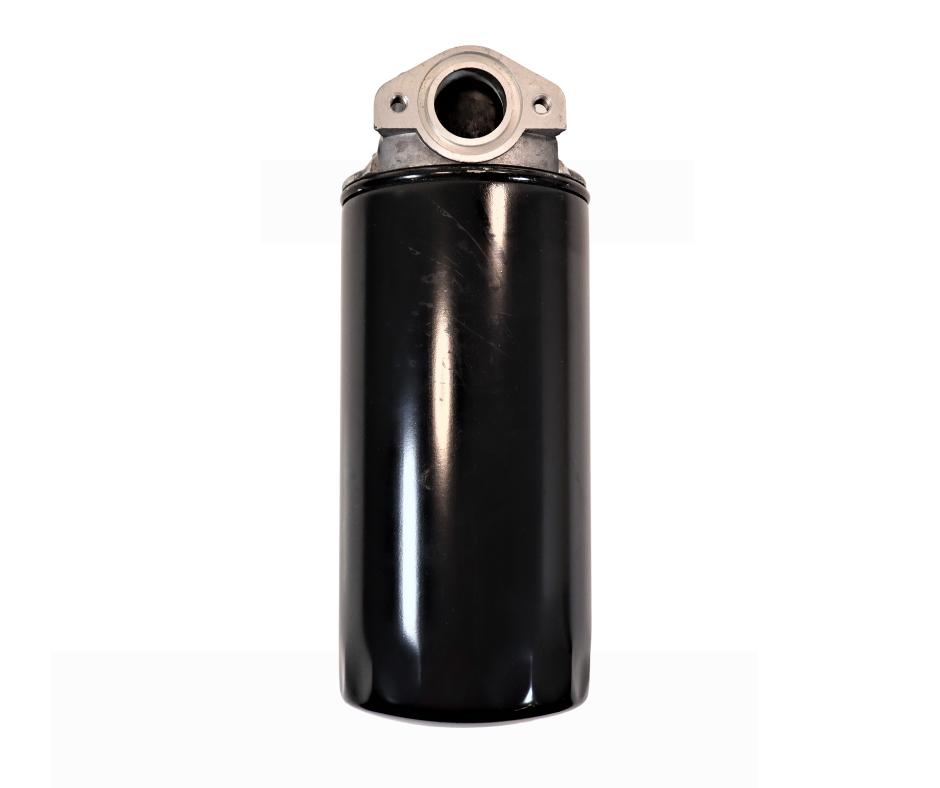

FILTER ASSEMBLY CONSISTS OF FILTER HEAD AND FILTER (000013231P04)
| PART NUMBER | DESCRIPTION | SERIES | MODEL | AGGREGATE | GROUP NO. | GROUP NAME | QTY USED ON TRACTOR | REF NO. |
| E000013231P04 | FILTER Suction Line Consists Of | 25 Series | 5525 2WD T2 | Hydraulics | 6P03160167 | HYDRAULIC SUCTION LINE (PART 1) | 1 | 6 |
| E000013231P04 | FILTER Suction Line Consists Of | 25 Series | 6025 2WD T2 | Hydraulics | 6P03160167 | HYDRAULIC SUCTION LINE (PART 1) | 1 | 6 |
| E000013231P04 | FILTER Suction Line Consists Of | 25 Series | 4025 2WD-T4 | Hydraulics | 40252WDHSL-1-08 | HYDRAULIC SUCTION LINE | 1 | 11 |
| E000013231P04 | FILTER Suction Line Consists Of | 30 Series | 4530 4WD T2 | Hydraulics & Three Point Linkages | 45304WD-HSLUPTO-1-09 | HYDRAULIC SUCTION LINE - UPTO USM 2292 | 1 | 6 |
| E000013231P04 | FILTER Suction Line Consists Of | 30 Series | 4530 4WD T2 | Hydraulics & Three Point Linkages | 45304WD-HSL1-FM2293 | HYDRAULIC SUCTION LINE (PART 1) - FROM USM 2293 | 1 | 6 |
| E000013231P04 | FILTER Suction Line Consists Of | 25 Series | 4525 2WD-T4 | Hydraulics | 45252WDHSL-1-08 | HYDRAULIC SUCTION LINE | 1 | 11 |
| E000013231P04 | FILTER Suction Line Consists Of | 30 Series | 4530 4WD-T4 | Hydraulics & Three Point Linkages | 45304-T4-HSL1-10 | HYDRAULIC SUCTION LINE (PART 1) | 1 | 5 |
| E000013231P04 | FILTER Suction Line Consists Of | 25 Series | 4025 4WD T4 | Hydraulics | '01_4025_0001_0131-M' | HYDRAULIC SUCTION LINE (PART 1) | 1 | 11 |
| E000013231P04 | FILTER Suction Line Consists Of | 4500 Series | 4540 4WD-T4 | Hydraulics & Three Point Linkages | 4540-HSL1-13 | HYDRAULIC SUCTION LINE (PART 1) | 1 | 11 |
| E000013231P04 | FILTER Suction Line Consists Of | 5500 Series | 5545 4WD-T4 Synchro | Hydraulics & Three Point Linkages | 5545S-HSL1-13 | HYDRAULIC SUCTION LINE (PART 1) | 1 | 5 |
| 000013231P04 | FILTER Suction Line Consists Of : | 20 Series | 5520 4WD | Hydraulics & 3-Point Linkages | 6P04120139 | PUMP AND SUCTION PIPES | 1 | 15 |
| 000013231P04 | FILTER Suction Line Consists Of : | 20 Series | 5520 2WD | Hydraulics & 3-Point Linkages | 6P04120139 | PUMP AND SUCTION PIPES | 1 | 15 |
| E000013231P04 | FILTER Suction Line Consists Of | 30 Series | 5530 4WD T2 | Hydraulic Pipes | 6P03180165 | HYDRAULIC SUCTION LINE | 1 | 6 |
| E000013231P04 | FILTER Suction Line Consists Of | 30 Series | 6030 4WD T2 | Hydraulic Pipes | 6P03180165 | HYDRAULIC SUCTION LINE | 1 | 6 |
| E000013231P04 | FILTER Suction Line Consists Of | 30 Series | 5530 2WD-T3 | Hydraulics | 5530HSL1-1-08 | HYDRAULIC SUCTION LINE 1 | 1 | 5 |
| E000013231P04 | FILTER Suction Line Consists Of | 30 Series | 5530 4WD-T3 | Hydraulics | 55304WDHSL1-1-08 | HYDRAULIC SUCTION LINE 1 | 1 | 5 |
| E000013231P04 | FILTER Suction Line Consists Of | 25 Series | 5525 2WD-T3 | Hydraulics | 55252WDHSL1-1-08 | HYDRAULIC SUCTION LINE 1 | 1 | 5 |
| E000013231P04 | FILTER Suction Line Consists Of | 30 Series | 5530 2WD-T3 (Synchro Shuttle) | Hydraulics | 55302-SS-HSL1-10 | HYDRAULIC SUCTION LINE (PART 1) | 1 | 5 |
| E000013231P04 | FILTER Suction Line Consists Of | 4500 Series | 4550 4WD-T4 | Hydraulics & Three Point Linkages | 45504WD-HSL1-13 | HYDRAULIC SUCTION LINE - PART 1 | 1 | 11 |
| E000013231P04 | FILTER Suction Line Consists Of | 4500 Series | 4550 2WD-T4 | Hydraulics | 50252-HSL-13 | HYDRAULIC SUCTION LINE | 1 | 11 |
| 000013231P04 | FILTER Suction Line Consists Of : | 20 Series | 6520 4WD | Hydraulics & 3-Point Link | 01280141 | PUMP AND SUCTION PIPES | 1 | 15 |
| 000013231P04 | FILTER Suction Line Consists Of : | 20 Series | 6520 2WD | Hydraulics & 3-Point Link | 01280141 | PUMP AND SUCTION PIPES | 1 | 15 |
| E000013231P04 | FILTER Suction Line Consists Of | 30 Series | 6530 4WD T2 | Hydraulics | 05_13_0155 | HYDRAULIC SUCTION LINE | 1 | 6 |
| E000013231P04 | FILTER Suction Line Consists Of | 30 Series | 6030 2WD-T3 | Hydraulics | 6030HSL1-1-08 | HYDRAULIC SUCTION LINE 1 | 1 | 5 |
| E000013231P04 | FILTER Suction Line Consists Of | 30 Series | 6530 2WD-T3 | Hydraulics | 6530HSL1-1-08 | HYDRAULIC SUCTION LINE 1 | 1 | 5 |
| E000013231P04 | FILTER Suction Line Consists Of | 30 Series | 6530 4WD-T3 | Hydraulics | 6530HSL1-1-08 | HYDRAULIC SUCTION LINE 1 | 1 | 5 |
| E000013231P04 | FILTER Suction Line Consists Of | 30 Series | 6030 4WD-T3 | Hydraulics | 60304WDHSL1-1-08 | HYDRAULIC SUCTION LINE 1 | 1 | 5 |
| E000013231P04 | FILTER Suction Line Consists Of | 25 Series | 6525 2WD-T3 | Hydraulics | 65252WDHSL1-1-08 | HYDRAULIC SUCTION LINE 1 | 1 | 5 |
| E000013231P04 | FILTER Suction Line Consists Of | 60 Series | 7060 4WD-T3 | Hydraulics & Three Point Linkages | 70604WD-PSP-1-08 | PUMP AND SUCTION PIPES | 1 | 15 |
| E000013231P04 | FILTER Suction Line Consists Of | 30 Series | 6530 2WD-T3 (Synchro Shuttle) | Hydraulics | 65302-SS-HSL1-10 | HYDRAULIC SUCTION LINE (PART 1) | 1 | 5 |
| E000013231P04 | FILTER Suction Line Consists Of | 60 Series | 7060 4WD Cabin | Hydraulics & Three Point Linkages | 7060C-P&SP-10 | PUMP AND SUCTION PIPES | 1 | 15 |
| E000013231P04 | FILTER Suction Line Consists Of | 4500 Series | 4565 2WD-T4 | Hydraulics | 65252WDT4-HSL1-13 | HYDRAULIC SUCTION LINE ( PART 1) | 1 | 5 |
| 000013231P04 | FILTER Suction Line Consists Of : | 20 Series | 7520 4WD | Hydraulics & 3-Point Linkages | 01_27_0141 | PUMP AND SUCTION PIPES | 1 | 15 |
| 000013231P04 | FILTER Suction Line Consists Of : | 20 Series | 7520 2WD | Hydraulics & 3-Point Linkages | 01_27_0141 | PUMP AND SUCTION PIPES | 1 | 15 |
| E000013231P04 | FILTER Suction Line Consists Of | 60 Series | 8560 2WD-T3 | Hydraulics & Three Point Linkage | 8560-2&4-PSP-1-08 | PUMP AND SUCTION PIPES | 1 | 15 |
| E000013231P04 | FILTER Suction Line Consists Of | 60 Series | 8560 4WD-T3 | Hydraulics & Three Point Linkage | 8560-2&4-PSP-1-08 | PUMP AND SUCTION PIPES | 1 | 15 |
| E000013231P04 | FILTER Suction Line Consists Of | 60 Series | 8560 4WD-T3 Cabin | Hydraulics & Three Point Linkages | 8560C-PSP-10 | PUMP AND SUCTION PIPES | 1 | 15 |
| E000013231P04 | FILTER Suction Line Consists Of | 4500 Series | 4540 2WD-T4 | Hydraulics | 4540_FIG56 | HYDRAULIC SUCTION LINE | 1 | 11 |
| 000013231P04 | FILTER Suction Line Consists Of : | 30 Series | QUICK REFERENCE | FILTER LIST | QRF-30 SERIES -4530 4WD T2 -FIG 101 | FILTER LIST - 4530 4WD T2 | 1 | 2 |
| 000013231P04 | FILTER Suction Line Consists Of : | FILTER LIST | 30 Series | 4530 4WD T2 | QRF-30 SERIES -4530 4WD T2 -FIG 101 | FILTER LIST - 4530 4WD T2 | 1 | 2 |
| 000013231P04 | FILTER Suction Line Consists Of : | 30 Series | QUICK REFERENCE | FILTER LIST | QRF-30 SERIES -4530 4WD-T4 -FIG 101 | FILTER LIST - 4530 4WD-T4 | 1 | 2 |
| 000013231P04 | FILTER Suction Line Consists Of : | FILTER LIST | 30 Series | 4530 4WD-T4 | QRF-30 SERIES -4530 4WD-T4 -FIG 101 | FILTER LIST - 4530 4WD-T4 | 1 | 2 |
| 000013231P04 | FILTER Suction Line Consists Of : | 30 Series | QUICK REFERENCE | FILTER LIST | QRF-30 SERIES -5530 4WD T2 -FIG 101 | FILTER LIST - 5530 4WD T2 | 1 | 2 |
| 000013231P04 | FILTER Suction Line Consists Of : | FILTER LIST | 30 Series | 5530 4WD T2 | QRF-30 SERIES -5530 4WD T2 -FIG 101 | FILTER LIST - 5530 4WD T2 | 1 | 2 |
| 000013231P04 | FILTER Suction Line Consists Of : | 30 Series | QUICK REFERENCE | FILTER LIST | QRF-30 SERIES -6030 4WD T2 -FIG 101 | FILTER LIST - 6030 4WD T2 | 1 | 2 |
| 000013231P04 | FILTER Suction Line Consists Of : | FILTER LIST | 30 Series | 6030 4WD T2 | QRF-30 SERIES -6030 4WD T2 -FIG 101 | FILTER LIST - 6030 4WD T2 | 1 | 2 |
| 000013231P04 | FILTER Suction Line Consists Of : | 30 Series | QUICK REFERENCE | FILTER LIST | QRF-30 SERIES -6530 4WD T2 -FIG 101 | FILTER LIST - 6530 4WD T2 | 1 | 2 |
| 000013231P04 | FILTER Suction Line Consists Of : | FILTER LIST | 30 Series | 6530 4WD T2 | QRF-30 SERIES -6530 4WD T2 -FIG 101 | FILTER LIST - 6530 4WD T2 | 1 | 2 |
| 000013231P04 | FILTER Suction Line Consists Of : | 5500 Series | QUICK REFERENCE | FILTER LIST | QRF-5500 SERIES -5545 4WD-T4 SYNCHRO -FIG 101 | FILTER LIST - 5545 4WD-T4 SYNCHRO | 1 | 2 |
| 000013231P04 | FILTER Suction Line Consists Of : | FILTER LIST | 5500 Series | 5545 4WD-T4 SYNCHRO | QRF-5500 SERIES -5545 4WD-T4 SYNCHRO -FIG 101 | FILTER LIST - 5545 4WD-T4 SYNCHRO | 1 | 2 |
