Mahindra Hydraulic Suction Filter Connection Hose 000704741R2 / 000704741R1 For 3505 E350 4505 4005 5005 475 485 575 3325 3525 05 And 25 Series Tractors

Was: $13.90

Now: $7.99

No reviews yet Write a Review

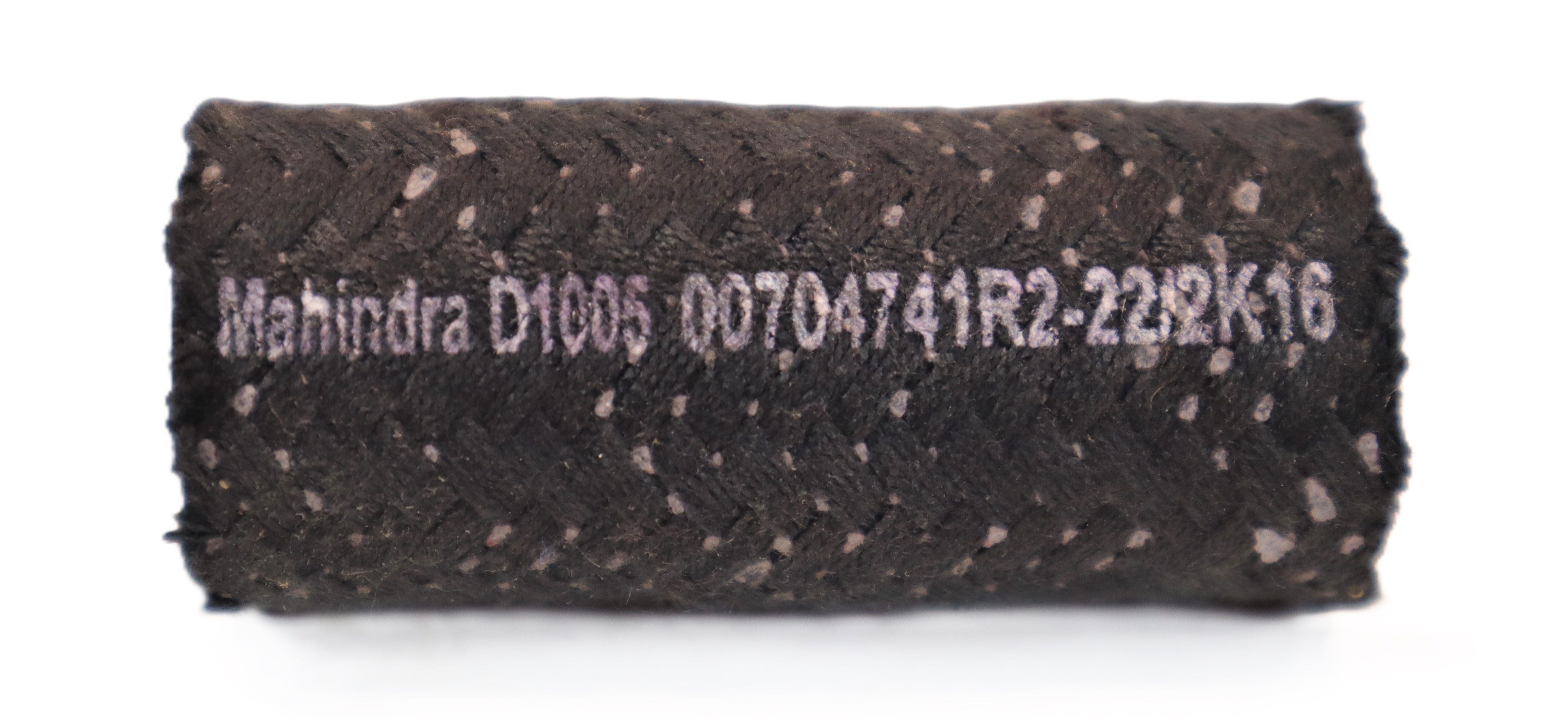

Mahindra hydraulic suction filter connection hose 000704741R2 and suction filter hose 000704741R1 for Mahindra 3505 E350 4505 4005 5005 475 485 575 3325 and 3525 tractors, used to connect the hydraulic suction filter to the hydraulic lift housing and suction pipe assembly so the pump can draw clean hydraulic oil.

SKU:: 000704741R2

Product Description
Specifications

PART NUMBER	DESCRIPTION	SERIES	MODEL	AGGREGATE	GROUP NO.	GROUP NAME

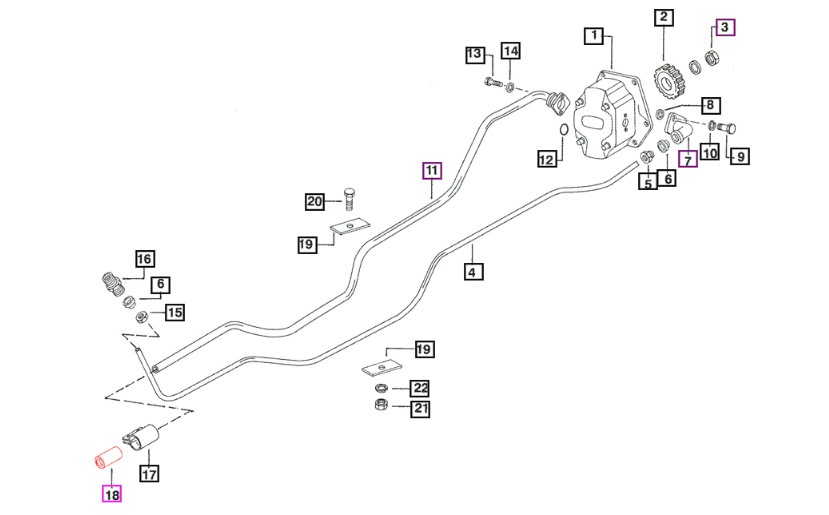

000704741R2	SUCTION FILTER CONNECTION HOSE	05 Series	3505	Hydraulics	01020349	HYDRAULIC PIPES - SUCTION & PRESSURE PIPES

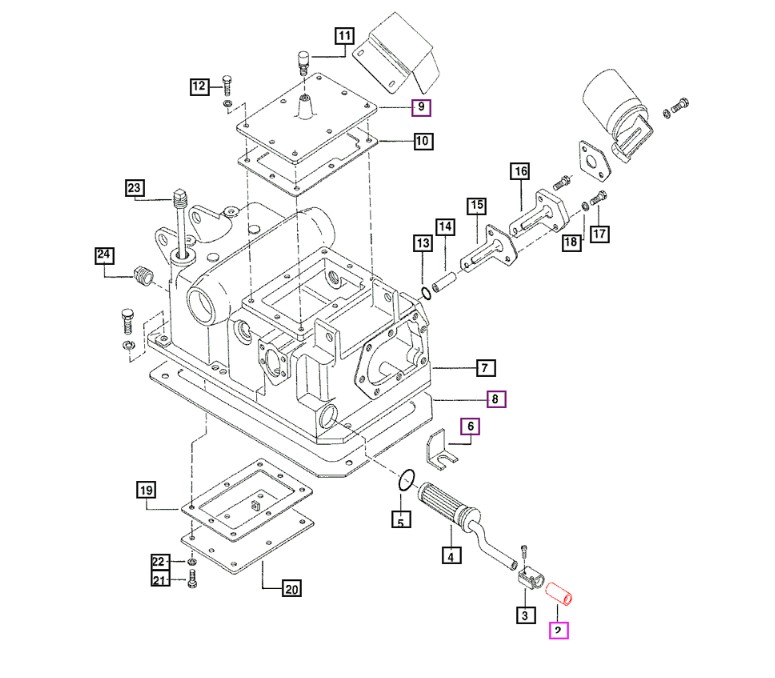

000704741R2	SUCTION FILTER CONNECTION HOSE	05 Series	3505	Hydraulics	01020351	HYDRAULIC LIFT HOUSING - (PART 1)
000704741R2	SUCTION FILTER CONNECTION HOSE	05 Series	E350	Hydraulics	01020351	HYDRAULIC LIFT HOUSING - (PART 1)
000704741R2	SUCTION FILTER CONNECTION HOSE	05 Series	4505	Hydraulics	01220321	HYDRAULIC PIPES - SUCTION, PRESSURE & AUXILIARY VALVE ASSEMBLY - (PART 2)
000704741R2	SUCTION FILTER CONNECTION HOSE	05 Series	5005	Hydraulics	01220321	HYDRAULIC PIPES - SUCTION, PRESSURE & AUXILIARY VALVE ASSEMBLY - (PART 2)
000704741R2	SUCTION FILTER CONNECTION HOSE	05 Series	4505	Hydraulics	01220325	HYDRAULIC LIFT HOUSING - (PART 1)
000704741R2	SUCTION FILTER CONNECTION HOSE	05 Series	C4005	Hydraulics	01220325	HYDRAULIC LIFT HOUSING - (PART 1)
000704741R2	SUCTION FILTER CONNECTION HOSE	05 Series	5005	Hydraulics	01220325	HYDRAULIC LIFT HOUSING - (PART 1)
000704741R2	SUCTION FILTER CONNECTION HOSE	05 Series	C4005	Hydraulics	01220317	HYDRAULIC PIPES - SUCTION & PRESSURE PIPES
000704741R2	SUCTION FILTER CONNECTION HOSE	05 Series	E350	Hydraulics	01020347	HYDRAULIC PIPES - SUCTION & PRESSURE PIPES
000704741R2	SUCTION FILTER CONNECTION HOSE	05 Series Old Tractors	475 DI/E40	Hydraulics	475-GLH-1-09	HYDRAULIC LIFT HOUSING
000704741R2	SUCTION FILTER CONNECTION HOSE	05 Series Old Tractors	485 DI	Hydraulics	485-HLH-1-09	HYDRAULIC LIFT HOUSING
000704741R2	SUCTION FILTER CONNECTION HOSE	05 Series Old Tractors	575 DI	Hydraulics	575-HLH-1-09	HYDRAULIC LIFT HOUSING
000704741R2	SUCTION FILTER CONNECTION HOSE	25 Series	3525 2WD T2	Hydraulics	01130227	HYDRAULIC PIPES - SUCTION & PRESSURE PIPES

PART NUMBER	DESCRIPTION	SERIES	MODEL	AGGREGATE	GROUP NO.	GROUP NAME
000704741R1	HOSE SUCTION FILTER HYD. HSG.	25 Series	3325 2WD T2	Hydraulics	01130225	HYDRAULIC PIPES - SUCTION & PRESSURE PIPES
000704741R1	HOSE SUCTION FILTER HYD. HSG.	25 Series	3325 2WD T2	Hydraulics	01130229	HYDRAULIC LIFT HOUSING (PART 1)
000704741R1	HOSE SUCTION FILTER HYD. HSG.	25 Series	3525 2WD T2	Hydraulics	01130229	HYDRAULIC LIFT HOUSING (PART 1)

cdk-part-number:: 000704741R2

Section:: HYDRAULIC

Section:: HYDRAULIC HOSE

Model:: 475

Model:: 485

Model:: 575

Model:: E350

Model:: 3505

Model:: 3325

Model:: 3525

Model:: 4005

Model:: 4505

Model:: 5005
