Mahindra Clip Spring 000050620D02 Alt 000702631R1 – 05 25 30 35 3500 3600 4500 5500 6000 60 mPower

Was: $7.11
Now: $4.99
No reviews yet Write a Review

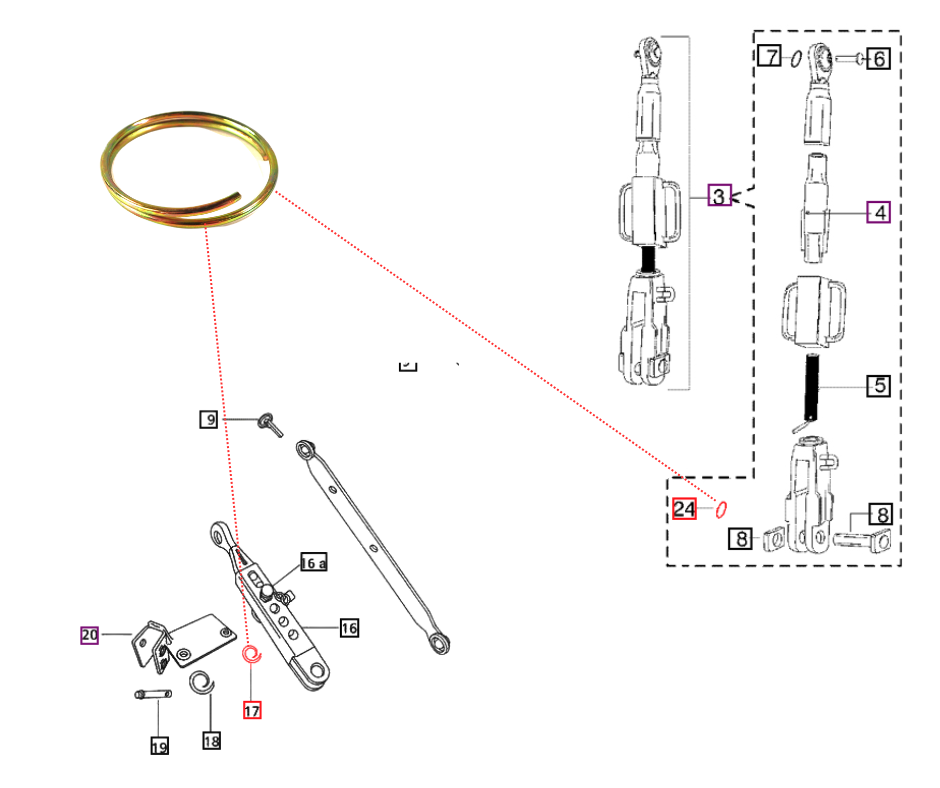

Mahindra clip spring 000050620D02 is a retaining clip used primarily in hydraulics three point linkage groups on many tractors, including 05 Series 4505, C4005, 5005, 485 DI and 575 DI, 25 Series 3825, 4025, 4525, 5525, 6025 and 6525, 30 Series 4530, 5530, 6030 and 6530, and 35, 3500, 3600 and 4500 Series 3535, 4035, 4535, 5035, 3540, 3550, 3640, 3650, 4540, 4550 and 4565 models where multiple clips are often used per linkage assembly. Additional applications include 5500 Series 5545, 5555, 5565 and 5570 tractors, 6000 Series 6065 and 6075 4WD cabin and Tier 4 refresh models in both three point linkage hydraulics and foot step assemblies, plus 60 Series 7060, 8560 and mPower 75P and 85P cabins in fuel tank and battery mounting groups where a single clip spring is used. Alternate part 000702631R1 is another clip spring specified in three point linkage groups on 05 Series 4505, C4005 and 5005, as well as 05 Series old 475 DI/E40 tractors, serving the same clip spring function in those specific hydraulic linkages.
SKU:
000050620D02
PART NUMBER DESCRIPTION SERIES MODEL AGGREGATE GROUP NAME QTY
000050620D02 CLIP Spring 05 Series 4505 Hydraulics THREE POINT LINKAGE - (PART 5) 4
000050620D02 CLIP Spring 05 Series C4005 Hydraulics THREE POINT LINKAGE - (PART 5) 4
000050620D02 CLIP Spring 05 Series 5005 Hydraulics THREE POINT LINKAGE - (PART 5) 4
000050620D02 CLIP Spring 05 Series Old Tractors 485 DI Hydraulics THREE POINT LINKAGE 2
000050620D02 CLIP Spring 25 Series 5525 2WD T2 Hydraulics THREE POINT LINKAGES 4
000050620D02 CLIP Spring 25 Series 6025 2WD T2 Hydraulics THREE POINT LINKAGES 4
000050620D02 CLIP Spring 25 Series 3825 2WD-T4 Hydraulics THREE POINT LINKAGE 4
000050620D02 CLIP Spring 25 Series 4025 2WD-T4 Hydraulics THREE POINT LINKAGE 4
000050620D02 CLIP Spring 35 Series 3535 Gear Hydraulics THREE POINT LINKAGES (PART 1) 6
000050620D02 CLIP Spring 00 Series 4500 4WD Hydraulics THREE POINT LINKAGES (JUG & COLLAR) 2
000050620D02 CLIP Spring 00 Series 4500 2WD Hydraulics THREE POINT LINKAGES (PART 2) 2
000050620D02 CLIP Spring 30 Series 4530 4WD T2 Hydraulics & Three Point Linkages THREE POINT LINKAGES (PART 2) 2
000050620D02 CLIP Spring 05 Series Old Tractors 575 DI Hydraulics THREE POINT LINKAGE 2
000050620D02 CLIP Spring 25 Series 4525 2WD-T4 Hydraulics THREE POINT LINKAGE 2
000050620D02 CLIP Spring 35 Series 4035 Gear Hydraulics THREE POINT LINKAGES (PART 1) 6
000050620D02 CLIP Spring 35 Series 4535 Gear Hydraulics THREE POINT LINKAGES - (PART 1) 6
000050620D02 CLIP Spring 30 Series 4530 4WD-T4 Hydraulics & Three Point Linkages THREE POINT LINKAGES (PART 1) 2
000050620D02 CLIP Spring 35 Series 4035 HST Hydraulics THREE POINT LINKAGES (PART 1) 6
000050620D02 CLIP Spring 35 Series 4035 PST Hydraulics THREE POINT LINKAGES (PART 1) 6
000050620D02 CLIP Spring 25 Series 4025 4WD T4 Hydraulics THREE POINT LINKAGE 4
000050620D02 CLIP Spring 3500 Series 3540 PST T4 Hydraulics THREE POINT LINKAGES (PART 1) 6
000050620D02 CLIP Spring 4500 Series 4540 4WD-T4 Hydraulics & Three Point Linkages THREE POINT LINKAGE 4
000050620D02 CLIP Spring 5500 Series 5545 4WD-T4 Synchro Hydraulics & Three Point Linkages THREE POINT LINKAGES (PART 1) 2
000050620D02 CLIP Spring 00 Series 5500 4WD Hydraulics THREE POINT LINKAGES (JUG & COLLAR) 2
000050620D02 CLIP Spring 00 Series 6000 4WD Hydraulics THREE POINT LINKAGES (JUG & COLLAR) 2
000050620D02 CLIP Spring 00 Series 6500 4WD Hydraulics THREE POINT LINKAGES (JUG & COLLAR) 2
000050620D02 CLIP Spring 00 Series 5500 2WD Hydraulics THREE POINT LINKAGES (PART 2) 2
000050620D02 CLIP Spring 00 Series 6000 2WD Hydraulics THREE POINT LINKAGES (PART 2) 2
000050620D02 CLIP Spring 00 Series 6500 2WD Hydraulics THREE POINT LINKAGES (PART 2) 2
000050620D02 CLIP Spring 30 Series 5530 4WD T2 Three Point Linkages THREE POINT LINKAGES (PART 2) 2
000050620D02 CLIP Spring 30 Series 6030 4WD T2 Three Point Linkages THREE POINT LINKAGES (PART 2) 2
000050620D02 CLIP Spring 30 Series 5530 2WD-T3 Hydraulics THREE POINT LINKAGES 2 2
000050620D02 CLIP Spring 30 Series 5530 4WD-T3 Hydraulics THREE POINT LINKAGES 2 2
000050620D02 CLIP Spring 25 Series 5525 2WD-T3 Hydraulics THREE POINT LINKAGES 4
000050620D02 CLIP Spring 35 Series 5035 Gear Hydraulics THREE POINT LINKAGES - (PART 1) 6
000050620D02 CLIP Spring 35 Series 5035 HST Hydraulics THREE POINT LINKAGES (PART 1) 6
000050620D02 CLIP Spring 30 Series 5530 2WD-T3 (Synchro Shuttle) Hydraulics THREE POINT LINKAGES (PART 2) 2
000050620D02 CLIP Spring 35 Series 5035 PST Hydraulics THREE POINT LINKAGES (PART 1) 6
000050620D02 CLIP Spring 3500 Series 3550 HST T4 Hydraulics THREE POINT LINKAGES (PART 1) 6
000050620D02 CLIP Spring 4500 Series 4550 4WD-T4 Hydraulics & Three Point Linkages THREE POINT LINKAGE 4
000050620D02 CLIP Spring 30 Series 6530 4WD T2 Hydraulics THREE POINT LINKAGES 2
000050620D02 CLIP Spring 30 Series 6030 2WD-T3 Hydraulics THREE POINT LINKAGES 2 2
000050620D02 CLIP Spring 30 Series 6530 2WD-T3 Hydraulics THREE POINT LINKAGES 2 2
000050620D02 CLIP Spring 30 Series 6530 4WD-T3 Hydraulics THREE POINT LINKAGES 2 2
000050620D02 CLIP Spring 30 Series 6030 4WD-T3 Hydraulics THREE POINT LINKAGES 2 2
000050620D02 CLIP Spring 25 Series 6525 2WD-T3 Hydraulics THREE POINT LINKAGES 4
000050620D02 CLIP Spring 30 Series 6530 2WD-T3 (Synchro Shuttle) Hydraulics THREE POINT LINKAGES (PART 2) 2
000050620D02 CLIP Spring 60 Series 7060 4WD Cabin Sheet Metal & Electricals FUEL TANK AND BATTERY MOUNTING (PART 2) 1
000050620D02 CLIP Spring 5500 Series 5565 4WD-T4 Synchro Hydraulics THREE POINT LINKAGES - PART 2 2
000050620D02 CLIP Spring mPower 75 Series mPower 75P (4WD Cabin T4) Sheet Metal & Electricals FUEL TANK AND BATTERY MOUNTING (PART 2) 1
000050620D02 CLIP Spring 60 Series 8560 4WD-T3 Cabin Sheet Metal & Electricals FUEL TANK AND BATTERY MOUNTING (PART 2) 1
000050620D02 CLIP Spring mPower 85 Series mPower 85P (4WD Cabin T4) Sheet Metal & Electricals FUEL TANK AND BATTERY MOUNTING 2 1
000050620D02 CLIP Spring 3500 Series 3550 PST T4 Hydraulics THREE POINT LINKAGES (PART 1) 6
000050620D02 CLIP Spring 3500 Series 3540 HST T4 Hydraulics THREE POINT LINKAGES (PART 1) 2
000050620D02 CLIP Spring 4500 Series 4550 4WD-T4 Hydraulics & Three Point Linkages THREE POINT LINKAGE 4
000050620D02 CLIP Spring 4500 Series 4565 2WD-T4 Hydraulics THREE POINT LINKAGES 4
000050620D02 CLIP Spring 4500 Series 4550 2WD-T4 Hydraulics THREE POINT LINKAGE 4
000050620D02 CLIP Spring 5500 Series 5555 2WD-T4 Synchro Hydraulics THREE POINT LINKAGES (PART 2) 2
000050620D02 CLIP Spring 5500 Series 5555 4WD-T4 Synchro Hydraulics THREE POINT LINKAGES (PART 2) 2
000050620D02 CLIP Spring 5500 Series 5565 4WD-T4 Synchro Hydraulics THREE POINT LINKAGES (PART 2) 2
000050620D02 CLIP Spring 5500 Series 5565 2WD-T4 Synchro Hydraulics THREE POINT LINKAGES (PART 2) 2
000050620D02 CLIP Spring 3500 Series 3540 HST Cabin T4 Hydraulics THREE POINT LINKAGES 6
000050620D02 CLIP Spring 3500 Series 3550 HST Cabin T4 Hydraulics THREE POINT LINKAGES 6
000050620D02 CLIP Spring 3500 Series 3540 HST Cabin T4 Sheet Metal & Electricals FUEL TANK(PART 3) 1
000050620D02 CLIP Spring 3500 Series 3550 HST Cabin T4 Sheet Metal & Electricals FUEL TANK(PART 3) 1
000050620D02 CLIP Spring 3500 Series 3540 PST Cabin T4 Hydraulics THREE POINT LINKAGES (PART 1 ) 6
000050620D02 CLIP Spring 3500 Series 3550 PST Cabin T4 Hydraulics THREE POINT LINKAGES (PART 1 ) 6
000050620D02 CLIP Spring 3500 Series 3540 PST Cabin T4 SHEET METAL &ELECTRICALS FUEL TANK (PART 3 ) 1
000050620D02 CLIP Spring 3500 Series 3550 PST Cabin T4 SHEET METAL &ELECTRICALS FUEL TANK (PART 3 ) 1
000050620D02 CLIP Spring 4500 Series 4540 2WD-T4 Hydraulics THREE POINT LINKAGE 4
000050620D02 CLIP Spring 5500 Series 5570 2WD-T4 Synchro Hydraulics THREE POINT LINKAGES PART 2 2
000050620D02 CLIP Spring 5500 Series 5570 4WD-T4 Synchro Hydraulics THREE POINT LINKAGES PART 2 2
000050620D02 CLIP Spring 3600 Series 3640 HST T4 Hydraulics THREE POINT LINKAGES 6
000050620D02 CLIP Spring 3600 Series 3650 HST T4 Hydraulics THREE POINT LINKAGES 6
000050620D02 CLIP Spring 3600 Series 3650 HST Cabin T4 Hydraulics THREE POINT LINKAGES 6
000050620D02 CLIP Spring 3600 Series 3640 HST Cabin T4 Hydraulics THREE POINT LINKAGES 6
000050620D02 CLIP Spring 3600 Series 3650 HST Cabin T4 Sheet Metal & Electricals FUEL TANK PART 3 1
000050620D02 CLIP Spring 3600 Series 3640 HST Cabin T4 Sheet Metal & Electricals FUEL TANK PART 3 1
000050620D02 CLIP Spring 3600 Series 3640 PST Cabin T4 Hydraulics THREE POINT LINKAGES 6
000050620D02 CLIP Spring 3600 Series 3650 PST Cabin T4 Hydraulics THREE POINT LINKAGES 6
000050620D02 CLIP Spring 3600 Series 3640 PST Cabin T4 Sheet Metal & Electricals FUEL TANK PART 3 1
000050620D02 CLIP Spring 3600 Series 3650 PST Cabin T4 Sheet Metal & Electricals FUEL TANK PART 3 1
000050620D02 CLIP Spring 3600 Series 3640 PST T4 Hydraulics THREE POINT LINKAGES 6
000050620D02 CLIP Spring 3600 Series 3650 PST T4 Hydraulics THREE POINT LINKAGES 6
000050620D02 CLIP Spring 6000 Series 6065 4WD CABIN Sheet Metal FOOT STEP ASSEMBLY 1
000050620D02 CLIP Spring 6000 Series 6065 4WD CABIN Hydraulics THREE POINT LINKAGES 2
000050620D02 CLIP Spring 6000 Series 6075 4WD CABIN Sheet Metal FOOT STEP ASSEMBLY 1
000050620D02 CLIP Spring 6000 Series 6075 4WD CABIN Hydraulics THREE POINT LINKAGES 2
000050620D02 CLIP Spring 6000 Series 6065 4WD CABIN REFRESH TIER-4 (SN:MPRC 0311) Sheet Metal FOOT STEP ASSEMBLY 1
000050620D02 CLIP Spring 6000 Series 6075 4WD CABIN REFRESH TIER-4 (SN:MURC 0666) Sheet Metal FOOT STEP ASSEMBLY 1
000050620D02 CLIP Spring 6000 Series 6065 4WD CABIN REFRESH TIER-4 (SN:MPRC 0311) Hydraulics THREE POINT LINKAGES 2
000050620D02 CLIP Spring 6000 Series 6075 4WD CABIN REFRESH TIER-4 (SN:MURC 0666) Hydraulics THREE POINT LINKAGES 2

*** ALT PART #000702631R1 ***

PART NUMBER DESCRIPTION SERIES MODEL AGGREGATE GROUP NAME QTY
000702631R1 CLIP Spring 05 Series 4505 Hydraulics THREE POINT LINKAGE - (PART 3) 2
000702631R1 CLIP Spring 05 Series Old Tractors 475 DI/E40 Hydraulics THREE POINT LINKAGE 0
000702631R1 CLIP Spring 05 Series C4005 Hydraulics THREE POINT LINKAGE - (PART 3) 2
000702631R1 CLIP Spring 05 Series 5005 Hydraulics THREE POINT LINKAGE - (PART 3) 2
