MAHINDRA

Mahindra Front Axle Bushing 07961045250 – Fits 2015 4WD, 2216, Max 22/24/25 & Max 25 XL HST

Was: $43.50

Now: $34.99

No reviews yet Write a Review

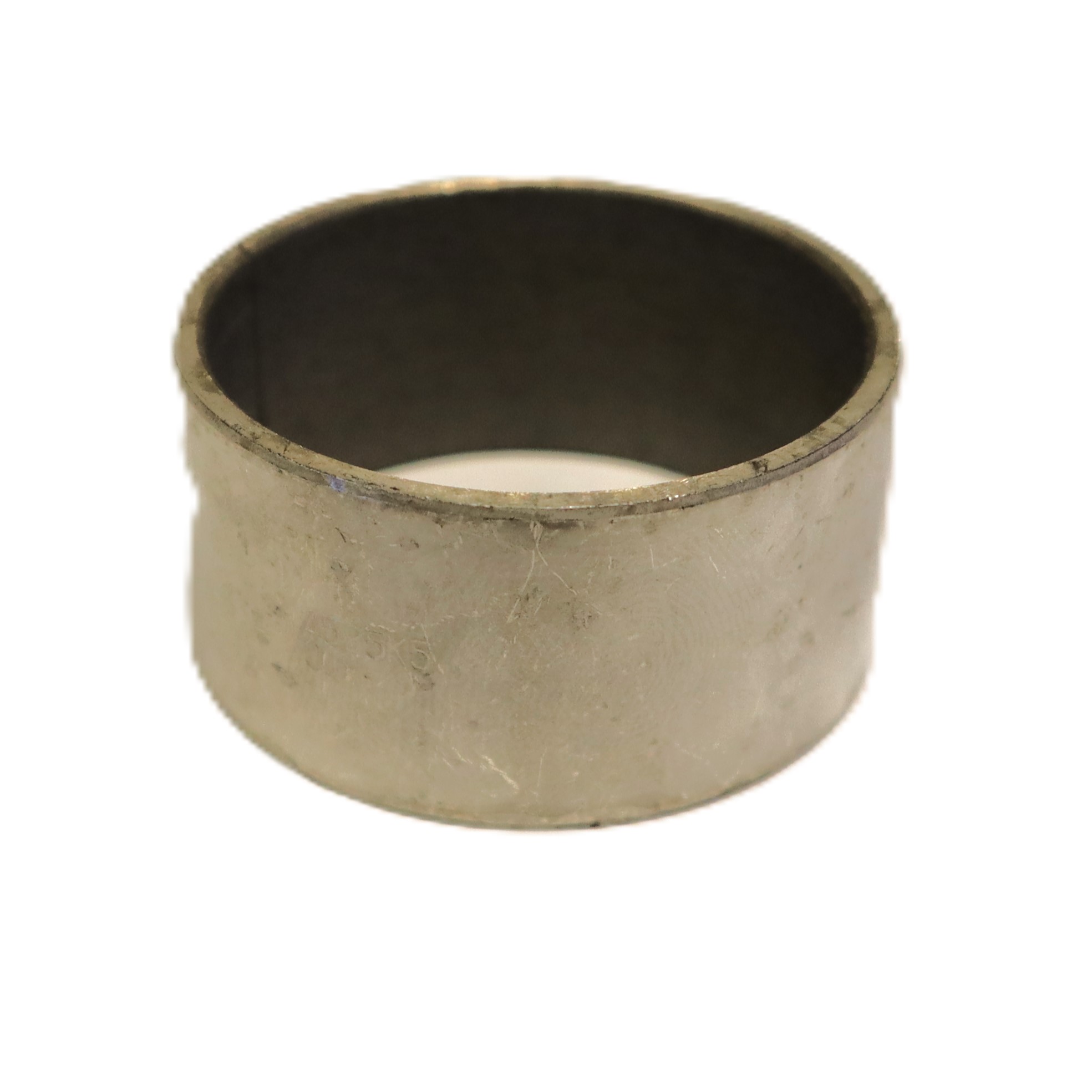

Mahindra front axle bushing 07961045250 shown as a cylindrical metal sleeve bushing that supports the front axle pivot/kingpin on 2015, 2216 and Max series compact tractors.

SKU:: 07961045250

Product Description
Specifications

PART NUMBER	DESCRIPTION	SERIES	MODEL	AGGREGATE	GROUP NO.	GROUP NAME	QTY USED ON TRACTOR	REF NO.
07961045250	Bushing	15 Series	2015 Gear 4WD	Chassis	01150077	FRONT AXLE MFD (3/3)	2	10
07961045250	Bushing	15 Series	2015 HST 4WD	Chassis	01120025	FRONT AXLE MFD (3/3)	2	10
07961045250	Bushing	16 Series	2216 Gear	Chassis	2216GCFAMFD3-1-08	FRONT AXLE MFD (3/3)	2	10
07961045250	Bushing	16 Series	2216 HST	Chassis	2216H-FA3-1-08	FRONT AXLE MFD (3/3)	2	10
07961045250	Bushing	Max Series	Max 22 HST	Steering	'01_MAX22_0001_0075-M'	FRONT AXLE (4/7)	2	16
07961045250	Bushing	Max Series	Max 25 HST	Steering	25MAX-FRAX4-14	FRONT AXLE (4/7)	2	16
07961045250	Bushing	Max (T4 Series)	Max 24 HST	Steering	MAX 24 HST_FIG 74	FRONT AXLE (4/7)	2	16
07961045250	Bushing	Max XL Series	Max 25 XL HST	Axle Brake	MAX 25 XL HST_FIG.504	FRONT AXLE (4/7)	2	16

cdk-part-number:: 07961045250

Model:: 2015

Section:: FRONT AXLE

Model:: 2216

Model:: MAX24

Model:: MAX25
