MAHINDRA

Mahindra Front Axle Main Drive Shaft 19024200011 For mForce 100 105 And mForce105XL

Was: $300.32

Now: $269.99

No reviews yet Write a Review

Mahindra front axle main drive shaft 19024200011 D=30 for mForce 100 mForce 105 and mForce105XL tractor front drive shaft assembly, with couplers sold separately.

SKU:: 19024200011

Product Description
Specifications

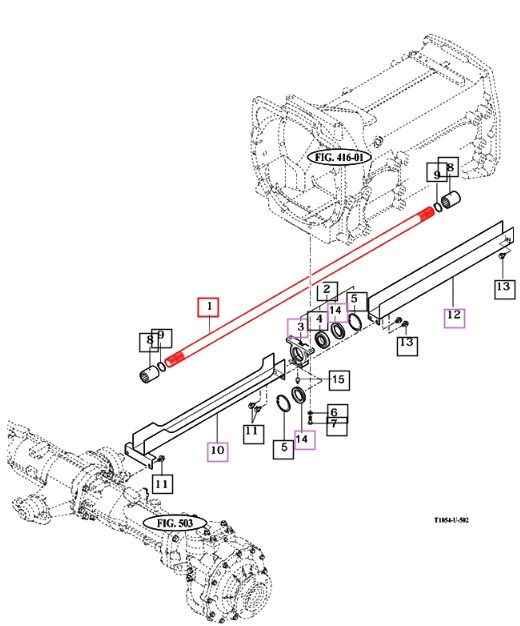

MAIN DRIVE SHAFT FOR FRONT AXLE FOR MFORCE 100 & MFORCE 105 MAHINDRA TRACTORS (ITEM #1) *** COUPLERS FOR DRIVE SHAFT ARE SOLD SEPERATLY ***

PART NUMBER	DESCRIPTION	SERIES	MODEL	AGGREGATE	GROUP NO.	GROUP NAME
19024200011	SHAFT, FR Axle Drive D=30	mForce 105 Series	mForce 105(P)remium Cabin	Front Axle, Supporter & Drive Shaft	MFORCE 105(P)_FIG 502	FRONT DRIVE SHAFT
19024200011	SHAFT, FR Axle Drive D=30	mForce 105 Series	mForce 105(S)tandard Cabin	Front Axle, Supporter & Drive Shaft	MFORCE 105(S)_FIG 502	FRONT DRIVE SHAFT
19024200011	SHAFT, FR Axle Drive D=30	mForce105XL Series	mForce105XL-S	Front Axle, Supporter and Drive Shaft	M105XL-S_FIG 502	FRONT DRIVE SHAFT
19024200011	SHAFT, FR Axle Drive D=30	mForce105XL Series	mForce105XL-P	Front Axle, Supporter and Drive Shaft	M105XL-P_FIG 502	FRONT DRIVE SHAFT
19024200011	SHAFT, FR Axle Drive D=30	mForce 100 Series	mForce 100 (P)remium Cabin	Chassis	100P-FIG. 502	FRONT DRIVE SHAFT
19024200011	SHAFT, FR Axle Drive D=30	mForce 100 Series	mForce 100 (S)tandard Cabin	Chassis	100S-FIG. 502	FRONT DRIVE SHAFT

cdk-part-number:: 19024200011

Model:: MFORCE 100

Model:: MFORCE 105

Section:: FRONT AXLE
