Mahindra Front Worklamp Assembly LH/RH – H07706847K91 Or H07706877K91 – 1100 & 2100 Series - Choose Your Side

Was: $96.41

Now: $84.99

No reviews yet Write a Review

Mahindra front worklamp assemblies H07706847K91 (left‑hand) and H07706877K91 (right‑hand) for 1120, 1123, 1126 and 2123/2126 tractors, individual OEM lights mounted at the front of the cab or ROPS to illuminate the work area.

Current Stock:

SKU:: H07706847K91-H0

Product Description
Specifications

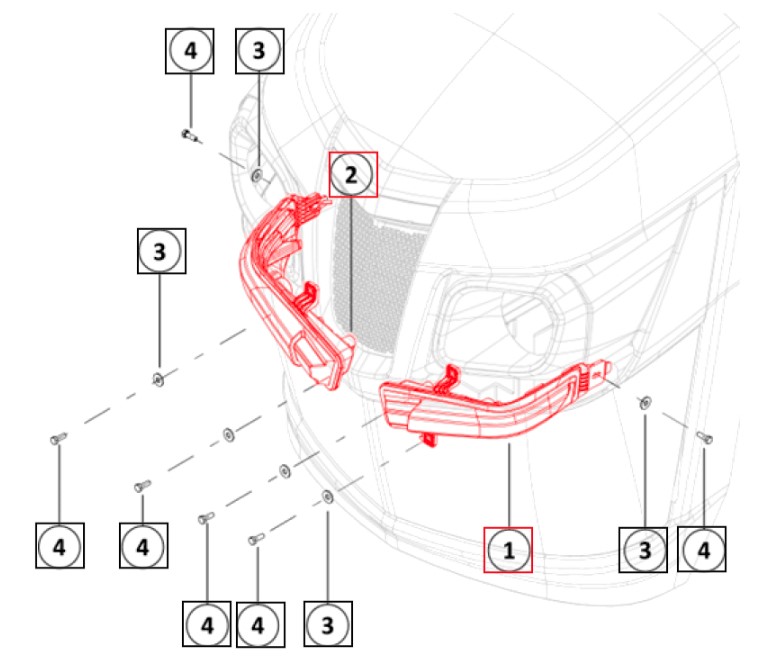

WORKLAMP ASSEMBLY FOR 1100 & 2100 SERIES

*** SOLD PER EACH - PICK WHICH SIDE FROM DRIVER'S SEAT ***

LH SIDE - H07706847K91 - ITEM #1

OR

RH SIDE - H07706877K91 - ITEM #2

PART NUMBER	DESCRIPTION	SERIES	MODEL	AGGREGATE	GROUP NO.	GROUP NAME
H07706847K91	WORKLAMP FRONT LH	1100 SERIES	1120 HST SUB-COMPACT CABIN	Electrical	OJA SC CABIN_FIG 10	WORK LAMP ASSY
H07706847K91	WORKLAMP FRONT LH	1100 SERIES	1126 HST SUB-COMPACT CABIN	Electrical	OJA SC CABIN_FIG 10	WORK LAMP ASSY
H07706847K91	WORKLAMP FRONT LH	2100 SERIES	2123 HST COMPACT OS	Electrical	2100 SERIES COMPACT OS_FIG 10	WORK LAMP ASSY
H07706847K91	WORKLAMP FRONT LH	2100 SERIES	2126 HST COMPACT OS	Electrical	2100 SERIES COMPACT OS_FIG 10	WORK LAMP ASSY
H07706847K91	WORKLAMP FRONT LH	1100 SERIES	1120 HST SUB-COMPACT OS	Electrical	1100 SERIES SC OS_FIG 10	WORK LAMP ASSY
H07706847K91	WORKLAMP FRONT LH	1100 SERIES	1126 HST SUB-COMPACT OS	Electrical	1100 SERIES SC OS_FIG 10	WORK LAMP ASSY
H07706847K91	WORKLAMP FRONT LH	1100 SERIES	1123 HST SUB-COMPACT OS	Electrical	1123 HST SC OS_FIG 10	WORK LAMP ASSY
H07706847K91	WORKLAMP FRONT LH	1100 SERIES	1123 HST SUB-COMPACT CABIN	Electrical	1123 HST SC CABIN_FIG 10	WORK LAMP ASSY
H07706847K91	WORKLAMP FRONT LH	2100 SERIES	2126 HST Compact Cabin (KN35) – EDDC Variant	Electrical	2126 HST COMPACT CABIN KN35_FIG 163	WORK LAMP ASSY
H07706847K91	WORKLAMP FRONT LH	2100 SERIES	2126 HST Compact Cabin (KN53) – Mechanical Hitch Variant	Electrical	2126 HST COMPACT CABIN KN53_FIG 146	WORK LAMP ASSY

PART NUMBER	DESCRIPTION	SERIES	MODEL	AGGREGATE	GROUP NO.	GROUP NAME
H07706877K91	WORKLAMP FRONT RH	1100 SERIES	1120 HST SUB-COMPACT CABIN	Electrical	OJA SC CABIN_FIG 10	WORK LAMP ASSY
H07706877K91	WORKLAMP FRONT RH	1100 SERIES	1126 HST SUB-COMPACT CABIN	Electrical	OJA SC CABIN_FIG 10	WORK LAMP ASSY
H07706877K91	WORKLAMP FRONT RH	2100 SERIES	2123 HST COMPACT OS	Electrical	2100 SERIES COMPACT OS_FIG 10	WORK LAMP ASSY
H07706877K91	WORKLAMP FRONT RH	2100 SERIES	2126 HST COMPACT OS	Electrical	2100 SERIES COMPACT OS_FIG 10	WORK LAMP ASSY
H07706877K91	WORKLAMP FRONT RH	1100 SERIES	1120 HST SUB-COMPACT OS	Electrical	1100 SERIES SC OS_FIG 10	WORK LAMP ASSY
H07706877K91	WORKLAMP FRONT RH	1100 SERIES	1126 HST SUB-COMPACT OS	Electrical	1100 SERIES SC OS_FIG 10	WORK LAMP ASSY
H07706877K91	WORKLAMP FRONT RH	1100 SERIES	1123 HST SUB-COMPACT OS	Electrical	1123 HST SC OS_FIG 10	WORK LAMP ASSY
H07706877K91	WORKLAMP FRONT RH	1100 SERIES	1123 HST SUB-COMPACT CABIN	Electrical	1123 HST SC CABIN_FIG 10	WORK LAMP ASSY
H07706877K91	WORKLAMP FRONT RH	2100 SERIES	2126 HST Compact Cabin (KN35) – EDDC Variant	Electrical	2126 HST COMPACT CABIN KN35_FIG 163	WORK LAMP ASSY
H07706877K91	WORKLAMP FRONT RH	2100 SERIES	2126 HST Compact Cabin (KN53) – Mechanical Hitch Variant	Electrical	2126 HST COMPACT CABIN KN53_FIG 146	WORK LAMP ASSY

cdk-part-number:: H07706847K91

Section:: LIGHTS

Section:: ELECTRICAL

Model:: 1120

Model:: 1123

Model:: 1126

Model:: 2123

Model:: 2126
