| PART NUMBER |
DESCRIPTION |
SERIES |
MODEL |
AGGREGATE |
GROUP NO. |
GROUP NAME |
| MM514045 |

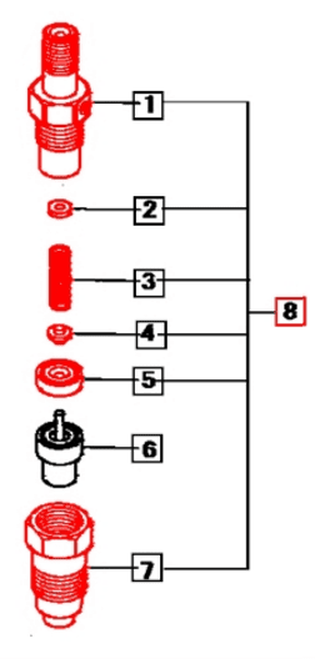

HOLDER Assy contains parts 1 - 6 |
1500 Series |
1526 Gear 4WD T4 |
Engine |
1526 GEAR -FIG.111 |
NOZZLE & NOZZLE HOLDER |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
1500 Series |
1526 HST 4WD T4 |
Engine |
1526 HST -FIG.111 |
NOZZLE & NOZZLE HOLDER |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
1500 Series |
1526 HST 4WD T4 |
Fast Moving Parts List |
FMPL 1526 HST-FIG 01 |
FAST MOVING PARTS LIST |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
1500 Series |
1526 Gear 4WD T4 |
Fast Moving Parts List |
FMPL 1526 GEAR-FIG 01 |
FAST MOVING PARTS LIST |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
16 Series |
2816 Gear |
Engine |
2816GNNH-1-08 |
NOZZLE & NOZZLE HOLDER |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
16 Series |
2816 HST 4WD |
Engine |
2816HNNH-1-08 |
NOZZLE & NOZZLE HOLDER |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
16 Series |
2516 Gear |
Engine |
2516GNH-1-08 |
NOZZLE & HOLDER |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
16 Series |
2516 HST |
Engine |
2516HNH-1-08 |
NOZZLE & HOLDER |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
16 Series |
2216 Gear |
Engine |
2216GENH-1-08 |
NOZZLE & NOZZLE HOLDER |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
16 Series |
2216 HST |
Engine |
2216H-NNH-1-08 |
NOZZLE & NOZZLE HOLDER |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
16 Series |
3016 Gear |
Engine (S3L2-Y315R) |
3016G-N&NH-10 |
NOZZLE & NOZZLE HOLDER |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
16 Series |
3016 HST |
Engine |
3016H-N&NH-10 |
NOZZLE & NOZZLE HOLDER |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
1600 Series |
1626 HST |
ENGINE (S3L2-W415RH) |
1626 HST_FIG 123 |
FUEL SYSTEM (NOZZLE ASSY) |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
1600 Series |
1626 Gear |
ENGINE (S3L2-W415RH) |
1626 GEAR_FIG 123 |
FUEL SYSTEM (NOZZLE ASSY) |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
1600 Series |
1626 HST Refresh |
ENGINE(S3L2-W415RH) |
1626 HST REFRESH_FIG 123 |
FUEL SYSTEM (NOZZLE ASSY) |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
1600 Series |
1626 Gear Refresh |
ENGINE(S3L2-W415RH) |
1626 GEAR REFRESH_FIG 123 |
FUEL SYSTEM (NOZZLE ASSY) |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
Max (T4 Series) |
Max 24 HST |
Engine (S3L2-W412RH) |
MAX 24 HST_FIG 35 |
NOZZLE & NOZZLE HOLDER |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
Max (T4 Series) |
Max 26 XL Gear |
Engine (S3L2-W412RH) |
MAX 26 XL GEAR_FIG 33 |
NOZZLE & NOZZLE HOLDER |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
Max (T4 Series) |
Max 26 XL HST |
Engine (S3L2-W412RH) |
MAX 26 XL HST_FIG 34 |
NOZZLE & NOZZLE HOLDER |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
Max Series |
Max 22 HST |
Engine (S3L-W415RH) |
'01_MAX22_0001_0031-M' |
NOZZLE & NOZZLE HOLDER |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
Max Series |
Max 25 HST |
Engine (S3L2-W411RH) |
25MAX-NZNZH-14 |
NOZZLE & NOZZLE HOLDER |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
Max Series |
Max 28 XL HST |
ENGINE (S3L2-Y316RH) |
'01_MAX28_0001_0031-M' |
NOZZLE & NOZZLE HOLDER |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
Max Series |
Max 28 XL Gear |
ENGINE (S3L2-Y316RH) |
MAX28XLG-NNH-14 |
NOZZLE & NOZZLE HOLDER |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
Max XL Series |
Max 26XLT HST |
ENGINE (S3L2-W413RH) |
MAX26 HST_FIG 123 |
FUEL SYSTEM (NOZZLE ASSY) |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
Max XL Series |
Max 26XLT Gear |
ENGINE (S3L2-W413RH) |
MAX 26 GEAR_FIG.123 |
FUEL SYSTEM (NOZZLE ASSY) |
| MM514045 |
HOLDER Assy contains parts 1 - 6 |
Max XL Series |
Max 25 XL HST |
ENGINE (S3L2-W413RH) |
MAX 25 XL HST_FIG.123 |
FUEL SYSTEM (NOZZLE ASSY) |
