MAHINDRA

Mahindra Gasket for PTO Counter Shaft Retainer 001233559R2 – Replaces 001233559R1 0000000JV 000751061R1 on Multiple Series mPower, 4500, 8000, 25, and 60

Was: $16.90

Now: $11.99

No reviews yet Write a Review

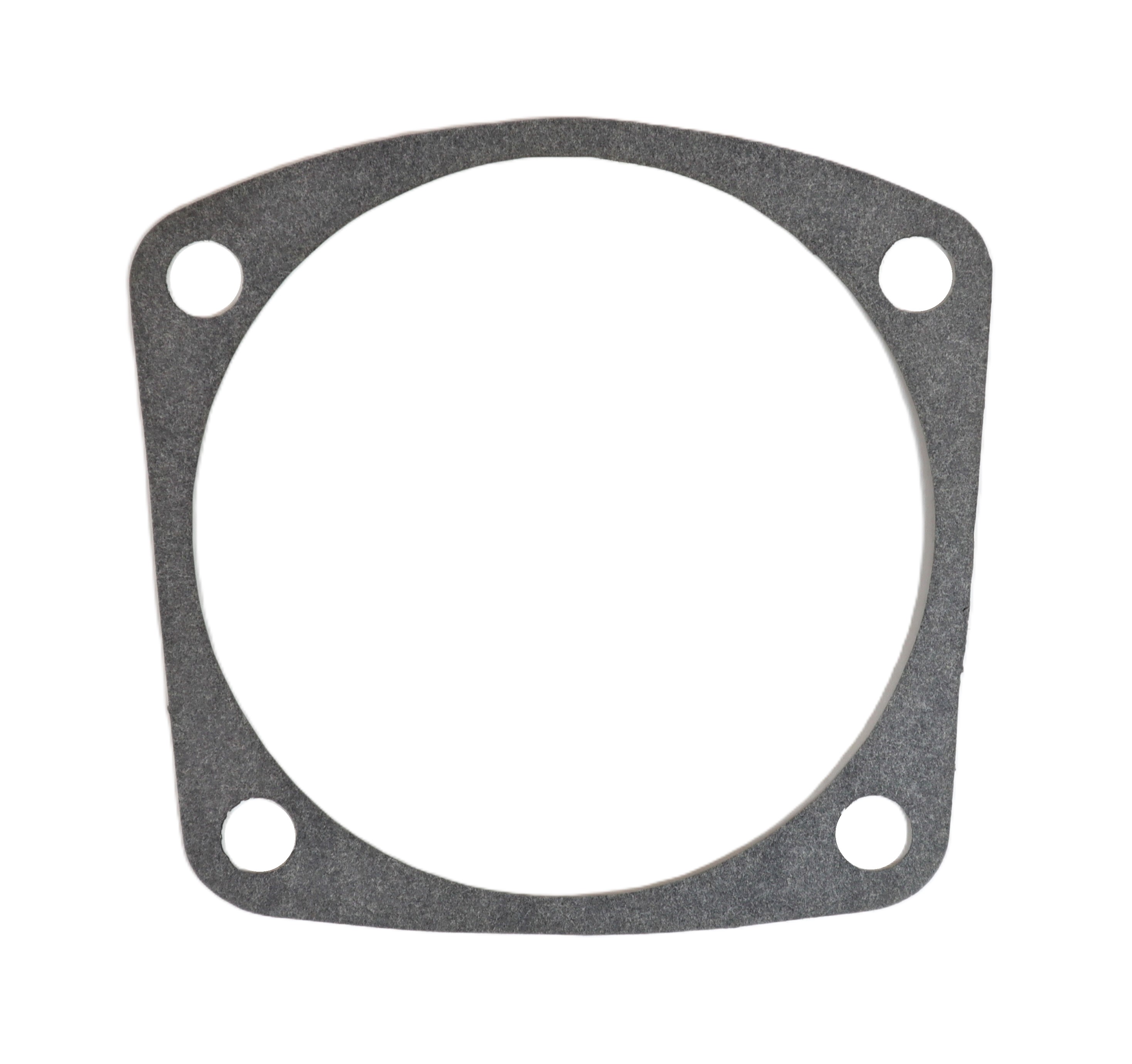

Mahindra PTO counter shaft retainer gasket 001233559R2 replacing 001233559R1 and 0000000JV for mPower 75 85, 4500, 8000 and select 25 and 60 Series tractors, used to seal the PTO front shaft and transmission counter shaft bearing retainer.

SKU:: 001233559R2

Product Description
Specifications

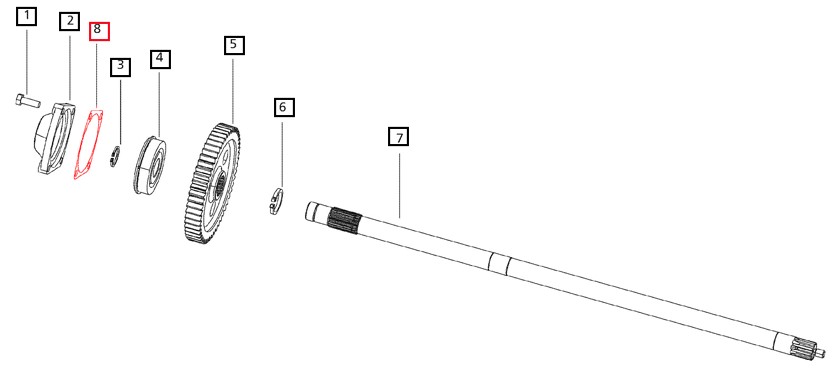

GASKET FOR PTO COUTER SHAFT RETAINER ON MAHINDRA TRACTOR (001233559R2) - ITEM #8
*** ALT PART #'S: 0000000JV, 000751061R1, 001233559R1, & 000000000JV ***

PART NUMBER	DESCRIPTION	SERIES	MODEL	AGGREGATE	GROUP NAME
001233559R1	GASKET Counter Shaft Bearing Retainer	05 Series	3505	C.R.P.T.O. & Transmission	TRANSMISSION GEARS AND SHAFTS - SLIDING MESH - (PART 3)
001233559R1	GASKET Counter Shaft Bearing Retainer	C Series	C27	C.R.P.T.O. & Transmission	TRANSMISSION GEARS AND SHAFTS (CONSTANT MESH TRANS.) - (PART 4)
001233559R1	GASKET Counter Shaft Bearing Retainer	05 Series	4505	C.R.P.T.O. & Transmission	TRANSMISSION GEARS AND SHAFTS - SLIDING MESH - (PART 3)
001233559R1	GASKET Counter Shaft Bearing Retainer	05 Series Old Tractors	475 DI/E40	Transmission, Chassis And Sheet Metal Components	TRANSMISSION GEARS & SHAFTS
001233559R1	GASKET Counter Shaft Bearing Retainer	05 Series Old Tractors	475 DI/E40	Transmission, Chassis And Sheet Metal Components	PACKAGES
001233559R1	GASKET Counter Shaft Bearing Retainer	05 Series Old Tractors	485 DI	Transmission, Chassis And Sheet Metal Components	PACKAGES
001233559R1	GASKET Counter Shaft Bearing Retainer	C Series	C35	C.R.P.T.O. & Transmission	TRANSMISSION GEARS AND SHAFTS (CONSTANT MESH TRANS.) - (PART 4)
001233559R1	GASKET Counter Shaft Bearing Retainer	05 Series	C4005	C.R.P.T.O. & Transmission	TRANSMISSION GEARS AND SHAFTS - SLIDING MESH - (PART 3)
001233559R1	GASKET Counter Shaft Bearing Retainer	05 Series	E350	C.R.P.T.O. & Transmission	TRANSMISSION GEARS AND SHAFTS - SLIDING MESH - (PART 3)
001233559R1	GASKET Counter Shaft Bearing Retainer	25 Series	3825 2WD-T4	C.R.P.T.O. & Transmission	TRANSMISSION GEARS & SHAFTS SLIDING MESH (NON-CRPTO) 2
001233559R1	GASKET Counter Shaft Bearing Retainer	25 Series	4025 2WD-T4	C.R.P.T.O. & Transmission	TRANSMISSION GEARS & SHAFTS SLIDING MESH (CRPTO) 2
001233559R1	GASKET Counter Shaft Bearing Retainer	05 Series	5005	C.R.P.T.O. & Transmission	TRANSMISSION GEARS AND SHAFTS - (CONSTANT MESH TRANS.) - (PART 4)
001233559R1	GASKET Counter Shaft Bearing Retainer	05 Series Old Tractors	575 DI	Transmission, Chassis And Sheet Metal Components	PACKAGES
001233559R1	GASKET Counter Shaft Bearing Retainer	25 Series	4525 2WD-T4	C.R.P.T.O. & Transmission	TRANSMISSION GEARS & SHAFTS SLIDING MESH (CRPTO) 2
001233559R1	GASKET Counter Shaft Bearing Retainer	60 Series	7060 4WD-T3	Transmission	PTO SHAFT (FRONT)
001233559R1	GASKET Counter Shaft Bearing Retainer	60 Series	8560 2WD-T3	Transmission	PTO SHAFT (FRONT)
001233559R1	GASKET Counter Shaft Bearing Retainer	60 Series	8560 4WD-T3	Transmission	PTO SHAFT (FRONT)

PART NUMBER	DESCRIPTION	SERIES	MODEL	AGGREGATE	GROUP NAME	QTY
001233559R2	GASKET Counter Shaft	mPower 75 Series	mPower 75 (4WD Platform T4)	Transmission	PTO SHAFT (FRONT)	1
001233559R2	GASKET Counter Shaft	mPower 75 Series	mPower 75P (4WD Cabin T4)	Transmission	PTO SHAFT (FRONT)	1
001233559R2	GASKET Counter Shaft	mPower 85 Series	mPower 85 (4WD Platform T4)	Transmission	PTO SHAFT (FRONT)	1
001233559R2	GASKET Counter Shaft	mPower 85 Series	mPower 85P (4WD Cabin T4)	Transmission	PTO SHAFT (FRONT)	1
001233559R2	GASKET Counter Shaft	4500 Series	4540 2WD-T4	C.R.P.T.O.& TRANSMISSION	TRANSMISSION GEARS & SHAFTS SLIDING MESH (CRPTO)PART 2	1
001233559R2	GASKET Counter Shaft	8000 Series	8100 CAB	Transmission	SPEED HOUSING	1
001233559R2	GASKET Counter Shaft	8000 Series	8090 CAB	Transmission	SPEED HOUSING	1

PART NUMBER	DESCRIPTION	SERIES	MODEL	AGGREGATE	GROUP NAME	QTY
0000000JV	GASKET Cover Front PTO Retainer	25 Series	3325 2WD T2	C.R.P.T.O. & Transmission	TRANSMISSION GEARS & SHAFTS SLIDING MESH (NON-CRPTO) FRM EMAN 1509 (3/3)	1
0000000JV	GASKET Cover Front PTO Retainer	25 Series	3325 2WD T2	C.R.P.T.O. & Transmission	TRANSMISSION GEARS & SHAFTS- SLIDING MESH UPTO EMAN 1509 (3/3)	1
0000000JV	GASKET Cover Front PTO Retainer	25 Series	3525 2WD T2	C.R.P.T.O. & Transmission	TRANSMISSION GEARS & SHAFTS SLIDING MESH (CRPTO) FRM EMBN 4205 (3/3)	1
0000000JV	GASKET Cover Front PTO Retainer	25 Series	3525 2WD T2	C.R.P.T.O. & Transmission	TRANSMISSION GEARS & SHAFTS- SLIDING MESH UPTO EMBN 4205 (3/3)	1
0000000JV	GASKET Cover Front PTO Retainer	60 Series	7060 4WD Cabin	Transmission	PTO SHAFT (FRONT)	1
0000000JV	GASKET Cover Front PTO Retainer	60 Series	8560 4WD-T3 Cabin	Transmission	PTO SHAFT (FRONT)	1

cdk-part-number:: 001233559R2

Section:: GASKET

Section:: PTO

Section:: TRANSMISSION

Model:: C27

Model:: C35

Model:: E350

Model:: 475

Model:: 485

Model:: 575

Model:: 3325

Model:: 3505

Model:: 3525

Model:: 3825

Model:: 4005

Model:: 4025

Model:: 4505

Model:: 4525

Model:: 4540

Model:: 5005

Model:: 6520

Model:: 7060

Model:: 7520

Model:: 8090

Model:: 8100

Model:: 8560

Model:: MPOWER 75

Model:: MPOWER 85
