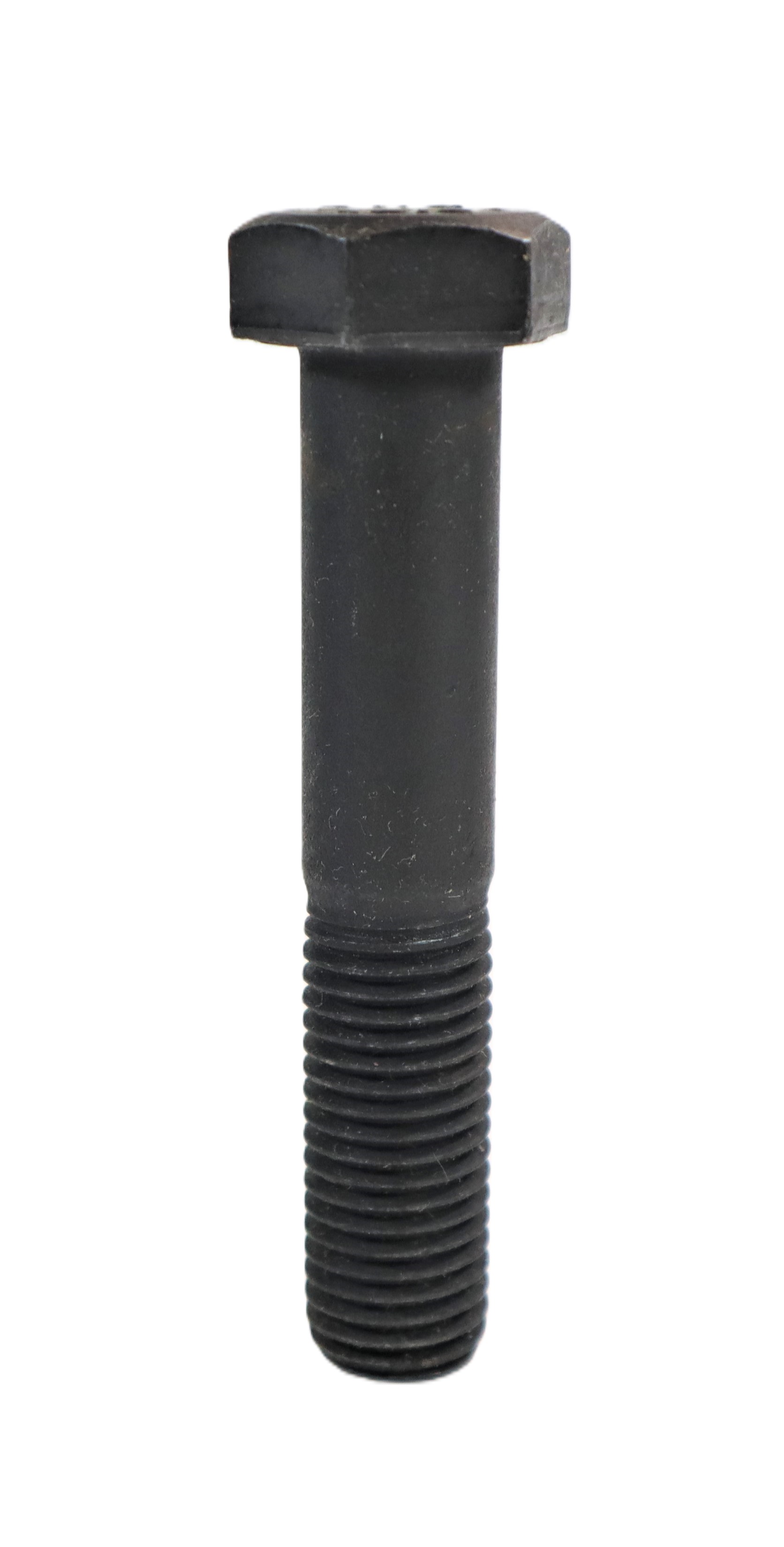

Mahindra Hex Head Bolt 000040341C08 (M16 x 2 x 85, Grade 10.9) for Front Axle, Rear Wheel & Drawbar - 00, 20, 25, 30, 35, 4565, 5100, 5500, 60, 7000, 8000 and mPower 75/85 Series Tractors

Was: $15.51
Now: $13.99
No reviews yet Write a Review
Mahindra heavy‑duty hex head bolt 000040341C08 (M16 x 2 x 85 mm, grade 10.9) used for front axle support, rear wheel and drawbar mounting on multiple large Mahindra tractors.
SKU:
000040341C08
PART NUMBER DESCRIPTION SERIES MODEL AGGREGATE GROUP NO. GROUP NAME
000040341C08 BOLT Hex. Head M16 x 85 00 Series 4500 4WD Front Axle & Weights 01040173 FRONT AXLE SUPPORT AND DRIVE - (PART 1)
000040341C08 BOLT Hex. Head M16 x 85 00 Series 4500 2WD Front Axle 01260163 FRONT AXLE SUPPORT
000040341C08 BOLT Hex. Head M16 x 85 00 Series 5500 4WD Front Axle & Weights 01040175 FRONT AXLE SUPPORT AND DRIVE - (PART 1)
000040341C08 BOLT Hex. Head M16 x 85 00 Series 6000 4WD Front Axle & Weights 01040175 FRONT AXLE SUPPORT AND DRIVE - (PART 1)
000040341C08 BOLT Hex. Head M16 x 85 00 Series 5500 2WD Front Axle 01260161 FRONT AXLE SUPPORT
000040341C08 BOLT Hex. Head M16 x 85 00 Series 6000 2WD Front Axle 01260161 FRONT AXLE SUPPORT
000040341C08 BOLT Hex. Head M16 x 85 00 Series 6500 2WD Front Axle & Weights 01260161 FRONT AXLE SUPPORT
000040341C08 BOLT Hex. Head M16 x 85 00 Series 6500 4WD Front Axle & Weights 01040177 FRONT AXLE SUPPORT AND DRIVE - (PART 1)
000040341C08 BOLT Hex. Head M16 x 85 20 Series 5520 4WD Front Axle & Support 6P04120045 FRONT AXLE SUPPORT AND DRIVE - (PART 2)
000040341C08 BOLT Hex. Head M16 x 85 20 Series 6520 4WD Front Axle & Weights 01280045 FRONT AXLE SUPPORT AND DRIVE (PART 2)
000040341C08 BOLT Hex. Head M16 x 85 20 Series 6520 4WD Wheels 01280213 REAR WHEEL, TIRES, ROPS & SMV KIT
000040341C08 BOLT Hex. Head M16 x 85 20 Series 6520 2WD Wheels 01280215 REAR WHEEL, TIRES, ROPS & SMV KIT
000040341C08 BOLT Hex. Head M16 x 85 20 Series 7520 4WD Front Axle & Support 01_27_0045 FRONT AXLE SUPPORT AND DRIVE (CARRARO) PART 2 - UPTO KNG 990
000040341C08 BOLT Hex. Head M16 x 85 20 Series 7520 4WD Front Axle & Support 75204WD-FASD-D-1-08 FRONT AXLE SUPPORT AND DRIVE (DANA) - FROM KNG 991
000040341C08 BOLT Hex. Head M16 x 85 20 Series 7520 4WD Hydraulics & 3-Point Linkages 7520-SDPTOS-1-08 SWINGING DRAWBAR AND PTO SHIELD-UPTO 1226 & 939
000040341C08 BOLT Hex. Head M16 x 85 20 Series 7520 2WD Hydraulics & 3-Point Linkages 7520-SDPTOS-1-08 SWINGING DRAWBAR AND PTO SHIELD-UPTO 1226 & 939
000040341C08 BOLT Hex. Head M16 x 85 20 Series 7520 4WD Hydraulics & 3-Point Linkages 7520-SDPTOS-1-08 SWINGING DRAWBAR AND PTO SHIELD-UPTO 1226 & 939
000040341C08 BOLT Hex. Head M16 x 85 20 Series 7520 2WD Hydraulics & 3-Point Linkages 7520-SDPTOS-1-08 SWINGING DRAWBAR AND PTO SHIELD-UPTO 1226 & 939
000040341C08 BOLT Hex. Head M16 x 85 20 Series 7520 4WD Wheels 01_27_0211 RIM AND DISC
000040341C08 BOLT Hex. Head M16 x 85 20 Series 7520 2WD Wheels 01_27_0211 RIM AND DISC
000040341C08 BOLT Hex. Head M16 x 85 25 Series 5525 2WD T2 Front Axle 6P03160057 FRONT AXLE SUPPORT
000040341C08 BOLT Hex. Head M16 x 85 25 Series 6025 2WD T2 Front Axle 6P03160057 FRONT AXLE SUPPORT
000040341C08 BOLT Hex. Head M16 x 85 25 Series 5525 2WD-T3 Front Axle & Weights 55252WDFAS-1-08 FRONT AXLE SUPPORT
000040341C08 BOLT Hex. Head M16 x 85 25 Series 6525 2WD-T3 Front Axle & Weights 65252WDFAS-1-08 FRONT AXLE SUPPORT
000040341C08 BOLT Hex. Head M16 x 85 30 Series 4530 4WD T2 Front Axle 01250051 FRONT AXLE SUPPORT AND DRIVE
000040341C08 BOLT Hex. Head M16 x 85 30 Series 4530 4WD-T4 Front Axle 45304-T4-FASD-10 FRONT AXLE SUPPORT AND DRIVE
000040341C08 BOLT Hex. Head M16 x 85 30 Series 5530 4WD T2 Front Axle 6P03180061 FRONT AXLE SUPPORT AND DRIVE
000040341C08 BOLT Hex. Head M16 x 85 30 Series 6030 4WD T2 Front Axle 6P03180061 FRONT AXLE SUPPORT AND DRIVE
000040341C08 BOLT Hex. Head M16 x 85 30 Series 5530 2WD-T3 Front Axle 5530FAS-1-08 FRONT AXLE SUPPORT
000040341C08 BOLT Hex. Head M16 x 85 30 Series 5530 4WD-T3 Front Axle 55304WDFASD-1-08 FRONT AXLE SUPPORT AND DRIVE
000040341C08 BOLT Hex. Head M16 x 85 30 Series 5530 2WD-T3 (Synchro Shuttle) Front Axle 55302-SS-FAS-10 FRONT AXLE SUPPORT
000040341C08 BOLT Hex. Head M16 x 85 30 Series 6530 4WD T2 Front Axle 05_13_0055 FRONT AXLE SUPPORT AND DRIVE
000040341C08 BOLT Hex. Head M16 x 85 30 Series 6030 2WD-T3 Front Axle 6030FAS-1-08 FRONT AXLE SUPPORT
000040341C08 BOLT Hex. Head M16 x 85 30 Series 6530 2WD-T3 Front Axle 65302WDT3-FAS-10 FRONT AXLE SUPPORT
000040341C08 BOLT Hex. Head M16 x 85 30 Series 6530 2WD-T3 Front Axle 65304WDT3- FAS&D-10 FRONT AXLE SUPPORT AND DRIVE
000040341C08 BOLT Hex. Head M16 x 85 30 Series 6030 4WD-T3 Front Axle & Weights 60304WDFASD-1-08 FRONT AXLE SUPPORT AND DRIVE
000040341C08 BOLT Hex. Head M16 x 85 30 Series 6530 4WD-T3 Front Axle 65304WDFAW-FASD-1-08 FRONT AXLE SUPPORT AND DRIVE
000040341C08 BOLT Hex. Head M16 x 85 30 Series 6530 2WD-T3 (Synchro Shuttle) Front Axle 65302-SS-FAS-10 FRONT AXLE SUPPORT
000040341C08 BOLT Hex. Head M16 x 85 35 Series 3535 Gear Hydraulics 35G-PTOSA-1-08 DRAWBAR ASSEMBLY
000040341C08 BOLT Hex. Head M16 x 85 35 Series 4035 Gear Hydraulics 35G-PTOSA-1-08 DRAWBAR ASSEMBLY
000040341C08 BOLT Hex. Head M16 x 85 35 Series 4535 Gear Hydraulics 4535-DA-10 DRAWBAR ASSEMBLY
000040341C08 BOLT Hex. Head M16 x 85 35 Series 4035 HST Hydraulics 4035H-DA-10 DRAWBAR ASSEMBLY
000040341C08 BOLT Hex. Head M16 x 85 35 Series 4035 PST Hydraulics 4035P-DA-10 DRAWBAR ASSEMBLY
000040341C08 BOLT Hex. Head M16 x 85 35 Series 5035 Gear Hydraulics 5035-DA-1-09 DRAWBAR ASSEMBLY
000040341C08 BOLT Hex. Head M16 x 85 35 Series 5035 HST Hydraulics 5035H-DA-10 DRAWBAR ASSEMBLY
000040341C08 BOLT Hex. Head M16 x 85 35 Series 5035 PST Hydraulics 5035P-2WD-DRAWASSEM-11 DRAWBAR ASSEMBLY
000040341C08 BOLT Hex. Head M16 x 85 4500 Series 4565 2WD-T4 Front Axle & Weights 65252WDT4-FAS-13 FRONT AXLE SUPPORT
000040341C08 BOLT Hex. Head M16 x 85 5100 Series 5145- 4WD Front Axle 5100 Series_FIG 125 FRONT AXLE SUPPORT - 4WD
000040341C08 BOLT Hex. Head M16 x 85 5100 Series 5155 - 4WD Front Axle 5100 Series_FIG 125 FRONT AXLE SUPPORT - 4WD
000040341C08 BOLT Hex. Head M16 x 85 5100 Series 5145- 4WD Hydraulics 5100 Series_FIG  176 SWINGING DRAWBAR
000040341C08 BOLT Hex. Head M16 x 85 5100 Series 5155 - 4WD Hydraulics 5100 Series_FIG  176 SWINGING DRAWBAR
000040341C08 BOLT Hex. Head M16 x 85 5500 Series 5545 4WD-T4 Synchro Front Axle & Weights 5545S-FASD-13 FRONT AXLE SUPPORT AND DRIVE
000040341C08 BOLT Hex. Head M16 x 85 5500 Series 5555 4WD-T4 Synchro Front Axle & Weights 55554T4-FASD-13 FRONT AXLE SUPPORT AND DRIVE
000040341C08 BOLT Hex. Head M16 x 85 5500 Series 5555 2WD-T4 Synchro Front Axle & Weights 55552T4-FAS-13 FRONT AXLE SUPPORT
000040341C08 BOLT Hex. Head M16 x 85 5500 Series 5565 4WD-T4 Synchro Front Axle & Weights 55654T4-FASD-13 FRONT AXLE SUPPORT AND DRIVE
000040341C08 BOLT Hex. Head M16 x 85 5500 Series 5565 2WD-T4 Synchro Front Axle & Weights 55652T4-FAS-13 FRONT AXLE SUPPORT
000040341C08 BOLT Hex. Head M16 x 85 5500 Series 5570 2WD-T4 Synchro FRONT AXLE&WEIGHTS 5570 2WD-T4-FIG 119 FRONT AXLE SUPPORT
000040341C08 BOLT Hex. Head M16 x 85 5500 Series 5570 4WD-T4 Synchro Front Axle & Weights 5570 4WD-T4-FIG 123 FRONT AXLE SUPPORT AND DRIVE
000040341C08 BOLT Hex. Head M16 x 85 60 Series 7060 4WD-T3 Front Axle & Weights 70604WD-FASD-D2-1-08 FRONT AXLE SUPPORT AND DRIVE (DANA) (2-2)
000040341C08 BOLT Hex. Head M16 x 85 60 Series 7060 4WD-T3 Wheels 70604WD-RWT-1-08 REAR WHEEL, TIRES
000040341C08 BOLT Hex. Head M16 x 85 60 Series 7060 4WD Cabin Front Axle & Weights 7060C-FASD-D2-10 FRONT AXLE SUPPORT AND DRIVE (DANA) (PART 2)
000040341C08 BOLT Hex. Head M16 x 85 60 Series 7060 4WD Cabin Wheels 7060C-RW&T-10 REAR WHEEL, TIRES
000040341C08 BOLT Hex. Head M16 x 85 60 Series 8560 2WD-T3 Front Axle & Support 8560-2-SFA-1-08 SUPPORT FRONT AXLE
000040341C08 BOLT Hex. Head M16 x 85 60 Series 8560 2WD-T3 Wheels & ROPS 8560-2&4-RWTSK-1-08 REAR WHEEL, TIRES & SMV KIT
000040341C08 BOLT Hex. Head M16 x 85 60 Series 8560 4WD-T3 Wheels & ROPS 8560-2&4-RWTSK-1-08 REAR WHEEL, TIRES & SMV KIT
000040341C08 BOLT Hex. Head M16 x 85 60 Series 8560 4WD-T3 Front Axle & Support 8560-4-FASDD2-1-08 FRONT AXLE SUPPORT AND DRIVE (2/2) (DANA)
000040341C08 BOLT Hex. Head M16 x 85 60 Series 8560 4WD-T3 Cabin Front Axle & Weights 8560C-FASD-D2-10 FRONT AXLE SUPPORT AND DRIVE  (DANA) (PART 2)
000040341C08 BOLT Hex. Head M16 x 85 7000 Series 7085 4WD Front Axle & Weights 7085 4WD  NEW_FIG 124 FRONT AXLE SUPPORT - 4WD
000040341C08 BOLT Hex. Head M16 x 85 7000 Series 7095 4WD Cab Front Axle & Weights 7095 4WD CAB NEW_FIG 125 FRONT AXLE SUPPORT - 4WD
000040341C08 BOLT Hex. Head M16 x 85 8000 Series 8100 CAB Front Axle 8000 SERIES NEW_FIG 125 FRONT AXLE SUPPORT AND DRIVE (DANA)
000040341C08 BOLT Hex. Head M16 x 85 8000 Series 8090 CAB Front Axle 8000 SERIES NEW_FIG 125 FRONT AXLE SUPPORT AND DRIVE (DANA)
000040341C08 BOLT Hex. Head M16 x 85 mPower 75 Series mPower 75 (4WD Platform T4) Front Axle & Weights 75-FASDD2-13 FRONT AXLE SUPPORT AND DRIVE (DANA) - PART 2
000040341C08 BOLT Hex. Head M16 x 85 mPower 75 Series mPower 75 (4WD Platform T4) Wheels 75-RWT-13 REAR WHEEL & TIRE
000040341C08 BOLT Hex. Head M16 x 85 mPower 75 Series mPower 75P (4WD Cabin T4) Wheels MP75P-RWTSK-13 REAR WHEEL, TIRES & SMV KIT
000040341C08 BOLT Hex. Head M16 x 85 mPower 75 Series mPower 75P (4WD Cabin T4) Front Axle & Weights MPOWER 75P (4WD CABIN T4)_FIG 12 FRONT AXLE SUPPORT AND DRIVE (DANA) (PART 2)
000040341C08 BOLT Hex. Head M16 x 85 mPower 85 Series mPower 85 (4WD Platform T4) Wheels 85604WDT4-RWTS-12 REAR WHEEL, TIRES & SMV KIT
000040341C08 BOLT Hex. Head M16 x 85 mPower 85 Series mPower 85 (4WD Platform T4) Front Axle & Support 85604WDT4-FASD2-12 FRONT AXLE SUPPORT AND DRIVE (DANA) 2
000040341C08 BOLT Hex. Head M16 x 85 mPower 85 Series mPower 85P (4WD Cabin T4) Front Axle & Weights 8560CAB-T4-FAS2-12 FRONT AXLE SUPPORT AND DRIVE (DANA) 2
