Mahindra Hydraulic Feedback Arm 10032409AG0 / 10032409BR0 – 1815 2015 2615 2816 2216 Max 22 Max 25 Max 25XL

Was: $177.27

Now: $99.99

No reviews yet Write a Review

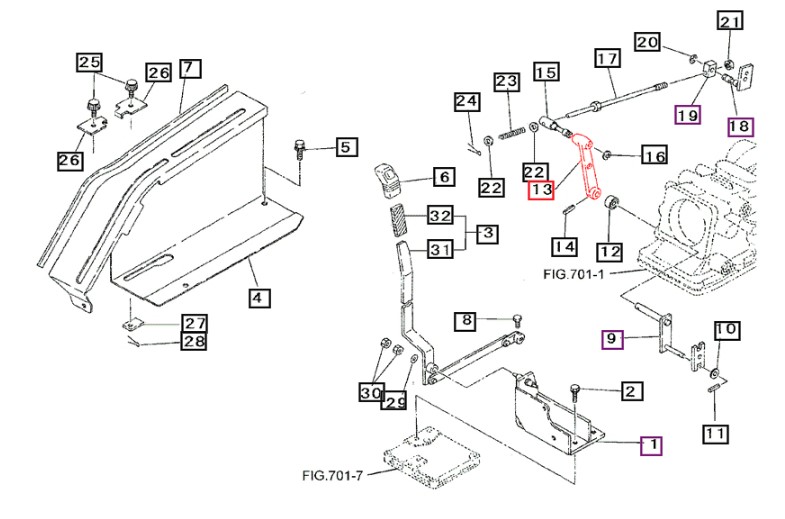

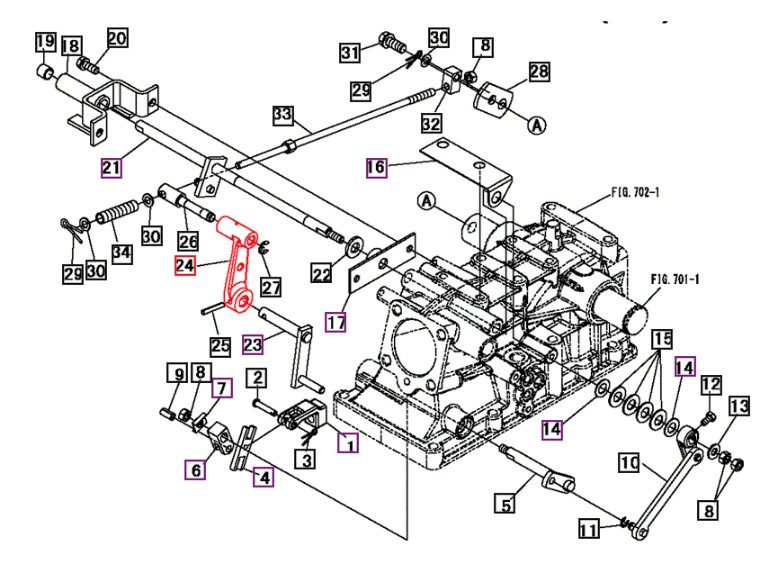

Mahindra hydraulic lift feedback arm 10032409AG0 / 10032409BR0 for 1815, 1816, 2015, 2216, 2615, 2816, 3015, Max 22, Max 25, and Max 25 XL tractors, OEM 3‑point linkage arm that senses hitch movement and feeds back to the position control valve.

SKU:: 10032409AG0

Product Description
Specifications

PART NUMBER	DESCRIPTION	SERIES	MODEL	AGGREGATE	GROUP NO.	GROUP NAME
10032409AG0 / 10032409BR0	ARM, Feedback	15 Series	1815 HST	Hydraulic	6P05020103	HYDRAULIC LIFT (PART 4)
10032409AG0 / 10032409BR0	ARM, Feedback	15 Series	2015 Gear 4WD	Chassis	01150119	HYDRAULIC LIFT (4/4)
10032409AG0 / 10032409BR0	ARM, Feedback	15 Series	2015 HST 4WD	Chassis	01120071	HYDRAULIC LIFT (4/4)
10032409AG0 / 10032409BR0	ARM, Feedback	15 Series	2615 Gear	Chassis	01160121	HYDRAULIC LIFT (3/3)
10032409AG0 / 10032409BR0	ARM, Feedback	15 Series	2615 HST 4WD	Chassis	01140137	HYDRAULIC LIFT (PART 3)
10032409AG0 / 10032409BR0	ARM, Feedback	15 Series	3015 HST	Chassis	01140137	HYDRAULIC LIFT (PART 3)
10032409AG0 / 10032409BR0	ARM, Feedback	16 Series	1816 HST	Chassis	1816H-HL4-1-08	HYDRAULIC LIFT (4/4)
10032409AG0 / 10032409BR0	ARM, Feedback	16 Series	2816 Gear	Chassis	2816GHL3-1-08	HYDRAULIC LIFT (3/3)
10032409AG0 / 10032409BR0	ARM, Feedback	16 Series	2816 HST 4WD	Chassis	2816HHL3-1-08	HYDRAULIC LIFT (3/3)
10032409AG0 / 10032409BR0	ARM, Feedback	16 Series	2216 Gear	Chassis	2216GCHL4-1-08	HYDRAULIC LIFT (4/4)
10032409AG0 / 10032409BR0	ARM, Feedback	16 Series	2216 HST	Chassis	2216H-HL4-1-08	HYDRAULIC LIFT (4/4)
10032409AG0 / 10032409BR0	ARM, Feedback	Max Series	Max 22 HST	Hydraulic	'01_MAX22_0001_0129-M'	LINK CONTROL(2/2)
10032409AG0 / 10032409BR0	ARM, Feedback	Max Series	Max 25 HST	Hydraulic	25MAX-LKCL2-14	LINK CONTROL (PART 2)
10032409AG0 / 10032409BR0	ARM, Feedback	Max XL Series	Max 25 XL HST	Hydraulic System	MAX 25 XL HST_FIG.704	HYDRAULIC LIFT (4/4)

cdk-part-number:: 10032409AG0

Section:: HYDRAULIC

Section:: 3-POINT

Model:: 1815

Model:: 1816

Model:: 2015

Model:: 2216

Model:: 2615

Model:: 2816

Model:: 3015

Model:: MAX22

Model:: MAX25
