Mahindra Hydraulic Pressure Pipe Coupling 000705520R2 001121709R1 – 3505 3325 3525 3825 4025 4525 4540 475 485 575 C4005 E350

Was: $18.35
Now: $9.99
No reviews yet Write a Review

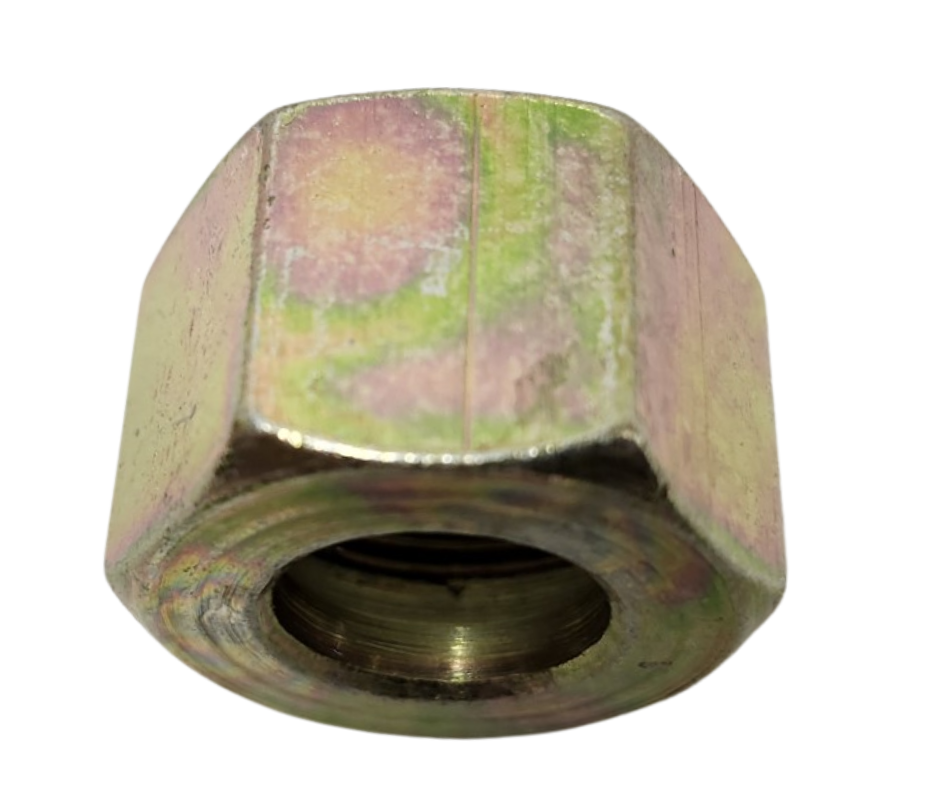

Mahindra hydraulic pressure pipe coupling 000705520R2 (superseding 001121709R1/R2/R3 and 000705520R1), OEM steel coupling nut used at the pump end and control valve end of suction and pressure pipes on select 05, 25 and 4500 Series tractors.
SKU:
000705520R2

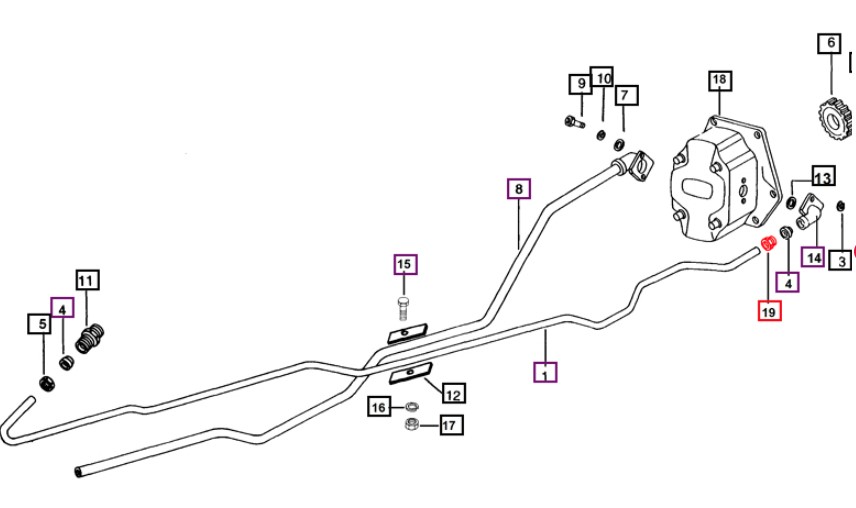

COUPLING Hyd Pressure Pipe (Pump End) (000705520R2) - ITEM #19
*** 000705520R2 Replaces PART #'S: 001121709R1, 001121709R2, 001121709R3, & 000705520R1 ***

PART NUMBER DESCRIPTION SERIES MODEL AGGREGATE GROUP NAME QTY USED ON TRACTOR
000705520R2 COUPLING Hyd Pressure Pipe (Pump End) 05 Series 3505 Hydraulics HYDRAULIC PIPES - SUCTION & PRESSURE PIPES 1
000705520R2 COUPLING Hyd Pressure Pipe (Pump End) 25 Series 3325 2WD T2 Hydraulics HYDRAULIC PIPES - SUCTION & PRESSURE PIPES 1
000705520R2 COUPLING Hyd Pressure Pipe (Pump End) 25 Series 3525 2WD T2 Hydraulics HYDRAULIC PIPES - SUCTION & PRESSURE PIPES 1
000705520R2 COUPLING Hyd Pressure Pipe (Pump End) 05 Series C4005 Hydraulics HYDRAULIC PIPES - SUCTION & PRESSURE PIPES 1
000705520R2 COUPLING Hyd Pressure Pipe (Pump End) 05 Series E350 Hydraulics HYDRAULIC PIPES - SUCTION & PRESSURE PIPES 1
000705520R2 COUPLING Hyd Pressure Pipe (Pump End) 25 Series 3825 2WD-T4 Hydraulics HYDRAULIC PRESSURE PIPES 1
000705520R2 COUPLING Hyd Pressure Pipe (Pump End) 25 Series 4025 2WD-T4 Hydraulics HYDRAULIC PRESSURE PIPES 1
000705520R2 COUPLING Hyd Pressure Pipe (Pump End) 25 Series 4525 2WD-T4 Hydraulics HYDRAULIC PRESSURE PIPES 1
000705520R2 COUPLING Hyd Pressure Pipe (Pump End) 4500 Series 4540 2WD-T4 Hydraulics HYDRAULIC PRESSURE PIPES 1
000705520R2 NUT Control Valve Coupling 05 Series 3505 Hydraulics HYDRAULIC PIPES - SUCTION & PRESSURE PIPES 1
000705520R2 NUT Control Valve Coupling 25 Series 3325 2WD T2 Hydraulics HYDRAULIC PIPES - SUCTION & PRESSURE PIPES 1
000705520R2 NUT Control Valve Coupling 25 Series 3525 2WD T2 Hydraulics HYDRAULIC PIPES - SUCTION & PRESSURE PIPES 1
000705520R2 NUT Control Valve Coupling 05 Series Old Tractors 475 DI/E40 Hydraulics HYDRAULIC PIPES - SUCTION & PRESSURE PIPES 1
000705520R2 NUT Control Valve Coupling 05 Series Old Tractors 485 DI Hydraulics HYDRAULIC PIPES - SUCTION AND PRESSURE PIPES 1
000705520R2 NUT Control Valve Coupling 05 Series C4005 Hydraulics HYDRAULIC PIPES - SUCTION & PRESSURE PIPES 1
000705520R2 NUT Control Valve Coupling 05 Series E350 Hydraulics HYDRAULIC PIPES - SUCTION & PRESSURE PIPES 1
000705520R2 NUT Control Valve Coupling 25 Series 3825 2WD-T4 Hydraulics HYDRAULIC PRESSURE PIPES 1
000705520R2 NUT Control Valve Coupling 25 Series 4025 2WD-T4 Hydraulics HYDRAULIC PRESSURE PIPES 1
000705520R2 NUT Control Valve Coupling 05 Series Old Tractors 575 DI Hydraulics HYDRAULIC PIPES - SUCTION AND PRESSURE PIPES 1
000705520R2 NUT Control Valve Coupling 25 Series 4525 2WD-T4 Hydraulics HYDRAULIC PRESSURE PIPES 1
000705520R2 NUT Control Valve Coupling 4500 Series 4540 2WD-T4 Hydraulics HYDRAULIC PRESSURE PIPES 1
001121709R1 COUPLING 05 Series Old Tractors 475 DI/E40 Hydraulics HYDRAULIC PIPES - SUCTION & PRESSURE PIPES 1
cdk-part-number:
000705520R2
Section:
HYDRAULIC
Model:
E40
Model:
E350
Model:
475
Model:
485
Model:
575
Model:
3325
Model:
3505
Model:
3525
Model:
4005
Model:
4025
Model:
4525
Model:
4540
