Mahindra Hydraulic Pressure Pipe E007206292B91 – 4025 4525 4540 2WD T4

Was: $76.36
Now: $57.99
No reviews yet Write a Review

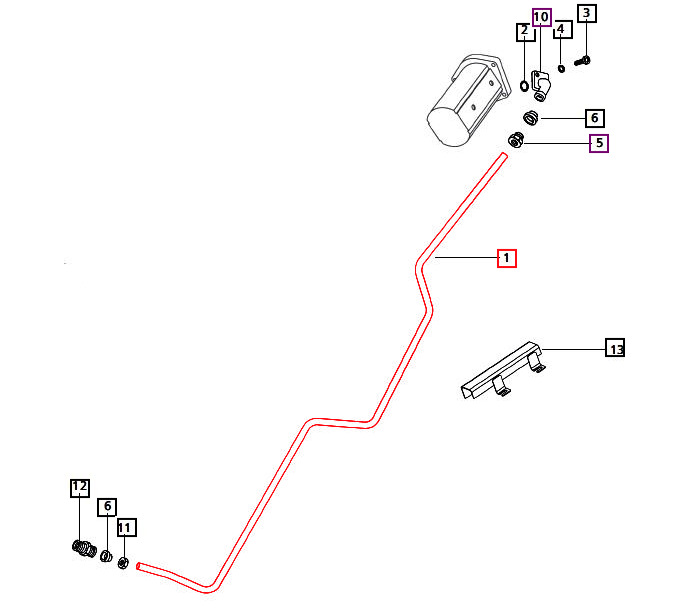

Mahindra hydraulic pressure pipe E007206292B91 for 4025, 4525, and 4540 2WD T4 tractors, formed steel high-pressure line that routes oil from the hydraulic tandem pump outlet to the hydraulic control valve assembly. Dimensional shipping of $55.00
SKU:
E007206292B91
PART NUMBER DESCRIPTION SERIES MODEL AGGREGATE GROUP NO. GROUP NAME
E007206292B91 PIPE Pressure Pump To CV 25 Series 4025 2WD-T4 Hydraulics 40252WDHTP1-1-08 HYDRAULIC TANDEM PUMP 1
E007206292B91 PIPE Pressure Pump To CV 25 Series 4025 2WD-T4 Hydraulics 40252WDHPP-1-08 HYDRAULIC PRESSURE PIPES
E007206292B91 PIPE Pressure Pump To CV 25 Series 4525 2WD-T4 Hydraulics 45252WDHTP1-1-08 HYDRAULIC TANDEM PUMP 1
E007206292B91 PIPE Pressure Pump To CV 25 Series 4525 2WD-T4 Hydraulics 45252WDHPP-1-08 HYDRAULIC PRESSURE PIPES
E007206292B91 PIPE Pressure Pump To CV 4500 Series 4540 2WD-T4 Hydraulics 4540_FIG55 HYDRAULIC PRESSURE PIPES
Model:
4025
Model:
4525
Model:
4540
Section:
HYDRAULIC
cdk-part-number:
E007206292B91
