Mahindra Hydraulic & Transaxle Oil Level Gauge 16323040020 for 3510, 4110, 4510, 6110, 7010, 2565, 2665 & 2670 Tractors

Was: $22.00

Now: $16.99

No reviews yet Write a Review

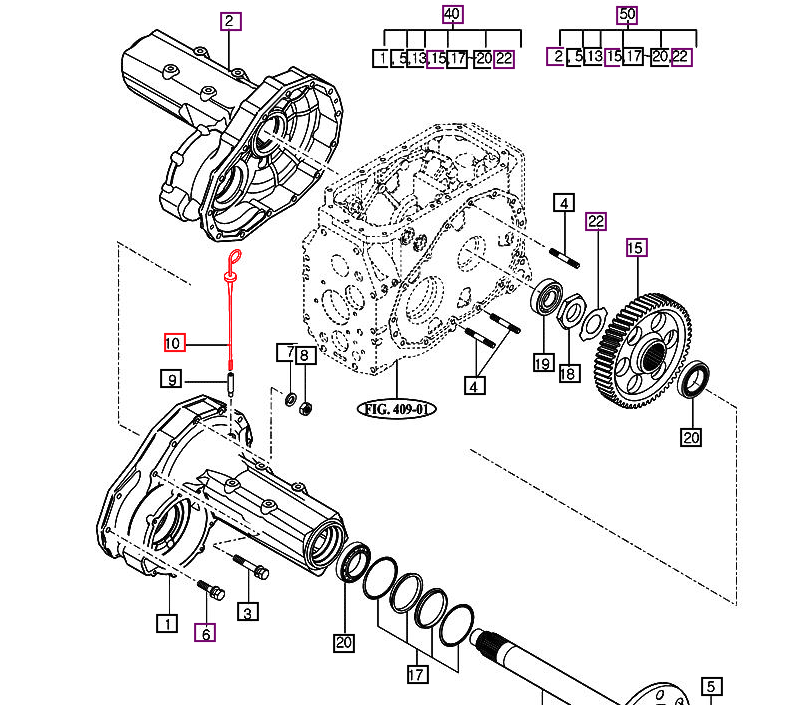

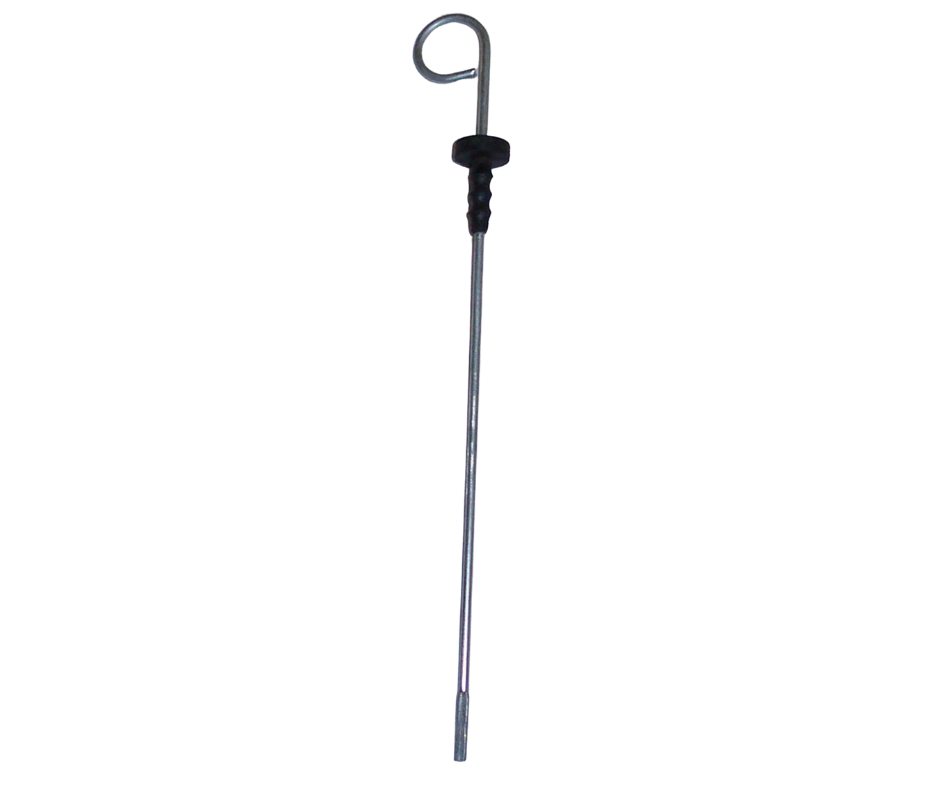

Mahindra hydraulic and transaxle oil level gauge dipstick 16323040020 that mounts on the rear axle housing to check combined rear axle/hydraulic oil level on 3510, 4110, 4510, 6110, 7010, 2565, 2665 and 2670 tractors.

SKU:: 16323040020

Product Description
Specifications

PART NUMBER	DESCRIPTION	SERIES	MODEL	AGGREGATE	GROUP NO.	GROUP NAME
16323040020	GAUGE, Oil	2500 Series	2565 Gear Cabin T4	Transmission & Rear Axle	2565 G CABIN T4_FIG 418	REAR AXLE HOUSING
16323040020	GAUGE, Oil	2600 series	2665 GEAR CABIN	Transmission & Rear Axle	2665 GEAR CABIN_FIG 418	REAR AXLE HOUSING
16323040020	GAUGE, Oil	2600 series	2670 PST CABIN	Transmission & Rear Axle	2670 PST CABIN 2020_FIG 418	REAR AXLE HOUSING
16323040020	GAUGE, Oil	10 Series	3510 4WD Gear (New Sheet Metal) - From SN# 351V	Brake & Control (New Sheet Metal) - 3510	01080141	BRAKE
16323040020	GAUGE, Oil	10 Series	3510 4WD Gear (New Sheet Metal) - From SN# 351V	Transmission & Rear Axle (New Sheet Metal) - 3510	01080139	REAR AXLE & HOUSINGS
16323040020	GAUGE, Oil	10 Series	3510 4WD Gear (Old Sheet Metal) - SN# 351S - 351U	Chassis (Old Sheet Metal) - 3510	01210111	BRAKE
16323040020	GAUGE, Oil	10 Series	4110 (New Sheet Metal) - From SN# 411V	Brake & Control (New Sheet Metal) - 4110	01080141	BRAKE
16323040020	GAUGE, Oil	10 Series	4110 (New Sheet Metal) - From SN# 411V	Transmission & Rear Axle (New Sheet Metal) - 4110	01080139	REAR AXLE & HOUSINGS
16323040020	GAUGE, Oil	10 Series	4110 (Old Sheet Metal) - SN# 411S - 411U	Chassis (Old Sheet Metal) - 4110	01210111	BRAKE
16323040020	GAUGE, Oil	10 Series	4110 -T4	Chassis	4110T4-B-1-09	BRAKE
16323040020	GAUGE, Oil	10 Series	4510 Cabin T2	Chassis	4510C-BRAK-12	BRAKE
16323040020	GAUGE, Oil	10 Series	4510 Cabin T4	Chassis	01100095	BRAKE
16323040020	GAUGE, Oil	10 Series	6110 Gear Cabin	Chassis	'6110ST_0105-M'	REAR AXLE HOUSING
16323040020	GAUGE, Oil	10 Series	7010 Cabin	Transmission & Rear Axle	7010-RAH-1-09	REAR AXLE & HOUSINGS
