MAHINDRA

Mahindra Hydraulic Under Cover 19488215000 – 1500 & 1600 Series

Was: $72.00

Now: $59.99

No reviews yet Write a Review

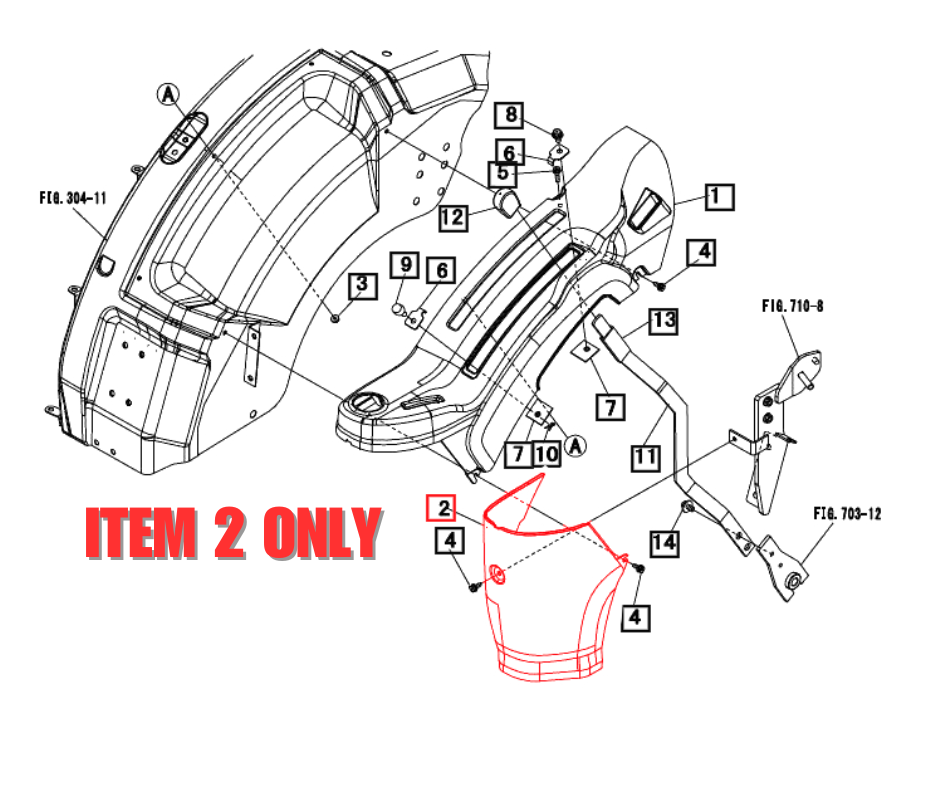

Mahindra 19488215000 hydraulic under cover (ref #2) for 1533, 1538, 1635 and 1640 tractors, formed metal shield that bolts beneath the hydraulic lift/control assembly to guard valves and linkages from dirt, rocks and impacts.

**OUT OF STOCK/BACK ORDERED** expected release date is Mar 31st 2026

SKU:: 19488215000

Product Description
Specifications

PART NUMBER	DESCRIPTION	SERIES	MODEL	AGGREGATE	GROUP NO.	GROUP NAME	QTY USED ON TRACTOR	REF NO.
19488215000	UNDER Cover	1500 Series	1533 4WD HST T4	Hydraulic System	1533 HST_FIG 705	HYDRAULIC LIFT (5/5)	1	2
19488215000	UNDER Cover	1500 Series	1533 4WD Gear T4	Hydraulic System	1533 G_FIG 705	HYDRAULIC LIFT (5/5)	1	2
19488215000	UNDER Cover	1500 Series	1538 HST 4WD T4	Hydraulic System	1538 HST_FIG 705	HYDRAULIC LIFT (5/5)	1	2
19488215000	UNDER Cover	1500 Series	1538 HST Cabin T4	Hydraulic System	1538 HST_FIG 705A	HYDRAULIC LIFT (5/5)	1	2
19488215000	UNDER Cover	1500 Series	1538 Gear 4WD T4	Hydraulic System	1538 G_FIG 705	HYDRAULIC LIFT (5/5)	1	2
19488215000	UNDER Cover	1600 Series	1640 Gear	Hydraulic System	1640 GEAR_FIG 705	HYDRAULIC CONTROL	1	2
19488215000	UNDER Cover	1600 Series	1640 HST OS	Hydraulic System	1640 HST_FIG 705	HYDRAULIC CONTROL 1	1	2
19488215000	UNDER Cover	1600 Series	1640 HST CABIN	Hydraulic System	1640 HST CAB_FIG 705A	HYDRAULIC CONTROL 2	1	2
19488215000	UNDER Cover	1600 Series	1635 HST OS	Hydraulic System	1635 HST OS_FIG 705	HYDRAULIC LIFT 5-1	1	2
19488215000	UNDER Cover	1600 Series	1635 HST CABIN	Hydraulic System	1635 HST CABIN_FIG 705A	HYDRAULIC LIFT 5-2	1	2
19488215000	UNDER Cover	1600 Series	1635 Gear	Hydraulic System	1635 GEAR_FIG 705	HYDRAULIC LIFT 5	1	2

cdk-part-number:: 19488215000

Model:: 1533

Model:: 1538

Model:: 1635

Model:: 1640

Section:: BODY
