Mahindra Inner Gear Shifter Rail Guide 000704038R1 For 05 25 4500 Series Tractors

Was: $17.95

Now: $11.99

No reviews yet Write a Review

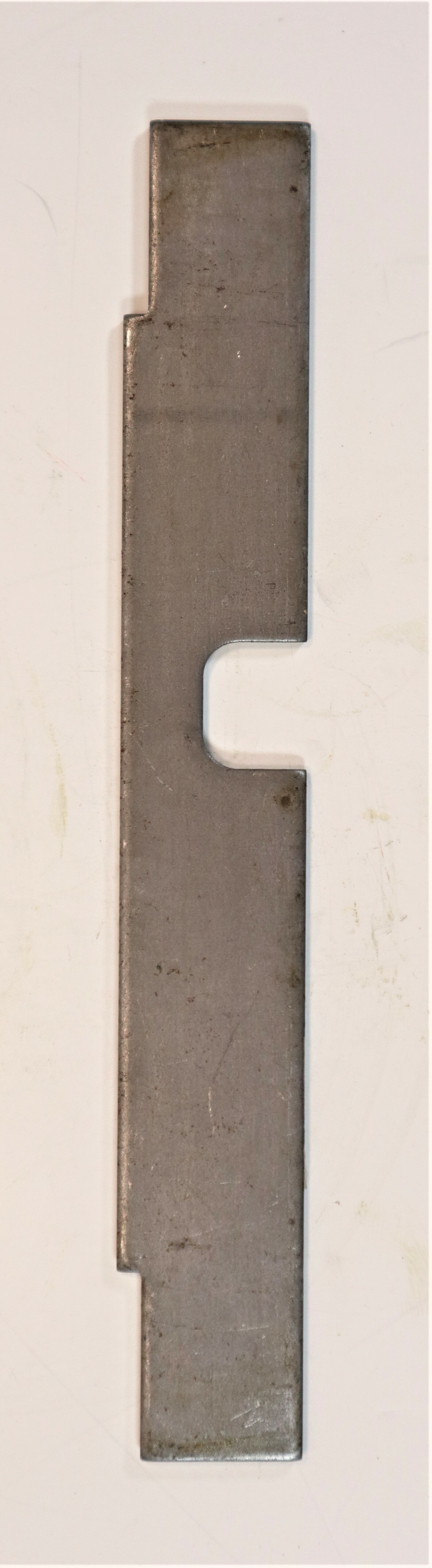

Mahindra inner gear shifter rail guide 000704038R1 for 05 25 and 4500 Series tractor sliding mesh transmissions

SKU:: 000704038R1

Product Description
Specifications

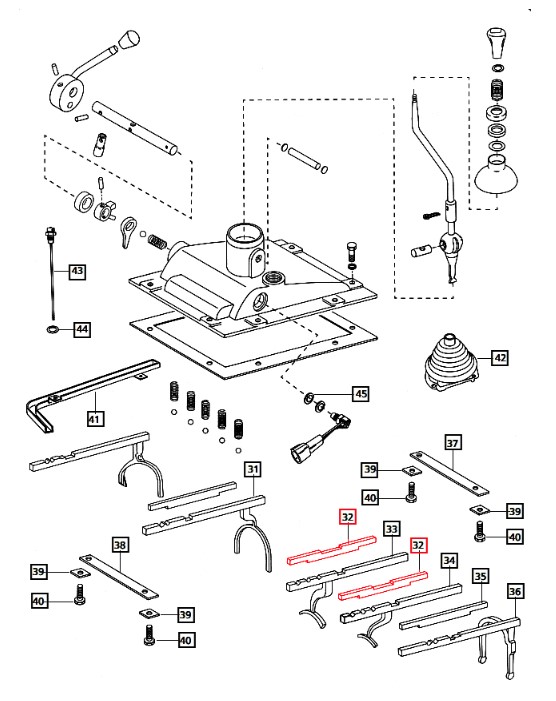

INNER RAIL GEAR SHIFTER GUIDE FOR MAHINDRA TRACTOR (000704038R1) - ITEM #32

PART NUMBER	DESCRIPTION	SERIES	MODEL	AGGREGATE	GROUP NO.	GROUP NAME
000704038R1	GUIDE Gear Shifter Rail Inner	05 Series	3505	C.R.P.T.O. & Transmission	01020253	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT - (SLIDING MESH TRANS.) - (PART 2)
000704038R1	GUIDE Gear Shifter Rail Inner	05 Series	4505	C.R.P.T.O. & Transmission	01220217	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT - (SLIDING MESH TRANS.) - (PART 2)
000704038R1	GUIDE Gear Shifter Rail Inner	05 Series	C4005	C.R.P.T.O. & Transmission	01220217	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT - (SLIDING MESH TRANS.) - (PART 2)
000704038R1	GUIDE Gear Shifter Rail Inner	05 Series	E350	C.R.P.T.O. & Transmission	01020251	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT - (SLIDING MESH TRANS.) - (PART 2)
000704038R1	GUIDE Gear Shifter Rail Inner	05 Series Old Tractors	475 DI/E40	Transmission, Chassis And Sheet Metal Components	475-GSMTCCF-1-09	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT
000704038R1	GUIDE Gear Shifter Rail Inner	05 Series Old Tractors	485 DI	Transmission, Chassis And Sheet Metal Components	485-GSM-TCFC-1-09	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT
000704038R1	GUIDE Gear Shifter Rail Inner	05 Series Old Tractors	575 DI	Transmission, Chassis And Sheet Metal Components	575-GSMTCFC-1-09	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT
000704038R1	GUIDE Gear Shifter Rail Inner	25 Series	3325 2WD T2	C.R.P.T.O. & Transmission	01130151	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT - (SLIDING MESH TRANS.) (PART 2)
000704038R1	GUIDE Gear Shifter Rail Inner	25 Series	3525 2WD T2	C.R.P.T.O. & Transmission	3525-GSM&TCCF-10	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT - (SLIDING MESH TRANS.) (PART 2)
000704038R1	GUIDE Gear Shifter Rail Inner	25 Series	3825 2WD-T4	C.R.P.T.O. & Transmission	38252WDGSMTCCF-SMT2-1-08	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT - (SLIDING MESH TRANSMISSION) 2
000704038R1	GUIDE Gear Shifter Rail Inner	25 Series	4025 2WD-T4	C.R.P.T.O. & Transmission	40252WDGSMTCCF-SMT2-1-08	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT - (SLIDING MESH TRANSMISSION) 2
000704038R1	GUIDE Gear Shifter Rail Inner	25 Series	4525 2WD-T4	C.R.P.T.O. & Transmission	45252WDGSMTCCF-SMT2-1-08	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT - (SLIDING MESH TRANSMISSION) 2
000704038R1	GUIDE Gear Shifter Rail Inner	25 Series	5525 2WD-T3	Transmission	55252WDGSMTCCF-PCT2-1-08	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT (PARTIAL CONSTANTMESH TRANSMISSION)
000704038R1	GUIDE Gear Shifter Rail Inner	4500 Series	4540 2WD-T4	C.R.P.T.O.& TRANSMISSION	4540_FIG36A	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT - (SLIDING MESH TRANSMISSION)PART 2

cdk-part-number:: 000704038R1

Section:: TRANSMISSION

Model:: 475

Model:: 485

Model:: 575

Model:: 3505

Model:: 3325

Model:: 3525

Model:: 3825

Model:: 4005

Model:: 4025

Model:: 4525

Model:: 4540

Model:: 5525

Model:: E40

Model:: E350

Model:: 4505
