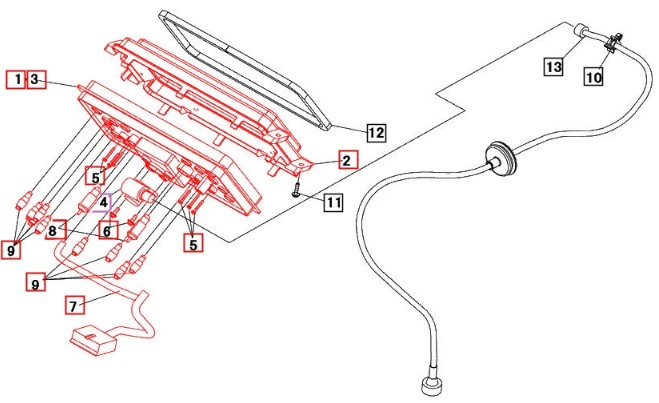

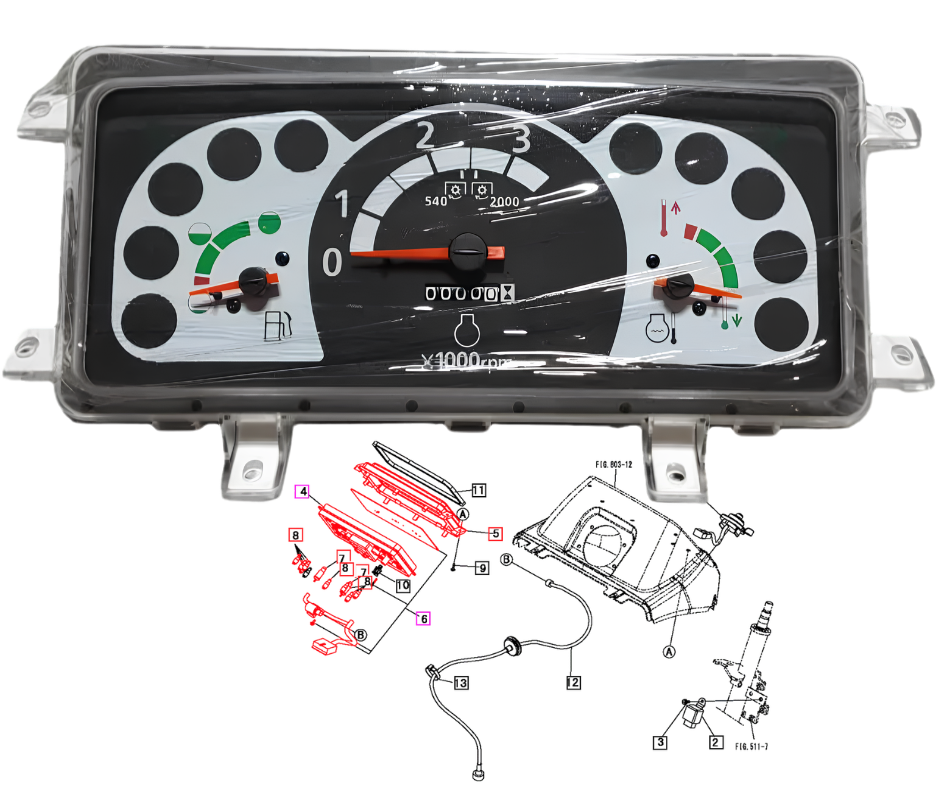

INSTRUMENT CLUSTER PANEL ASSEMBLY FOR MAHINDRA TRACTOR FITS MODELS: MAX 22, MAX 24, MAX 25, MAX 26, MAX 28, 1526, 1626, 3016, & 3616
| PART NUMBER | DESCRIPTION | SERIES | MODEL | AGGREGATE | GROUP NO. | GROUP NAME |
| 19458602000 | METER Assy | 1500 Series | 1526 Gear 4WD T4 | Electrical System | 1526 GEAR -FIG.801 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | 1500 Series | 1526 HST 4WD T4 | Electrical System | 1526 HST -FIG.801 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | 1500 Series | 1526 HST 4WD T4 | Fast Moving Parts List | FMPL 1526 HST-FIG 01 | FAST MOVING PARTS LIST |
| 19458602000 | METER Assy | 1500 Series | 1526 Gear 4WD T4 | Fast Moving Parts List | FMPL 1526 GEAR-FIG 01 | FAST MOVING PARTS LIST |
| 19458602000 | METER Assy | 16 Series | 3016 Gear | Electrical | 3016G-IP-10 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | 16 Series | 3016 Gear | Electrical | 3016G-IP-10 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | 16 Series | 3016 Gear | Fast Moving Parts List | 16-3016G-2-FMPL-13 | FAST MOVING PARTS LIST 2 |
| 19458602000 | METER Assy | 16 Series | 3016 HST | Electrical | 3016H-IP-10 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | 16 Series | 3016 HST | Electrical | 3016H-IP-10 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | 16 Series | 3016 HST | Fast Moving Parts List | 16-3016H-2-FMPL-13 | FAST MOVING PARTS LIST 2 |
| 19458602000 | METER Assy | 16 Series | 3616 Gear 4WD | Electrical System | 3616G-IP-10 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | 16 Series | 3616 Gear 4WD | Electrical System | 3616G-IP-10 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | 16 Series | 3616 Gear 4WD | Fast Moving Parts List | 16-3616G4-2-FMPL-13 | FAST MOVING PARTS LIST 2 |
| 19458602000 | METER Assy | 16 Series | 3616 Gear Cabin | Electrical Section | 3616G-C-IP-10 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | 16 Series | 3616 Gear Cabin | Electrical Section | 3616G-C-IP-10 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | 16 Series | 3616 HST Cabin | Electrical | 3616H-IP-10 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | 16 Series | 3616 HST 4WD | Electrical | 3616H-IP-10 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | 16 Series | 3616 HST Cabin | Electrical | 3616H-IP-10 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | 16 Series | 3616 HST 4WD | Electrical | 3616H-IP-10 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | 1600 Series | 1626 HST | Electrical System | 1626 HST_FIG 801 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | 1600 Series | 1626 Gear | Electrical System | 1626 GEAR_FIG 801 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | 1600 Series | 1626 HST Refresh | Electrical System | 1626 HST REFRESH_FIG 801 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | 1600 Series | 1626 Gear Refresh | Electrical System | 1626 GEAR REFRESH_FIG 801 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | Max (T4 Series) | Max 24 HST | Electrical | MAX 24 HST_FIG 12 | WIRING HARNESS (1/3) |
| 19458602000 | METER Assy | Max (T4 Series) | Max 26 XL Gear | Electrical | MAX 26 XL GEAR_FIG 10 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | Max (T4 Series) | Max 26 XL HST | Electrical | MAX 26 XL HST_FIG 10 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | Max (T4 Series) | Max 26 XL HST | Fast Moving Parts List | FMPL MAX T4 26HST-FIG 01 | FAST MOVING PARTS LIST |
| 19458602000 | METER Assy | Max (T4 Series) | Max 26 XL Gear | Fast Moving Parts List | FMPL MAX T4 26 GEAR-FIG 01 | FAST MOVING PARTS LIST |
| 19458602000 | METER Assy | Max (T4 Series) | Max 24 HST | Fast Moving Parts List | FMPL MAX T4 24 HST-FIG 01 | FAST MOVING PARTS LIST |
| 19458602000 | METER Assy | Max Series | Max 22 HST | Electrical | '01_MAX22_0001_0063-M' | WIRING HARNESS(1/3) |
| 19458602000 | METER Assy | Max Series | Max 22 HST | Fast Moving Parts List | MAX22-FMP2-13 | FAST MOVING PARTS LIST - PART 2 |
| 19458602000 | METER Assy | Max Series | Max 25 HST | Electrical | 25MAX-WRHR1-14 | WIRING HARNESS (1/3) |
| 19458602000 | METER Assy | Max Series | Max 25 HST | Fast Moving Parts List | MAX25-FMP2-13 | FAST MOVING PARTS LIST - PART 2 |
| 19458602000 | METER Assy | Max Series | Max 28 XL HST | Electrical | '01_MAX28_0001_0063-M' | INSTRUMENT PANEL |
| 19458602000 | METER Assy | Max Series | Max 28 XL Gear | Electrical | MAX28XLG-IP-14 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | Max XL Series | Max 26XLT HST | Electrical System | MAX26 HST_FIG 801 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | Max XL Series | Max 26XLT Gear | Electrical System | MAX 26 GEAR_FIG.801 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | Max XL Series | Max 25 XL HST | Electrical System | MAX 25 XL HST_FIG.801 | INSTRUMENT PANEL |
| 19458602000 | METER Assy | Max XL Series | Max 25 XL HST | Fast Moving Parts List | FMPL MAX 25XL HST_FIG 101 | FAST MOVING PARTS LIST |
| 19458602000 | METER Assy | Max XL Series | Max 26XLT Gear | Fast Moving Parts List | FMPL MAX 26XLT GEAR_FIG 101 | FAST MOVING PARTS LIST |
| 19458602000 | METER Assy | Max XL Series | Max 26XLT HST | Fast Moving Parts List | FMPL MAX 26XLT HST_FIG 101 | FAST MOVING PARTS LIST |
