Mahindra Piston 31N17-03400 31N1703400 – 1526 1626 Max 25 XL Max 26XLT S3L2 Engine

Was: $317.73

Now: $173.99

No reviews yet Write a Review

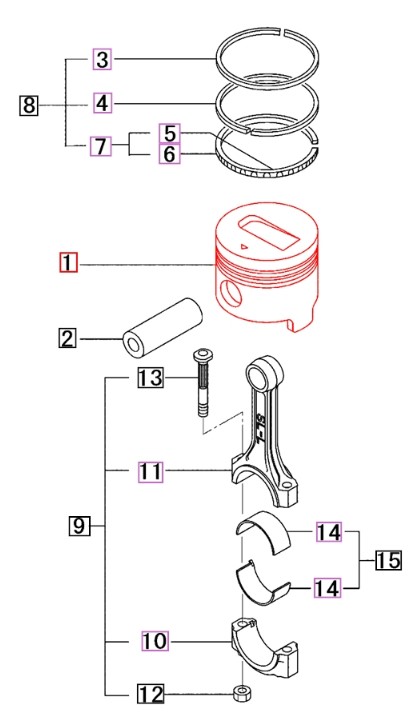

Mahindra piston 31N17-03400 (31N1703400) is a replacement piston used in the main moving parts section of the engine on 1500 Series 1526 Gear 4WD T4 and 1526 HST 4WD T4 tractors. The same piston is specified in the piston and connecting rod groups for 1600 Series 1626 Gear and 1626 HST tractors, including their refresh S3L2‑W415RH engine versions, and for Max XL Series Max 25 XL HST, Max 26XLT Gear and Max 26XLT HST models with S3L2‑W413RH engines.

SKU:: 31N1703400

Product Description
Specifications

PART NUMBER	DESCRIPTION	SERIES	MODEL	AGGREGATE	GROUP NO.	GROUP NAME
31N17-03400 / 31N1703400	Piston	1500 Series	1526 Gear 4WD T4	Engine	1526 GEAR -FIG.106	MAIN MOVING PARTS
31N17-03400 / 31N1703400	Piston	1500 Series	1526 HST 4WD T4	Engine	1526 HST -FIG.106	MAIN MOVING PARTS
31N17-03400 / 31N1703400	Piston	1600 Series	1626 Gear	ENGINE (S3L2-W415RH)	1626 GEAR_FIG 111	PISTON & CONNECTING ROD
31N17-03400 / 31N1703400	Piston	1600 Series	1626 Gear Refresh	ENGINE(S3L2-W415RH)	1626 GEAR REFRESH_FIG 111	PISTON & CONNECTING ROD
31N17-03400 / 31N1703400	Piston	1600 Series	1626 HST	ENGINE (S3L2-W415RH)	1626 HST_FIG 111	PISTON & CONNECTING ROD
31N17-03400 / 31N1703400	Piston	1600 Series	1626 HST Refresh	ENGINE(S3L2-W415RH)	1626 HST REFRESH_FIG 111	PISTON & CONNECTING ROD
31N17-03400 / 31N1703400	Piston	Max XL Series	Max 25 XL HST	ENGINE (S3L2-W413RH)	MAX 25 XL HST_FIG.111	PISTON & CONNECTING ROD
31N17-03400 / 31N1703400	Piston	Max XL Series	Max 26XLT Gear	ENGINE (S3L2-W413RH)	MAX 26 GEAR_FIG.111	PISTON & CONNECTING ROD
31N17-03400 / 31N1703400	Piston	Max XL Series	Max 26XLT HST	ENGINE (S3L2-W413RH)	MAX26 HST_FIG 111	PISTON & CONNECTING ROD

cdk-part-number:: 31N1703400

Model:: 1526

Model:: 1626

Model:: MAX25

Model:: MAX26

Section:: ENGINE
