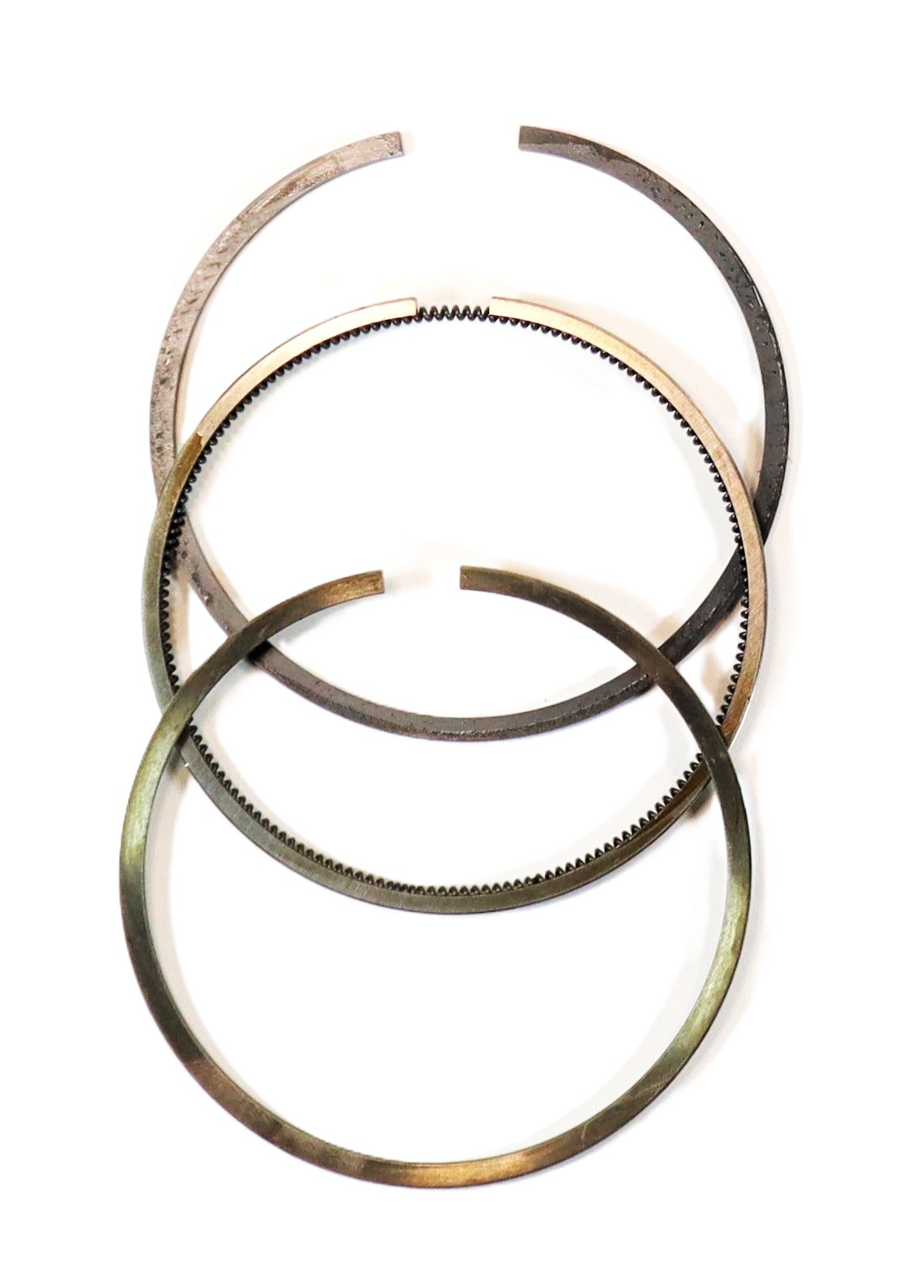

Mahindra Piston Ring Set 006003681B91 Replaces 000022287RD – 3825 4025 4525 475 DI 485 DI 5005 575 DI

Was: $166.90

Now: $159.99

No reviews yet Write a Review

Mahindra piston ring set 006003681B91 is a standard 3-ring piston ring set sold per cylinder for 4-cylinder DI engines, used in the sleeve, piston and connecting rod assemblies on 25 Series 3825 2WD-T4, 4025 2WD-T4, 4025 4WD T4 and 4525 2WD-T4 tractors. The same ring set, superseding 000022287RD and cross-referenced to 005551993R1 and related numbers, is also specified for 05 Series old 475 DI/E40, 485 DI, 5005 and 575 DI tractors in engine assembly and sleeve/piston/rod groups, requiring a quantity of four sets to re-ring all four cylinders.

SKU:: 006003681B91

Product Description
Specifications

*** SOLD PER CYLINDER (4CYL = QTY OF 4 MUST BE PURCHASED) ***

PART NUMBER	DESCRIPTION	SERIES	MODEL	AGGREGATE	GROUP NO.	GROUP NAME
006003681B91 Replaces 000022287RD	SET Piston Ring Consist Of :	25 Series	3825 2WD-T4	Engine	38252WDSPCRA-1-08	SLEEVE, PISTON & CONNECTING ROD ASSEMBLY
006003681B91 Replaces 000022287RD	SET Piston Ring Consist Of :	25 Series	4025 2WD-T4	Engine	40252WDSPCRA-1-08	SLEEVE, PISTON & CONNECTING ROD ASSEMBLY
006003681B91 Replaces 000022287RD	SET Piston Ring Consist Of :	25 Series	4025 4WD T4	Engine	'01_4025_0001_0023-M'	SLEEVE, PISTON & CONNECTING ROD ASSEMBLY
006003681B91 Replaces 000022287RD	SET Piston Ring Consist Of :	25 Series	4525 2WD-T4	Engine	45252WDSPCRA-1-08	SLEEVE, PISTON & CONNECTING ROD ASSEMBLY
006003681B91 Replaces 000022287RD	SET Piston Ring Consist Of :	05 Series Old Tractors	475 DI/E40	Engine	475-EAP-1-09	ENGINE ASSEMBLY AND PACKAGES
006003681B91 Replaces 000022287RD	SET Piston Ring Consist Of :	05 Series Old Tractors	485 DI	Engine	485-EAP-1-09	ENGINE ASSEMBLY AND PACKAGES
006003681B91 Replaces 000022287RD	SET Piston Ring Consist Of :	05 Series Old Tractors	485 DI	Engine	485-SPCRA-1-09	SLEEVE, PISTON & CONNECTING ROD ASSEMBLY
006003681B91 Replaces 000022287RD	SET Piston Ring Consist Of :	05 Series	5005	Engine	5005-SPCRA2-1-09	SLEEVE, PISTON & CONNECTING ROD ASSEMBLY - (PART 2)
006003681B91 Replaces 000022287RD	SET Piston Ring Consist Of :	05 Series Old Tractors	575 DI	Engine	575- EAP-1-09	ENGINE ASSEMBLY AND PACKAGES
006003681B91 Replaces 000022287RD	SET Piston Ring Consist Of :	05 Series Old Tractors	575 DI	Engine	575-SPCRA-1-09	SLEEVE, PISTON & CONNECTING ROD ASSEMBLY

cdk-part-number:: 006003681B91

Section:: ENGINE

Model:: E40

Model:: C27

Model:: C35

Model:: 475

Model:: 485

Model:: 575

Model:: E350

Model:: 3325

Model:: 3505

Model:: 3525

Model:: 3535

Model:: 3825

Model:: 4005

Model:: 4025

Model:: 4035

Model:: 4505

Model:: 4535

Model:: 4525

Model:: 5005

Model:: 5035
