How to find Mahindra parts on BillsTractor.net on desktop and mobile, with option to search by part number.

MAHINDRA

Mahindra Rail Housing Gasket 006504727C2 (Alt 006504727C1 / 000031164B12 / 0000000UT) – 4025 4540 4550 4565 5555 5565 5570 4500 5500 6025 6000 6500 6525 4530 5545 5530 6030 6530

Was: $47.85

Now: $41.99

No reviews yet Write a Review

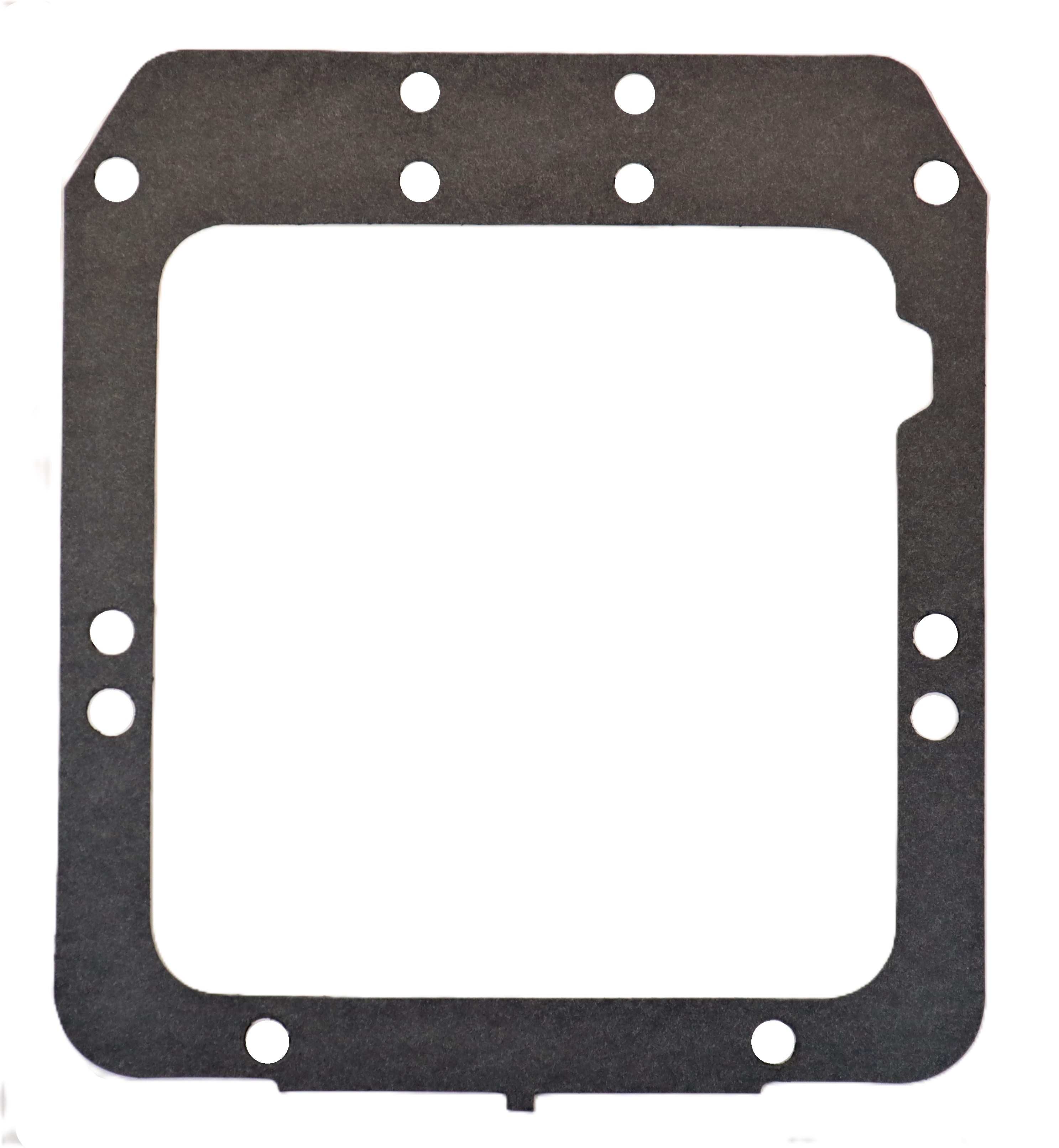

Mahindra rail housing-to-base-plate gasket 006504727C2 (and superseding/alternate gaskets 006504727C1, 000031164B12, 0000000UT), thin cut gasket that seals the rail housing to the transmission case cover/front plate on Mahindra 4025, 4540, 4550, 4565, 5555, 5565, 5570, 4500, 5500, 6025, 6000, 6500, 6525, 4530, 5545, 5530, 6030, and 6530 tractors to prevent gear oil leaks around the gear shifter and PTO rail assembly.

SKU:: 006504727C2

Product Description
Specifications

PART NUMBER	DESCRIPTION	SERIES	MODEL	AGGREGATE	GROUP NAME	QTY
006504727C2	GASKET Rail Housing	25 Series	4025 4WD T4	C.R.P.T.O. & Transmission	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT (PART 2)	1
006504727C2	GASKET Rail Housing	4500 Series	4540 4WD-T4	C.R.P.T.O. & Transmission	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT (PART 2)	1
006504727C2	GASKET Rail Housing	5500 Series	5555 4WD-T4 Synchro	IPTO Gears & Shafts	RAIL HOUSING ASSEMBLY - PART 1	1
006504727C2	GASKET Rail Housing	4500 Series	4550 4WD-T4	C.R.P.T.O & Transmission	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT - PART 2	1
006504727C2	GASKET Rail Housing	4500 Series	4565 2WD-T4	Transmission	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT (FULL CONSTANTMESH TRANSMISSION) (PART 3)	1
006504727C2	GASKET Rail Housing	4500 Series	4550 4WD-T4	C.R.P.T.O & Transmission	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT (PART 2)	1
006504727C2	GASKET Rail Housing	4500 Series	4550 2WD-T4	C.R.P.T.O. & Transmission	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT (PART 2)	1
006504727C2	GASKET Rail Housing	5500 Series	5555 2WD-T4 Synchro	IPTO, SLPTO & Transmission	RAIL HOUSING ASSEMBLY (PART 1)	1
006504727C2	GASKET Rail Housing	5500 Series	5570 2WD-T4 Synchro	SLPTO & Transmission	RAIL HOUSING ASSEMBLY PART 1	1
006504727C2	GASKET Rail Housing	5500 Series	5570 4WD-T4 Synchro	SLPTO & Transmission	RAIL HOUSING ASSEMBLY PART 1	1

*** ALT PART #006504727C1 ***

PART NUMBER	DESCRIPTION	SERIES	MODEL	AGGREGATE	GROUP NAME	QTY
006504727C1	GASKET Rail Housing To Base Plate	25 Series	6025 2WD T2	Transmission	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT - CONSTANTMESH TRANSMISSION (PART 2)	1
006504727C1	GASKET Rail Housing To Base Plate	00 Series	4500 2WD	C.R.P.T.O. & Transmission	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT (PART 2)	1
006504727C1	GASKET Rail Housing To Base Plate	00 Series	5500 2WD	C.R.P.T.O. & Transmission	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT (PART 2)	1
006504727C1	GASKET Rail Housing To Base Plate	30 Series	6530 4WD T2	SLPTO & Transmission	RAIL HOUSING ASSEMBLY (PART 1)	1
006504727C1	GASKET Rail Housing To Base Plate	25 Series	6525 2WD-T3	Transmission	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT (FULL CONSTANTMESH TRANSMISSION) 2	1
006504727C1	GASKET Rail Housing To Base Plate	30 Series	6530 4WD-T3	IPTO, SLPTO & Transmission	RAIL HOUSING ASSEMBLY 1	1

*** ALT PART #000031164B12 ***

PART NUMBER	DESCRIPTION	SERIES	MODEL	AGGREGATE	GROUP NAME	QTY
000031164B12	GASKET, Rail Hsg To Base Plate	30 Series	4530 4WD T2	Transmission	RAIL HOUSING ASSEMBLY - NEW SIDESHIFT (PART 1) - FROM USM 2059	0
000031164B12	GASKET, Rail Hsg To Base Plate	30 Series	4530 4WD T2	Transmission	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT (PART 1) - UPTO USM 2058	1
000031164B12	GASKET, Rail Hsg To Base Plate	30 Series	4530 4WD-T4	IPTO & Transmission	RAIL HOUSING ASSEMBLY - NEW SIDESHIFT (PART 1)	1
000031164B12	GASKET, Rail Hsg To Base Plate	5500 Series	5545 4WD-T4 Synchro	IPTO & Transmission	RAIL HOUSING ASSEMBLY NEW SIDESHIFT (PART 1)	1
000031164B12	GASKET, Rail Hsg To Base Plate	30 Series	5530 4WD T2	IPTO & Transmission	RAIL HOUSING ASSEMBLY (PART 1)	1
000031164B12	GASKET, Rail Hsg To Base Plate	30 Series	6030 4WD T2	IPTO & Transmission	RAIL HOUSING ASSEMBLY (PART 1)	1
000031164B12	GASKET, Rail Hsg To Base Plate	30 Series	5530 2WD-T3	IPTO, SLPTO & Transmisison	RAIL HOUSING ASSEMBLY 1	1
000031164B12	GASKET, Rail Hsg To Base Plate	30 Series	5530 4WD-T3	IPTO, SLPTO & Transmission	RAIL HOUSING ASSEMBLY 1	1
000031164B12	GASKET, Rail Hsg To Base Plate	30 Series	6030 2WD-T3	IPTO, SLPTO & Transmission	RAIL HOUSING ASSEMBLY 1	1
000031164B12	GASKET, Rail Hsg To Base Plate	30 Series	6030 4WD-T3	IPTO, SLPTO & Transmission	RAIL HOUSING ASSEMBLY 1	1

*** ALT PART #0000000UT ***

PART NUMBER	DESCRIPTION	SERIES	MODEL	AGGREGATE	GROUP NAME	QTY
0000000UT	GASKET Rail Housing To Base Plate	00 Series	6000 2WD	C.R.P.T.O. & Transmission	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT (PART 2)	1
0000000UT	GASKET Rail Housing To Base Plate	30 Series	5530 2WD-T3 (Synchro Shuttle)	IPTO, SLPTO & Transmission	RAIL HOUSING ASSEMBLY (PART 1)	1
0000000UT	GASKET Rail Housing To Base Plate	00 Series	6500 2WD	C.R.P.T.O. & Transmission	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT (PART 2)	1
0000000UT	GASKET Rail Housing To Base Plate	30 Series	6530 2WD-T3	IPTO, SLPTO & Transmission	RAIL HOUSING ASSEMBLY 1	1
0000000UT	GASKET Rail Housing To Base Plate	25 Series	6525 2WD-T3	Transmission	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT (FULL CONSTANTMESH TRANSMISSION) 2	1
0000000UT	GASKET Rail Housing To Base Plate	30 Series	6530 2WD-T3 (Synchro Shuttle)	SLPTO & Transmission	RAIL HOUSING ASSEMBLY (PART 1)	1
0000000UT	GASKET Rail Housing To Base Plate	5500 Series	5565 4WD-T4 Synchro	SLPTO & Transmission	RAIL HOUSING ASSEMBLY - PART 1	1
0000000UT	GASKET Rail Housing To Base Plate	4500 Series	4565 2WD-T4	Transmission	GEAR SHIFTER MECHANISM & TRANSMISSION CASE COVER FRONT (FULL CONSTANTMESH TRANSMISSION) (PART 2)	1
0000000UT	GASKET Rail Housing To Base Plate	5500 Series	5565 2WD-T4 Synchro	IPTO, SLPTO & Transmission	RAIL HOUSING ASSEMBLY (PART 1)	1
