MAHINDRA

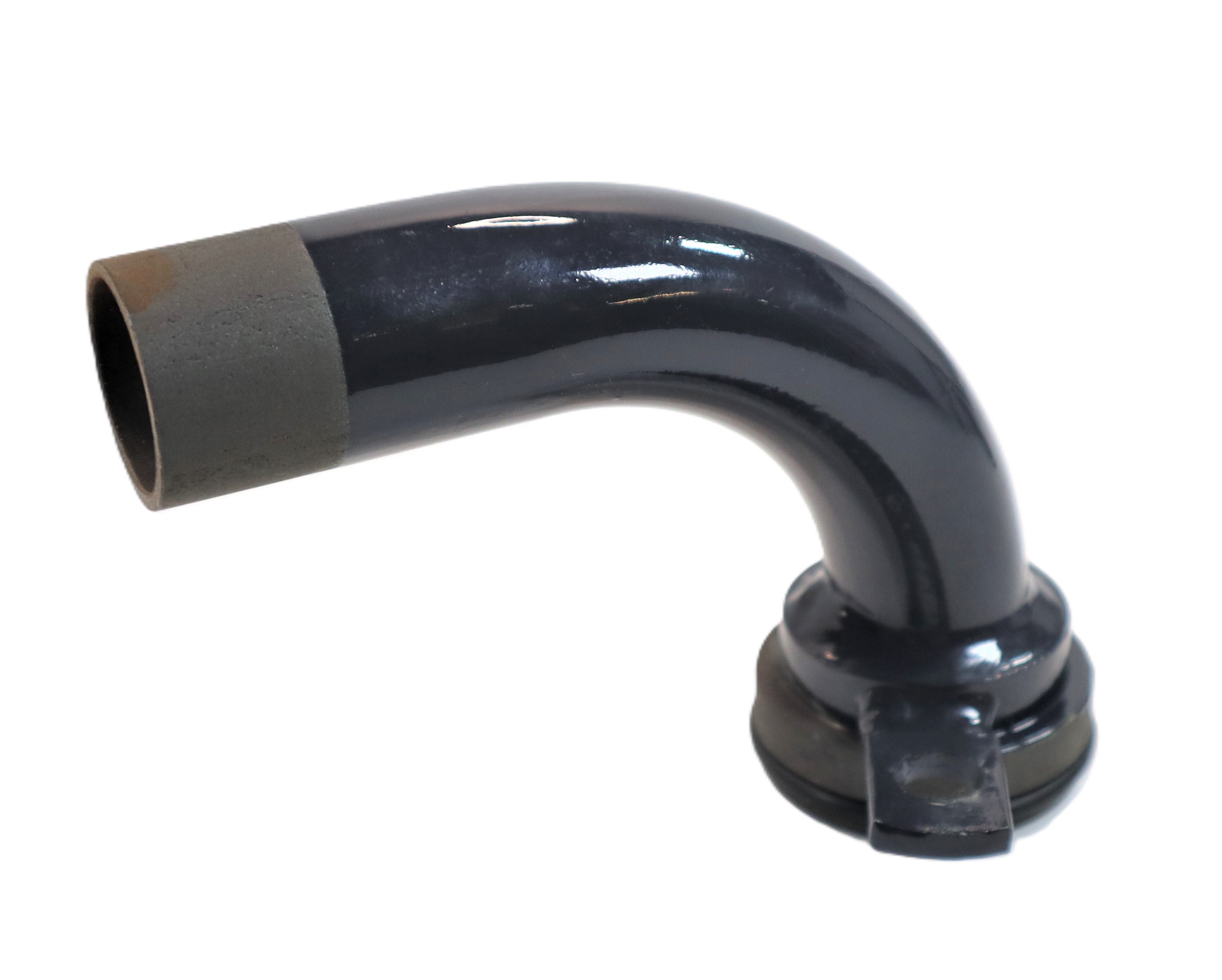

Mahindra Rear Suction Hydraulic Pipe 12305152300DG 12305152300 For 3510 4110 4510 Tractors

Was: $120.55

Now: $99.99

No reviews yet Write a Review

Mahindra rear suction hydraulic pipe 12305152300DG / 12305152300 for 3510 4WD gear, 4110 T4 and 4510 cab tractors routes hydraulic return oil through the spin‑on filter to the pump; match your tractor model and serial range (old vs new sheet metal on 3510) to ensure proper fit.

SKU:: 12305152300

UPC:: 4815

Product Description
Specifications

PART NUMBER	DESCRIPTION	SERIES	MODEL	AGGREGATE	GROUP NO.	GROUP NAME
12305152300DG / 12305152300	PIPE Comp, RR Suction	10 Series	3510 4WD Gear (New Sheet Metal) - From SN# 351V	Hydraulics (New Sheet Metal) - 3510	01080195	HYDRAULIC PIPE (PART 2)
12305152300DG / 12305152300	PIPE Comp, RR Suction	10 Series	3510 4WD Gear (Old Sheet Metal) - SN# 351S - 351U	Chassis (Old Sheet Metal) - 3510	01210213	HYDRAULIC PIPE 2
12305152300DG / 12305152300	PIPE Comp, RR Suction	10 Series	4110 -T4	Chassis	4110T4-HP2SOT-1-09	HYDRAULIC PIPE (2) SPIN ON TYPE
12305152300DG / 12305152300	PIPE Comp, RR Suction	10 Series	4510 Cabin T4	Chassis	4510CT4C-HPSOT-2-10	HYDRAULIC PIPE (2) - SPIN ON TYPE
12305152300DG / 12305152300	PIPE Comp, RR Suction	10 Series	4510 Cabin T2	Chassis	4510C-HYP3-12	HYDRAULIC PIPE (3)-SPIN ON TYPE

cdk-part-number:: 12305152300

Section:: HYDRAULIC

Section:: HYDRAULIC HOSE

Model:: 3510

Model:: 4110

Model:: 4510
