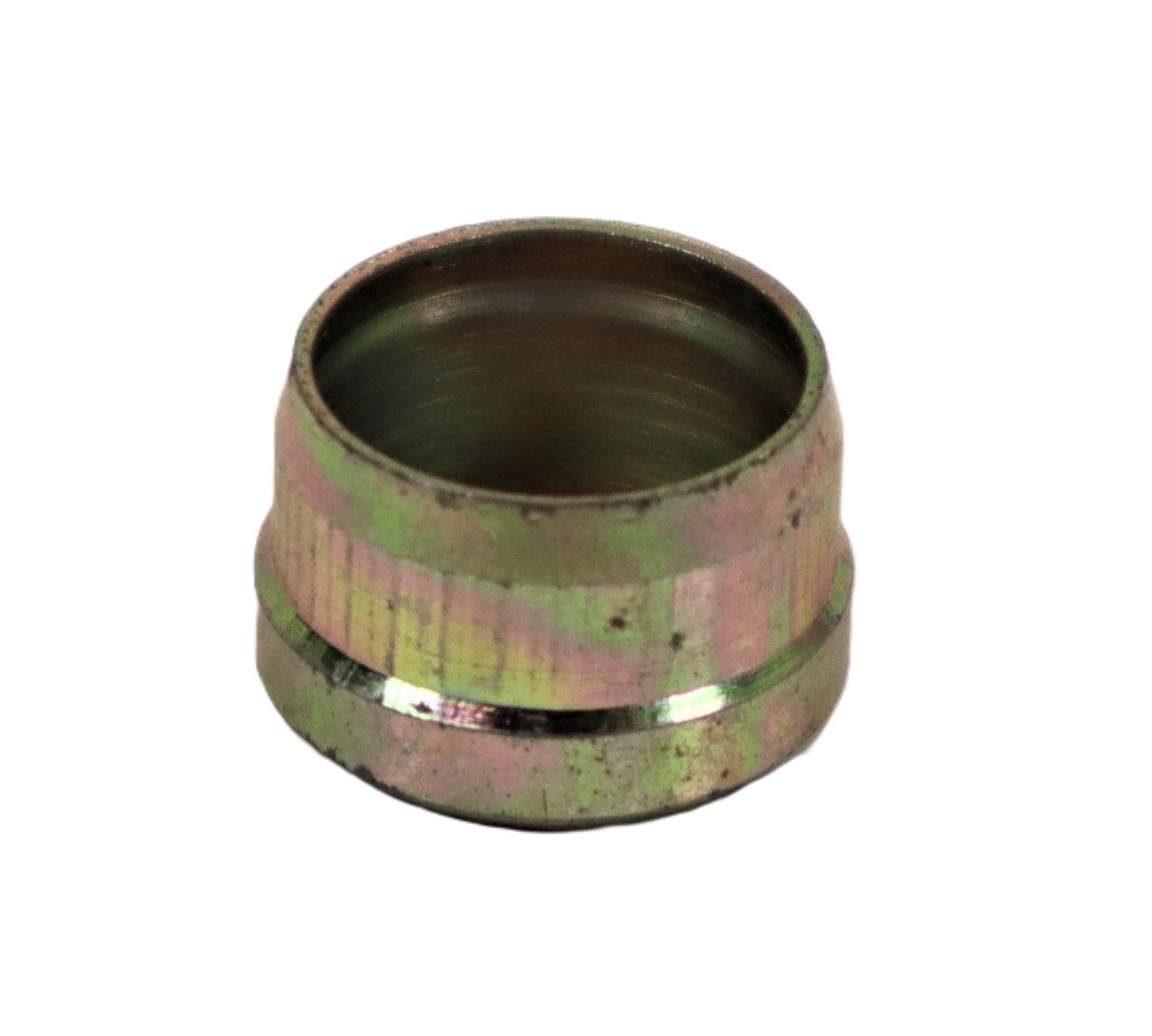

SEALING RING (COMPRESSION FITTING) FOR HIGH PRESSURE HYDRAULIC LINE (000705519R4)

Was: $11.20
Now: $8.40
No reviews yet Write a Review
SKU:
000705519R4

SEALING RING (COMPRESSION FITTING) FOR HIGH PRESSURE HYDRAULIC LINE (000705519R4) - ITEM #
*** SOLD PER EACH ***
*** ALT PART #'S: 000705519R3 & 000705519R1 ***

PART NUMBER DESCRIPTION SERIES MODEL AGGREGATE GROUP NAME QTY USED ON TRACTOR

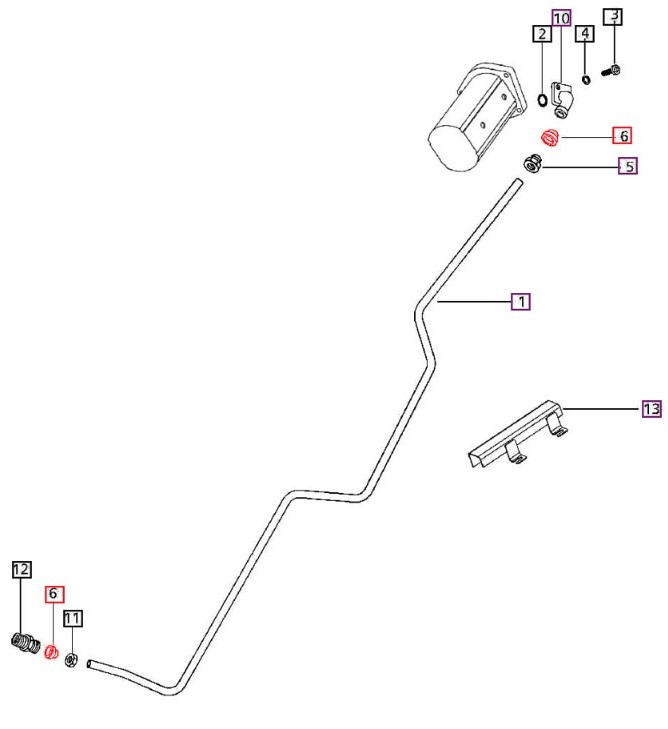

000705519R4 RING Sealing 05 Series 3505 Hydraulics HYDRAULIC PIPES - SUCTION & PRESSURE PIPES 2
000705519R4 RING Sealing 25 Series 3325 2WD T2 Hydraulics HYDRAULIC PIPES - SUCTION & PRESSURE PIPES 2
000705519R4 RING Sealing 25 Series 3525 2WD T2 Hydraulics HYDRAULIC PIPES - SUCTION & PRESSURE PIPES 2
000705519R4 RING Sealing 05 Series C4005 Hydraulics HYDRAULIC PIPES - SUCTION & PRESSURE PIPES 2
000705519R4 RING Sealing 05 Series E350 Hydraulics HYDRAULIC PIPES - SUCTION & PRESSURE PIPES 2
000705519R4 RING Sealing 25 Series 3825 2WD-T4 Hydraulics HYDRAULIC PRESSURE PIPES 2
000705519R4 RING Sealing 25 Series 4025 2WD-T4 Hydraulics HYDRAULIC PRESSURE PIPES 2
000705519R4 RING Sealing 25 Series 4525 2WD-T4 Hydraulics HYDRAULIC PRESSURE PIPES 2
000705519R4 RING Sealing 4500 Series 4540 2WD-T4 Hydraulics HYDRAULIC PRESSURE PIPES 2
000705519R3 RING Sealing 05 Series Old Tractors 475 DI/E40 Hydraulics HYDRAULIC PIPES - SUCTION & PRESSURE PIPES 1
000705519R3 RING Sealing 05 Series Old Tractors 485 DI Hydraulics HYDRAULIC PIPES - SUCTION AND PRESSURE PIPES 1
000705519R3 RING Sealing 05 Series Old Tractors 575 DI Hydraulics HYDRAULIC PIPES - SUCTION AND PRESSURE PIPES 1



cdk-part-number:
000705519R4
Section:
HYDRAULIC
Section:
SEAL
Model:
E40
Model:
E350
Model:
475
Model:
485
Model:
575
Model:
3325
Model:
3505
Model:
3525
Model:
3825
Model:
4005
Model:
4025
Model:
4525
Model:
4540
