Mahindra Magnetic Drain Plug Assembly 16701015001 – Transmission Rear/Mid Case & Front Axle Housing - eMax, 10, 2500, 2600, 9000, mForce 100/105/105XL and 2600 Series Tractors

Was: $27.75
Now: $16.99
No reviews yet Write a Review
Mahindra 16701015001 magnetic drain plug assembly, steel plug with built‑in magnet and sealing washer that threads into transmission and front axle drain ports on various Mahindra tractors to drain oil and trap fine metal particles.
SKU:
16701015001
PART NUMBER DESCRIPTION SERIES MODEL AGGREGATE GROUP NO. GROUP NAME QTY USED ON TRACTOR REF NO.
16701015001 PLUG Assy, Drain (Magnet) 10 Series 5010 Gear 4WD Chassis 5010G-C-TRANSMIDCASE-11 TRANSMISSION MID CASE 1 012
16701015001 PLUG Assy, Drain (Magnet) 10 Series 5010 Gear Cabin Chassis 5010-CAB-TRANMC-1-11 TRANSMISSION MID CASE 1 012
16701015001 PLUG Assy, Drain (Magnet) 10 Series 5010 HST Cabin Chassis 5010-HST-MITRACA-1-11 MID TRANSMISSION CASE 1 016
16701015001 PLUG Assy, Drain (Magnet) 10 Series 5010 HST Cabin Chassis 5010-HST-TRANRECA-1-11 TRANSMISSION REAR CASE 1 009
16701015001 PLUG Assy, Drain (Magnet) 10 Series 4010 Gear Transmission & Rear Axle '01_4010_0001_0089-M' TRANSMISSION REAR CASE 1 12
16701015001 PLUG Assy, Drain (Magnet) 10 Series 4010 HST Transmission & Rear Axle '01_4010HST_0001_0089-M' MID P.T.O SPEED GEARS & SHIFTER 1 2
16701015001 PLUG Assy, Drain (Magnet) 10 Series 6010 HST Cabin Chassis '6010SH_0077-M' MID TRANSMISSION CASE 1 16
16701015001 PLUG Assy, Drain (Magnet) 10 Series 6010 HST Cabin Chassis '6010SH_0081-M' TRANSMISSION REAR CASE 1 9
16701015001 PLUG Assy, Drain (Magnet) 10 Series 6110 Gear Cabin Chassis '6110ST_0085-M' TRANSMISSION MID CASE 1 12

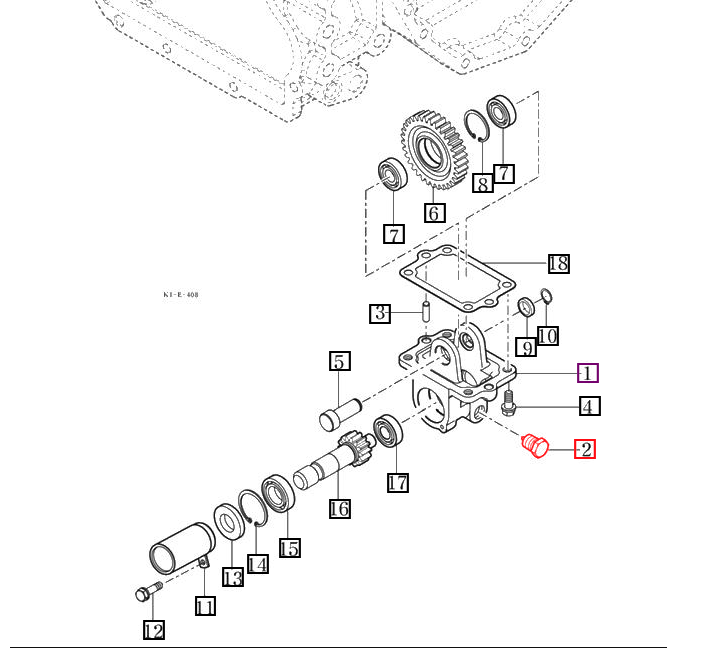

16701015001 PLUG Assy, Drain (Magnet) eMax (T4 Series) eMax 22 Gear Chassis EMAX 22 GEAR_FIG 40 MID P.T.O. GEAR 1 2
16701015001 PLUG Assy, Drain (Magnet) eMax (T4 Series) eMax 22 HST Chassis EMAX 22 HST_FIG 39 MID P.T.O. GEAR 1 002
16701015001 PLUG Assy, Drain (Magnet) eMax (T4 Series) eMax 25 HST Chassis EMAX 25 HST_FIG 39 MID P.T.O GEAR 1 002
16701015001 PLUG Assy, Drain (Magnet) 2500 Series 2540 Gear T4 Transmission & Rear Axle 2540 T4_FIG 411 TRANSMISSION REAR CASE 1 012
16701015001 PLUG Assy, Drain (Magnet) 2500 Series 2555 Gear T4 Transmission & Rear Axle 2555 GEAR T4_FIG 408 TRANSMISSION MID CASE 1 012
16701015001 PLUG Assy, Drain (Magnet) 2500 Series 2555 Gear Cabin T4 Transmission & Rear Axle 2555 G CABIN T4_FIG 408 TRANSMISSION MID CASE 1 012
16701015001 PLUG Assy, Drain (Magnet) 2500 Series 2555 HST T4 Transmission & Rear Axle 2555 HST T4_FIG 403 MID TRANSMISSION CASE 1 016
16701015001 PLUG Assy, Drain (Magnet) 2500 Series 2555 HST T4 Transmission & Rear Axle 2555 HST T4_FIG 405 TRANSMISSION REAR CASE 1 009
16701015001 PLUG Assy, Drain (Magnet) 2500 Series 2555 HST Cabin T4 Transmission & Rear Axle 2555 HST CABIN T4_FIG 403 MID TRANSMISSION CASE 1 016
16701015001 PLUG Assy, Drain (Magnet) 2500 Series 2555 HST Cabin T4 Transmission & Rear Axle 2555 HST CABIN T4_FIG 405 TRANSMISSION REAR CASE 1 009
16701015001 PLUG Assy, Drain (Magnet) 2500 Series 2565 Gear Cabin T4 Transmission & Rear Axle 2565 G CABIN T4_FIG 408 TRANSMISSION MID CASE 1 012

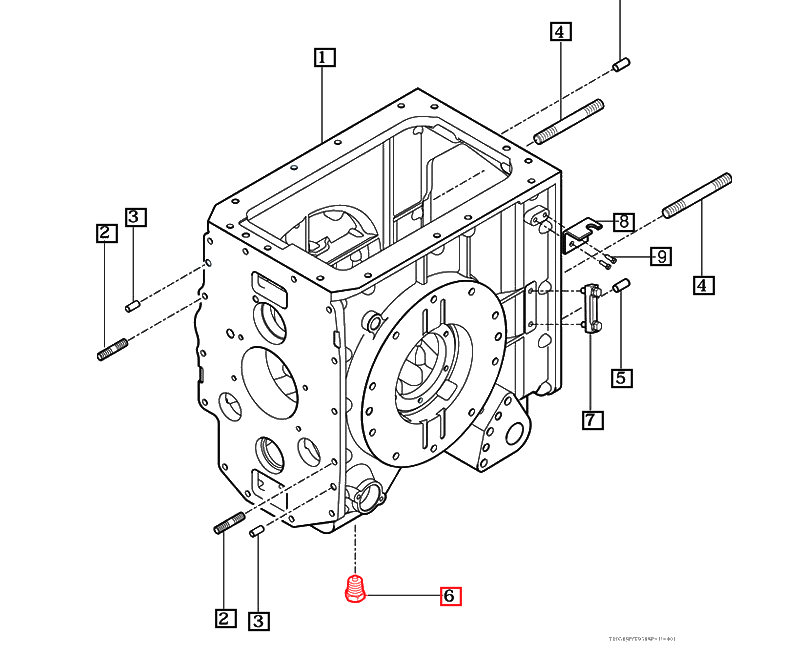

16701015001 PLUG Assy, Drain (Magnet) mForce 105 Series mForce 105(P)remium Cabin Transmission & Rear Axle MFORCE 105(P)_FIG 401 CASE SUB, RR TRANSMISSION 1 006
16701015001 PLUG Assy, Drain (Magnet) mForce 105 Series mForce 105(P)remium Cabin Front Axle, Supporter & Drive Shaft MFORCE 105(P)_FIG 503 FRONT AXLE HOUSING 1 015
16701015001 PLUG Assy, Drain (Magnet) mForce 105 Series mForce 105(S)tandard Cabin Transmission & Rear Axle MFORCE 105(S)_FIG 401 CASE SUB, RR TRANSMISSION 1 006
16701015001 PLUG Assy, Drain (Magnet) mForce 105 Series mForce 105(S)tandard Cabin Front Axle, Supporter & Drive Shaft MFORCE 105(S)_FIG 503 FRONT AXLE HOUSING 1 015
16701015001 PLUG Assy, Drain (Magnet) 2500 Series 2538 HST T4 Chassis 2538 HST T4 -FIG 411 TRANSMISSION REAR CASE 1 4
16701015001 PLUG Assy, Drain (Magnet) 2500 Series 2538 HST T4 Chassis 2538 HST T4 -FIG 414 MID P.T.O GEARS 1 19
16701015001 PLUG Assy, Drain (Magnet) 2500 Series 2555 HST T4 Option Equipment 2555 HST T4_FIG 416 MID P.T.O(OPTION) 1 002
16701015001 PLUG Assy, Drain (Magnet) 2500 Series 2555 HST Cabin T4 Option Equipment 2555 HST CABIN T4_FIG 416 MID P.T.O(OPTION) 1 002
16701015001 PLUG Assy, Drain (Magnet) 2500 Series 2538 HST Cabin T4 Transmission & Rear Axle 2538 G CABIN_FIG 411 TRANSMISSION REAR CASE 1 004
16701015001 PLUG Assy, Drain (Magnet) 2500 Series 2538 HST Cabin T4 Transmission & Rear Axle 2538 G CABIN_FIG 414 MID P.T.O GEARS 1 015
16701015001 PLUG Assy, Drain (Magnet) eMax (T4 Series) eMax 22 Steel Gear Chassis EMAX 22G -FIG 408 MID P.T.O GEAR 1 002
16701015001 PLUG Assy, Drain (Magnet) eMax (T4 Series) eMax 22 Steel HST Chassis EMAX 22S HST -FIG 408 MID P.T.O GEAR 1 002
16701015001 PLUG Assy, Drain (Magnet) eMax (T4 Series) eMax 25 Steel HST Chassis EMAX 25S HST -FIG 408 MID P.T.O GEAR 1 002
16701015001 PLUG Assy, Drain (Magnet) 2500 Series 2545 Gear Cabin T4 Transmission & Rear Axle 2545 GC T4_FIG 411 TRANSMISSION REAR CASE 1 012
16701015001 PLUG Assy, Drain (Magnet) 2500 Series 2545 Gear T4 Transmission & Rear Axle 2545 G T4_FIG 411 TRANSMISSION REAR CASE 1 012
16701015001 PLUG Assy, Drain (Magnet) 9000 Series 9110P CAB Front Axle,Supporter & Drive Shaft 9000 P. SERIES_FIG 503 FRONT AXLE HOUSING 1 015
16701015001 PLUG Assy, Drain (Magnet) 9000 Series 9125P CAB Front Axle,Supporter & Drive Shaft 9000 P. SERIES_FIG 503 FRONT AXLE HOUSING 1 015
16701015001 PLUG Assy, Drain (Magnet) 9000 Series 9110S CAB Front Axle,Supporter & Drive Shaft 9000 S. SERIES_FIG 503 FRONT AXLE HOUSING 1 015
16701015001 PLUG Assy, Drain (Magnet) 9000 Series 9125S CAB Front Axle,Supporter & Drive Shaft 9000 S. SERIES_FIG 503 FRONT AXLE HOUSING 1 015
16701015001 PLUG Assy, Drain (Magnet) mForce105XL Series mForce105XL-S Transmission & Rear Axle M105XL-S_FIG 401 CASE SUB, RR TRANSMISSION 1 006
16701015001 PLUG Assy, Drain (Magnet) mForce105XL Series mForce105XL-S Front Axle, Supporter and Drive Shaft M105XL-S_FIG 503 FRONT AXLE HOUSING 1 015
16701015001 PLUG Assy, Drain (Magnet) mForce105XL Series mForce105XL-P Transmission & Rear Axle M105XL-P_FIG 401 CASE SUB, RR TRANSMISSION 1 006
16701015001 PLUG Assy, Drain (Magnet) mForce105XL Series mForce105XL-P Front Axle, Supporter and Drive Shaft M105XL-P_FIG 503 FRONT AXLE HOUSING 1 015
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2638 HST OS Transmission & Rear Axle 2638 HST OS_FIG 411 TRANSMISSION REAR CASE 1 004
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2638 HST OS Transmission & Rear Axle 2638 HST OS_FIG 414 MID P.T.O GEARS 1 015
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2638 HST CAB Transmission & Rear Axle 2638 HST CAB_FIG 411 TRANSMISSION REAR CASE 1 004
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2638 HST CAB Transmission & Rear Axle 2638 HST CAB_FIG 414 MID P.T.O GEARS 1 015
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2645 Gear OS Transmission & Rear Axle 2645 GEAR OS_FIG 411 TRANSMISSION REAR CASE 1 012
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2645 Gear Cab Transmission & Rear Axle 2645 GEAR CAB_FIG 411 TRANSMISSION REAR CASE 1 012
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2655 Gear Transmission & Rear Axle 2655 GEAR_FIG 408 TRANSMISSION MID CASE 1 012
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2655 Gear Cabin Transmission & Rear Axle 2655 GEAR CABIN_FIG 408 TRANSMISSION MID CASE 1 012
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2655 HST OS Transmission & Rear Axle 2655 HST OS_FIG 403 MID TRANSMISSION CASE 1 016
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2655 HST OS Transmission & Rear Axle 2655 HST OS_FIG 405 TRANSMISSION REAR CASE 1 009
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2655 HST OS Transmission & Rear Axle 2655 HST OS_FIG 416 MID P.T.O(OPTION) 1 002
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2655 HST CABIN Transmission & Rear Axle 2655 HST CABIN_FIG 403 MID TRANSMISSION CASE 1 016
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2655 HST CABIN Transmission & Rear Axle 2655 HST CABIN_FIG 405 TRANSMISSION REAR CASE 1 009
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2655 HST CABIN Transmission & Rear Axle 2655 HST CABIN_FIG 416 MID P.T.O (OPTION) 1 002
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2665 GEAR CABIN Transmission & Rear Axle 2665 GEAR CABIN_FIG 408 TRANSMISSION MID CASE 1 012
16701015001 PLUG Assy, Drain (Magnet) eMax L Series eMax  L22 HST Transmission & Rear Axle EMAXL 22 HST _FIG 408 MID P.T.O GEAR 1 002
16701015001 PLUG Assy, Drain (Magnet) eMax L Series eMax L22 Gear Transmission & Rear Axle EMAXL 22GEAR _FIG 408 MID P.T.O GEAR 1 002
16701015001 PLUG Assy, Drain (Magnet) eMax L Series eMax L25 HST Transmission & Rear Axle EMAXL 25 HST _FIG 408 MID P.T.O GEAR 1 002
16701015001 PLUG Assy, Drain (Magnet) mForce 100 Series mForce 100 (P)remium Cabin Chassis 100P-FIG. 503 FRONT AXLE HOUSING 1 015
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2660 HST CABIN Transmission & Rear Axle 2660 HST CABIN 2020_FIG   403 MID TRANSMISSION CASE 1 016
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2660 HST CABIN Transmission & Rear Axle 2660 HST CABIN 2020_FIG   405 TRANSMISSION REAR CASE 1 009
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2660 HST CABIN Transmission & Rear Axle 2660 HST CABIN 2020_FIG   416 MID P.T.O(OPTION) 1 002
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2670 PST CABIN Transmission & Rear Axle 2670 PST CABIN 2020_FIG  408 TRANSMISSION MID CASE 1 012
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2660 PST Transmission & Rear Axle 2660 PST 2020_FIG  409 TRANSMISSION MID CASE 1 012
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2660 PST CABIN Transmission & Rear Axle 2660 PST CABIN 2020_FIG  409 TRANSMISSION MID CASE 1 012
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2660 HST Transmission & Rear Axle 2660 HST 2020_FIG  403 MID TRANSMISSION CASE 1 016
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2660 HST Transmission & Rear Axle 2660 HST 2020_FIG  405 TRANSMISSION REAR CASE 1 009
16701015001 PLUG Assy, Drain (Magnet) 2600 series 2660 HST Transmission & Rear Axle 2660 HST 2020_FIG  416 MID P.T.O (OPTION) 1 002
cdk-part-number:
16701015001
Model:
EMAX22
Model:
EMAX25
Model:
2538
Model:
2540
Model:
2545
Model:
2555
Model:
2565
Model:
MFORCE 100
Model:
MFORCE 105
Model:
2660
Model:
2670
Model:
9110
Model:
9125
Section:
OIL DRAIN
Section:
TRANSMISSION
Section:
HYDRAULIC
Model:
4010
Model:
5010
Model:
6010
Model:
6110
