Mahindra Water Pump Gasket MM409326 For 15 1500 16 1600 Max And Max XL Series Tractors

Was: $16.26
Now: $8.99
No reviews yet Write a Review

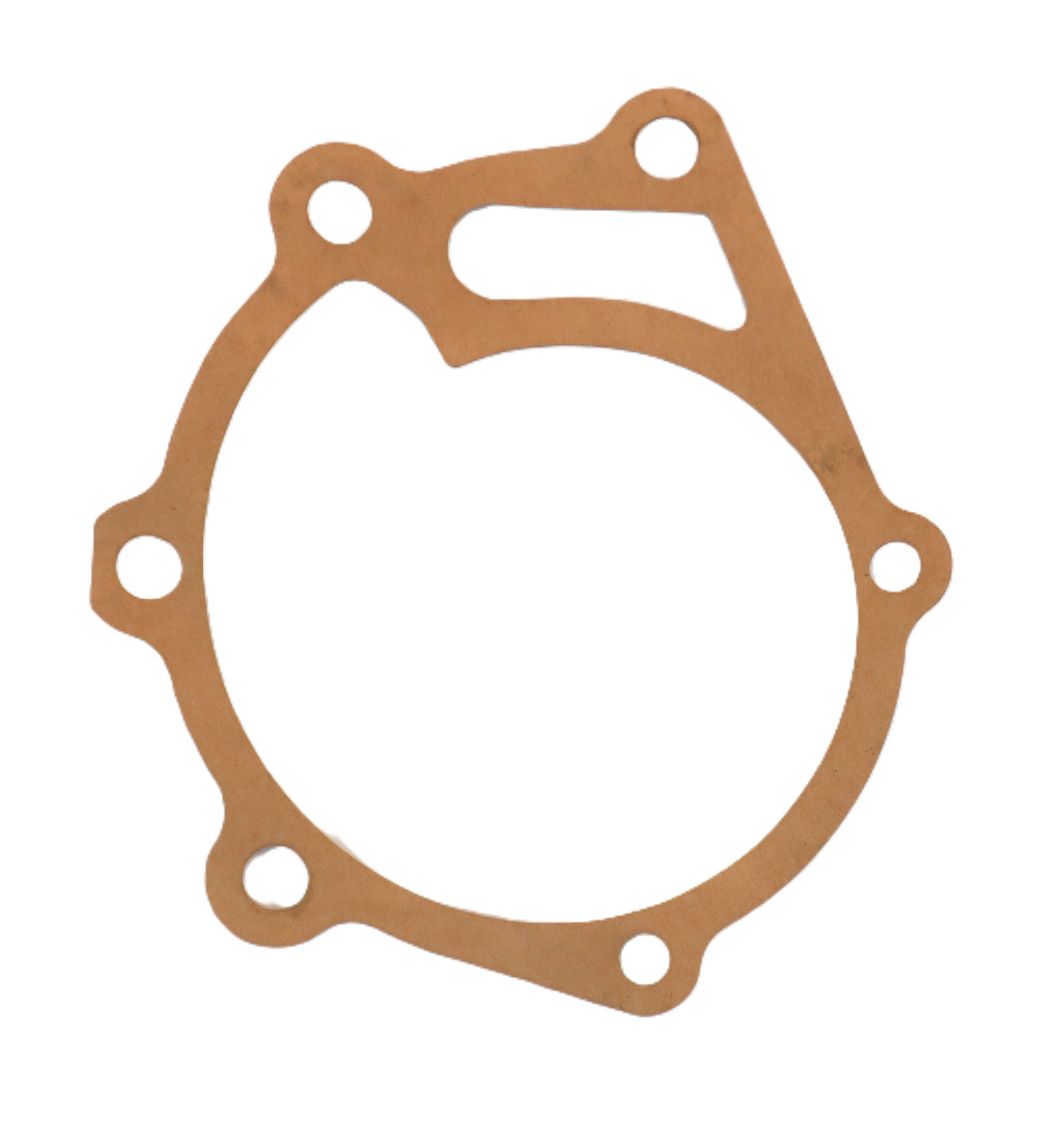

Mahindra internal water pump gasket MM409326 for Mahindra 1526 1626 2015 2216 2415 2516 2615 2816 3015 3016 Max 22 24 25 26 28 and Max XL 25 26XLT tractors, used between the water pump and engine block to seal coolant passages and prevent leaks in the cooling system.
SKU:
MM409326
PART NUMBER DESCRIPTION SERIES MODEL AGGREGATE GROUP NO. GROUP NAME
MM409326 Gasket, Water Pump 15 Series 2015 Gear 4WD Engine 01150033 COOLING PARTS
MM409326 Gasket, Water Pump 15 Series 2015 Gear 4WD Engine 01150043 REPAIR GASKET KIT
MM409326 Gasket, Water Pump 15 Series 2015 Gear 4WD Fast Moving Parts List 15-2015G-1-FMPL-13 FAST MOVING PARTS LIST 1
MM409326 Gasket, Water Pump 15 Series 2015 HST 4WD Engine 01120129 COOLING PARTS
MM409326 Gasket, Water Pump 15 Series 2015 HST 4WD Engine 01120139 REPAIR GASKET KIT
MM409326 Gasket, Water Pump 15 Series 2015 HST 4WD Fast Moving Parts List 15-2015H4-1-FMPL-13 FAST MOVING PARTS LIST 1
MM409326 Gasket, Water Pump 15 Series 2415 HST Engine (S3L2-W211RH) 6P05010049 OVERHAUL GASKET KIT
MM409326 Gasket, Water Pump 15 Series 2415 Gear Engine (S3L2-W211RH) 6P05010049 OVERHAUL GASKET KIT
MM409326 Gasket, Water Pump 15 Series 2415 HST Engine (S3L2-W211RH) 6P05010027 COOLING SYSTEM
MM409326 Gasket, Water Pump 15 Series 2415 Gear Engine (S3L2-W211RH) 6P05010027 COOLING SYSTEM
MM409326 Gasket, Water Pump 15 Series 2415 HST Fast Moving Parts List 15-2415H-1-FMPL-13 FAST MOVING PARTS LIST 1
MM409326 Gasket, Water Pump 15 Series 2415 Gear Fast Moving Parts List 15-2415G-1-FMPL-13 FAST MOVING PARTS LIST 1
MM409326 Gasket, Water Pump 15 Series 2615 Gear Engine 01160031 COOLING PARTS
MM409326 Gasket, Water Pump 15 Series 2615 Gear Engine 01160041 REPAIR GASKET KIT
MM409326 Gasket, Water Pump 15 Series 2615 Gear Fast Moving Parts List 15-2615G-1-FMPL-13 FAST MOVING PARTS LIST 1
MM409326 Gasket, Water Pump 15 Series 2615 HST 4WD Engine 01140033 COOLING PARTS
MM409326 Gasket, Water Pump 15 Series 2615 HST 4WD Engine 01140043 REPAIR GASKET KIT
MM409326 Gasket, Water Pump 15 Series 2615 HST 4WD Fast Moving Parts List 15-2615H4-1-FMPL-13 FAST MOVING PARTS LIST 1
MM409326 Gasket, Water Pump 15 Series 3015 HST Engine 01140197 COOLING PARTS (-50671)
MM409326 Gasket, Water Pump 15 Series 3015 HST Engine 01140207 REPAIR GASKET KIT (-50671)
MM409326 Gasket, Water Pump 15 Series 3015 HST Engine 01140237 COOLING PARTS (50672-)
MM409326 Gasket, Water Pump 15 Series 3015 HST Fast Moving Parts List 15-3015H-1-FMPL-13 FAST MOVING PARTS LIST 1
MM409326 Gasket, Water Pump 1500 Series 1526 Gear 4WD T4 Engine 1526 GEAR -FIG.115 COOLING PARTS
MM409326 Gasket, Water Pump 1500 Series 1526 Gear 4WD T4 Engine 1526 GEAR -FIG.120 REPAIR GASKET KIT
MM409326 Gasket, Water Pump 1500 Series 1526 HST 4WD T4 Engine 1526 HST -FIG.115 COOLING PARTS
MM409326 Gasket, Water Pump 1500 Series 1526 HST 4WD T4 Engine 1526 HST -FIG.120 REPAIR GASKET KIT
MM409326 Gasket, Water Pump 16 Series 2816 Gear Engine 2816GCP-1-08 COOLING PARTS
MM409326 Gasket, Water Pump 16 Series 2816 Gear Engine 2816GRGK-1-08 REPAIR GASKET KIT
MM409326 Gasket, Water Pump 16 Series 2816 Gear Fast Moving Parts List 16-2816G-1-FMPL-13 FAST MOVING PARTS LIST 1
MM409326 Gasket, Water Pump 16 Series 2816 HST 4WD Engine 2816HCP-1-08 COOLING PARTS
MM409326 Gasket, Water Pump 16 Series 2816 HST 4WD Engine 2816HRGK-1-08 REPAIR GASKET KIT
MM409326 Gasket, Water Pump 16 Series 2816 HST 4WD Fast Moving Parts List 16-2816H4-1-FMPL-13 FAST MOVING PARTS LIST 1
MM409326 Gasket, Water Pump 16 Series 2516 Gear Engine 2516GCS-1-08 COOLING SYSTEM
MM409326 Gasket, Water Pump 16 Series 2516 Gear Engine 2516GOGK1-1-08 OVERHAUL GASKET KIT
MM409326 Gasket, Water Pump 16 Series 2516 Gear Fast Moving Parts List 16-2516G-1-FMPL-13 FAST MOVING PARTS LIST 1
MM409326 Gasket, Water Pump 16 Series 2516 HST Engine 2516HCS-1-08 COOLING SYSTEM
MM409326 Gasket, Water Pump 16 Series 2516 HST Engine 2516HOGK-1-08 OVERHAUL GASKET KIT
MM409326 Gasket, Water Pump 16 Series 2516 HST Fast Moving Parts List 16-2516H-1-FMPL-13 FAST MOVING PARTS LIST 1
MM409326 Gasket, Water Pump 16 Series 2216 Gear Engine 2216GECS-1-08 COOLING SYSTEM
MM409326 Gasket, Water Pump 16 Series 2216 Gear Engine 2216GERGK-1-08 REPAIR GASKET KIT
MM409326 Gasket, Water Pump 16 Series 2216 Gear Fast Moving Parts List 16-2216G-1-FMPL-13 FAST MOVING PARTS LIST 1
MM409326 Gasket, Water Pump 16 Series 2216 HST Engine 2216H-CS-1-08 COOLING SYSTEM
MM409326 Gasket, Water Pump 16 Series 2216 HST Engine 2216H-RGK-1-08 REPAIR GASKET KIT
MM409326 Gasket, Water Pump 16 Series 2216 HST Fast Moving Parts List 16-2216H-1-FMPL-13 FAST MOVING PARTS LIST 1
MM409326 Gasket, Water Pump 16 Series 3016 Gear Engine (S3L2-Y315R) 3016G-CPARTS-10 COOLING PARTS
MM409326 Gasket, Water Pump 16 Series 3016 Gear Engine (S3L2-Y315R) 3016G-RGK-10 REPAIR GASKET KIT
MM409326 Gasket, Water Pump 16 Series 3016 Gear Fast Moving Parts List 16-3016G-1-FMPL-13 FAST MOVING PARTS LIST 1
MM409326 Gasket, Water Pump 16 Series 3016 HST Engine 3016H-CP-10 COOLING PARTS
MM409326 Gasket, Water Pump 16 Series 3016 HST Engine 3016H-RGK-10 REPAIR GASKET KIT
MM409326 Gasket, Water Pump 16 Series 3016 HST Fast Moving Parts List 16-3016H-1-FMPL-13 FAST MOVING PARTS LIST 1
MM409326 Gasket, Water Pump 1600 Series 1626 HST ENGINE (S3L2-W415RH) 1626 HST_FIG 118 WATER PUMP
MM409326 Gasket, Water Pump 1600 Series 1626 HST ENGINE (S3L2-W415RH) 1626 HST_FIG 137 OVERHAUL GASKET KIT
MM409326 Gasket, Water Pump 1600 Series 1626 Gear ENGINE (S3L2-W415RH) 1626 GEAR_FIG 118 WATER PUMP
MM409326 Gasket, Water Pump 1600 Series 1626 Gear ENGINE (S3L2-W415RH) 1626 GEAR_FIG 137 OVERHAUL GASKET KIT
MM40932601 GASKET WATER PUMP 1600 Series 1626 HST Refresh ENGINE(S3L2-W415RH) 1626 HST REFRESH_FIG 118 WATER PUMP
MM40932601 GASKET WATER PUMP 1600 Series 1626 HST Refresh ENGINE(S3L2-W415RH) 1626 HST REFRESH_FIG 137 OVERHAUL GASKET KIT
MM40932601 GASKET WATER PUMP 1600 Series 1626 Gear Refresh ENGINE(S3L2-W415RH) 1626 GEAR REFRESH_FIG 118 WATER PUMP
MM40932601 GASKET WATER PUMP 1600 Series 1626 Gear Refresh ENGINE(S3L2-W415RH) 1626 GEAR REFRESH_FIG 137 OVERHAUL GASKET KIT
MM409326 Gasket, Water Pump 1600 Series QUICK REFERENCE Engine QRF-1626 SERI_FIG EN01 ENGINE - 1626
MM409326 Gasket, Water Pump ENGINE 1600 Series 1626 QRF-1626 SERI_FIG EN01 ENGINE - 1626
MM409326 Gasket, Water Pump Max (T4 Series) Max 24 HST Engine   (S3L2-W412RH) MAX 24 HST_FIG 23 COOLING SYSTEM
MM409326 Gasket, Water Pump Max (T4 Series) Max 24 HST Engine   (S3L2-W412RH) MAX 24 HST_FIG 40 OVERHAUL GASKET KIT (2/2)
MM409326 Gasket, Water Pump Max (T4 Series) Max 26 XL Gear Engine   (S3L2-W412RH) MAX 26 XL GEAR_FIG 21 COOLING SYSTEM
MM409326 Gasket, Water Pump Max (T4 Series) Max 26 XL Gear Engine   (S3L2-W412RH) MAX 26 XL GEAR_FIG 37 OVERHAUL GASKET KIT
MM409326 Gasket, Water Pump Max (T4 Series) Max 26 XL HST Engine   (S3L2-W412RH) MAX 26 XL HST_FIG 21 COOLING SYSTEM
MM409326 Gasket, Water Pump Max (T4 Series) Max 26 XL HST Engine   (S3L2-W412RH) MAX 26 XL HST_FIG 39 OVERHAUL GASKET KIT (2/2)
MM409326 Gasket, Water Pump Max Series Max 22 HST Engine (S3L-W415RH) '01_MAX22_0001_0027-M' COOLING SYSTEM
MM409326 Gasket, Water Pump Max Series Max 22 HST Engine (S3L-W415RH) '01_MAX22_0001_0049-M' OVERHAUL GASKET KIT
MM409326 Gasket, Water Pump Max Series Max 25 HST Engine (S3L2-W411RH) 25MAX-COSYS-14 COOLING SYSTEM
MM409326 Gasket, Water Pump Max Series Max 25 HST Engine (S3L2-W411RH) 25MAX-OGTK2-14 OVERHAUL GASKET KIT 2
MM409326 Gasket, Water Pump Max Series Max 28 XL HST ENGINE (S3L2-Y316RH) '01_MAX28_0001_0027-M' COOLING SYSTEM
MM409326 Gasket, Water Pump Max Series Max 28 XL HST ENGINE (S3L2-Y316RH) '01_MAX28_0001_0049-M' OVERHAUL GASKET KIT
MM409326 Gasket, Water Pump Max Series Max 28 XL Gear ENGINE (S3L2-Y316RH) MAX28XLG-CS-14 COOLING SYSTEM
MM409326 Gasket, Water Pump Max Series Max 28 XL Gear ENGINE (S3L2-Y316RH) MAX28XLG-OGK2-14 OVERHAUL GASKET KIT (2/2)
MM409326 Gasket, Water Pump Max XL Series Max 26XLT HST ENGINE (S3L2-W413RH) MAX26 HST_FIG 118 WATER PUMP
MM409326 Gasket, Water Pump Max XL Series Max 26XLT HST ENGINE (S3L2-W413RH) MAX26 HST_FIG 137 OVERHAUL GASKET KIT
MM409326 Gasket, Water Pump Max XL Series Max 26XLT Gear ENGINE (S3L2-W413RH) MAX 26 GEAR_FIG.118 WATER PUMP
MM409326 Gasket, Water Pump Max XL Series Max 26XLT Gear ENGINE (S3L2-W413RH) MAX 26 GEAR_FIG.137 OVERHAUL GASKET KIT
MM409326 Gasket, Water Pump Max XL Series Max 25 XL HST ENGINE (S3L2-W413RH) MAX 25 XL HST_FIG.118 WATER PUMP
MM409326 Gasket, Water Pump Max XL Series Max 25 XL HST ENGINE (S3L2-W413RH) MAX 25 XL HST_FIG.137 OVERHAUL GASKET KIT
cdk-part-number:
MM409326
Section:
COOLING
Model:
1526
Model:
1626
Model:
2015
Model:
2216
Model:
2415
Model:
2516
Model:
2615
Model:
2816
Model:
3016
Model:
MAX22
Model:
MAX24
Model:
MAX25
Model:
MAX26
Model:
MAX28
Model:
3015
Section:
GASKET
