| PART NUMBER |
DESCRIPTION |
SERIES |
MODEL |
AGGREGATE |
GROUP NO. |
GROUP NAME |
| AME012756 |

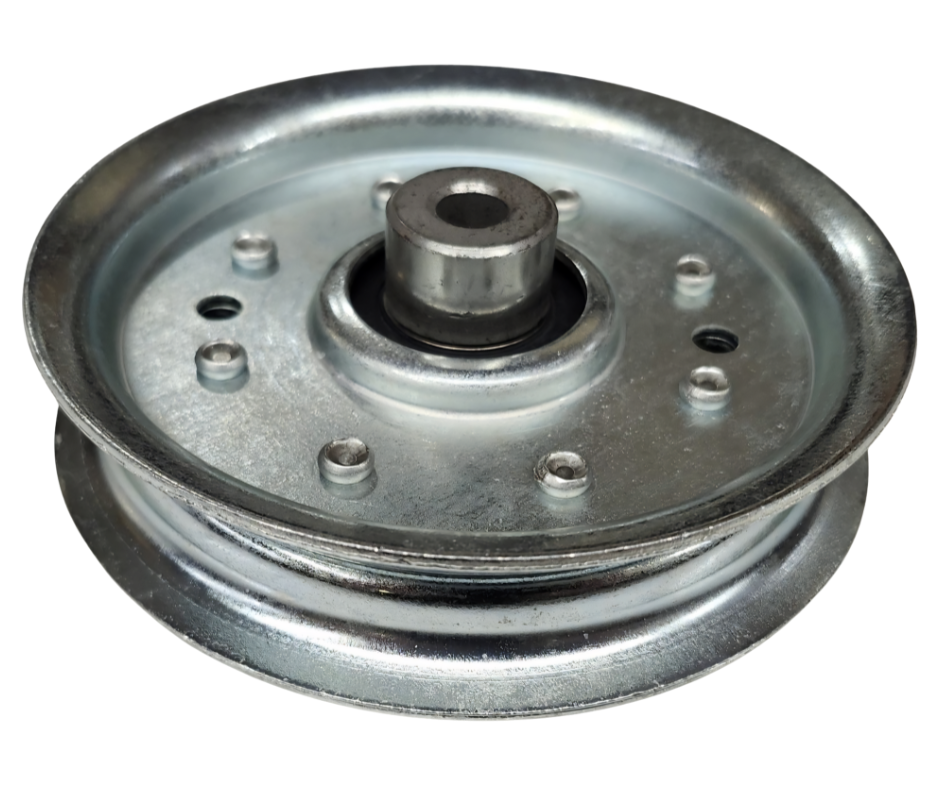

PULLEY, Idler 4" |
Mower |
AMEREQUIP-MAH1660 Basic 60" Mower (2516/Max28XL) |
MAH1660 Basic 60" Mower (SN # 1001 & later) |
MAH1660-60-MD-11 |

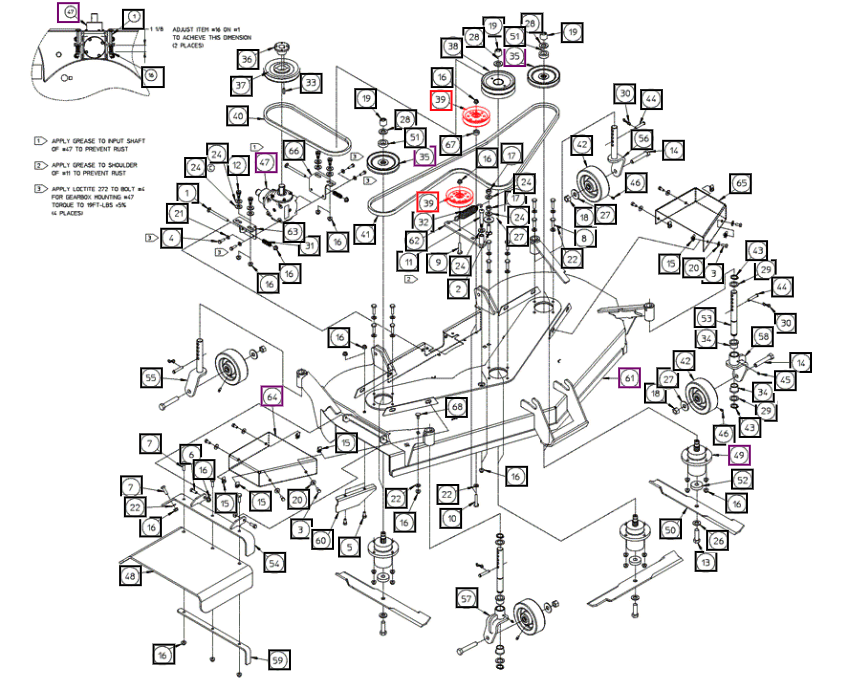

MOWER DECK PARTS BREAKDOWN |
| AME012756 |
PULLEY, Idler 4" |
Mower |
AMEREQUIP-MAH1660 Basic 60" Mower (2516/Max28XL) |
MAH1660 Basic 60" Mower (SN # 3001 & later) |
MAH1660-60-MD-13 |
MOWER DECK PARTS BREAKDOWN |
| AME012756 |
PULLEY, Idler 4" |
Mower |
AMEREQUIP-MAH1672 Basic 72" Mower (3016/3616/3616C) |
MAH1672 BASIC 72” MOWER (SN# 3001) |
MAH1672-72-MD-13 |
MOWER DECK |
| AME012756 |
PULLEY, Idler 4" |
Mower |
AMEREQUIP-MAHMX60 Basic 60" Mower (MAX22/MAX25) |
MAHMX60 Basic 60" Mower (SN1001-4000) |
MX60-MODE-12 |
MOWER DECK SERVICE PARTS BREAKDOWN |
| AME012756 |
PULLEY, Idler 4" |
Mower |
AMEREQUIP-MAHMX60 Basic 60" Mower (MAX22/MAX25) |
MAHMX60 Basic 60" Mower (From SN# 4001) |
MAHMX60-MD-IPL-13 |
MOWER DECK SERVICE PARTS BREAKDOWN |
| AME012756 |
PULLEY, Idler 4" |
Mower |
AMEREQUIP-eMax 25M 60" MOWER(eMax 22 HST/25 HST,SN 1001 & LATER) |
eMax 25M MOWER |
FIG 04 |
MOWER DECK SERVICE PARTS PART 1 |
| AME012756 |
PULLEY, Idler 4" |
Mower |
AMEREQUIP-eMax 25M 60" MOWER(eMax 22 HST/25 HST,SN 1001 & LATER) |
eMax 25M MOWER |
FIG 05 |
MOWER DECK SERVICE PARTS PART 2 |
| AME012756 |
PULLEY, Idler 4" |
Mower |
AMEREQUIP-Max 24 Mower 60" Mower and Mounting (Max 22/24/25) (MAX24-5001 & Later) |
Max 24Mower |
FIG 05 |
MOWER DECK PARTS (PART2) |
| AME012756 |
PULLEY, Idler 4" |
Mower |
AMEREQUIP-Max 26Mower - 60" Mower and Mounting (Max 26/Max 28 XL) (SN MAX26M-4001 & Later) |
Max 26Mower |
MAX 26MOWER-FIG 05 |
MOWER DECK PARTS BREAKDOWN (PART2) |
| AME012756 |
PULLEY, Idler 4" |
Mower |
AMEREQUIP-MAH1538M 72” MOWER & MOUNTING (1533 & 1538) |
MAH1538M 72” MOWER & MOUNTING (1533 & 1538) |
MAH1538 -FIG 101 |
MOWER DECK PARTS BREAKDOWN |
| AME012756 |
PULLEY, Idler 4" |
Mower |
AMEREQUIP-eMax 22GM-60" MOWER(eMax 22 GEAR,SN 1001 & LATER) |
eMax 22GM |
EMAX 22GM-FIG 04 |
MOWER DECK SERVICE PARTS BREAKDOWN |
| AME012756 |
PULLEY, Idler 4" |
Mower |
AMEREQUIP-eMax 22GM-60" MOWER(eMax 22 GEAR,SN 1001 & LATER) |
eMax 22GM |
EMAX 22GM-FIG 05 |
MOWER DECK SERVICE PARTS BREAKDOWN |
| AME012756 |
PULLEY, Idler 4" |
Mower |
AMEREQUIP-MAX 24 MOWER 60” MOWER AND MOUNTING (MAX 24M-6001 & LATER) |
AMEREQUIP-MAX 24 MOWER 60” MOWER AND MOUNTING |
MAX 24M-6001_FIG 03 |
MOWER DECK SERVICE PARTS BREAKDOWN |
| AME012756 |
PULLEY, Idler 4" |
Mower |
AMEREQUIP-MAX 24 MOWER 60” MOWER AND MOUNTING (MAX 24M-6001 & LATER) |
AMEREQUIP-MAX 24 MOWER 60” MOWER AND MOUNTING |
MAX 24M-6001_FIG 03A |
MOWER DECK SERVICE PARTS BREAKDOWN |
| AME012756 |
PULLEY, Idler 4" |
Mower |
AMEREQUIP-MAHMX60 Basic 60" Mower (MAX22/MAX25) |
MAHMX60 BASIC 60” MOWER(SN# 1001 & LATER) |
MAHMX60-SN-MODECK-3 |
MOWER DECK SERVICE PARTS BREAKDOWN |
