Mahindra C Ring Shaft 25 V7041400250 – Front Axle, Transmission, Brake, PTO & HST Linkage - 10 Series Tractors 2310, 2810, 3510, 4010, 4110, 4510, 5010 and 6010

Was: $12.80
Now: $7.99
No reviews yet Write a Review

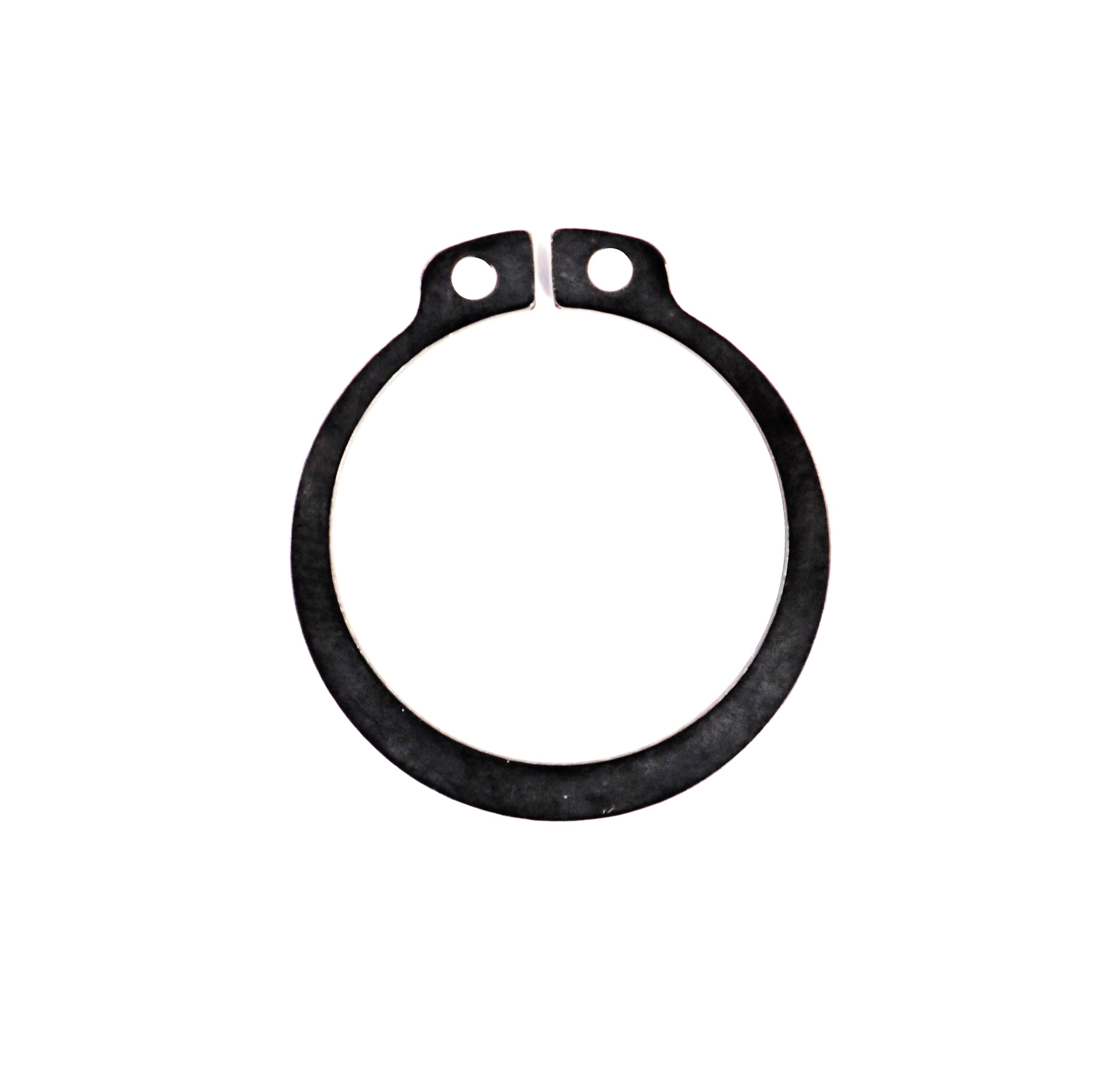

Mahindra C‑Ring Shaft 25 V7041400250 25 mm snap ring used on Mahindra 10 Series tractors in front axle, transmission, brake pedal linkage, 4WD drive, PTO speed gears, HST control linkage and hydraulic gear pump assemblies.
SKU:
V7041400250
PART NUMBER DESCRIPTION SERIES MODEL AGGREGATE GROUP NAME QTY USED ON TRACTOR

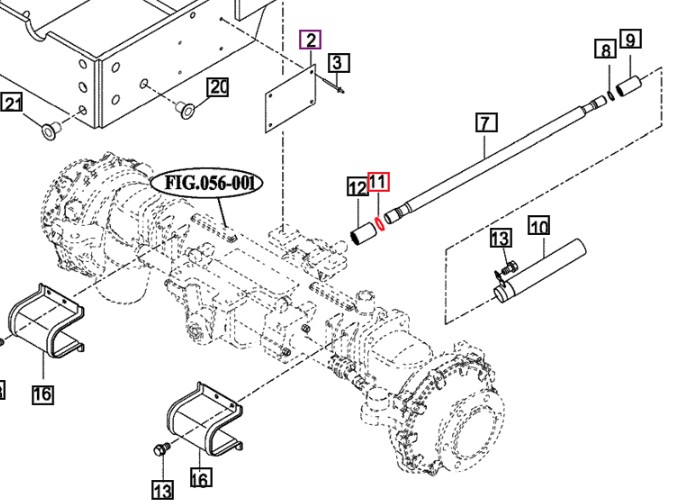

V7041400250 C-RING, Shaft 25 10 Series 2310 HST Front Axle FRONT AXLE BRACKET & DRIVE SHAFT 1
V7041400250 C-RING, Shaft 25 10 Series 2310 HST HST FORWARD & REVERSE CONTROL LINKAGE 4
V7041400250 C-RING, Shaft 25 10 Series 2810 HST 4WD HST FORWARD & REVERSE CONTROL LINKAGE 4
V7041400250 C-RING, Shaft 25 10 Series 2310 HST Hydraulics GEAR PUMP 1

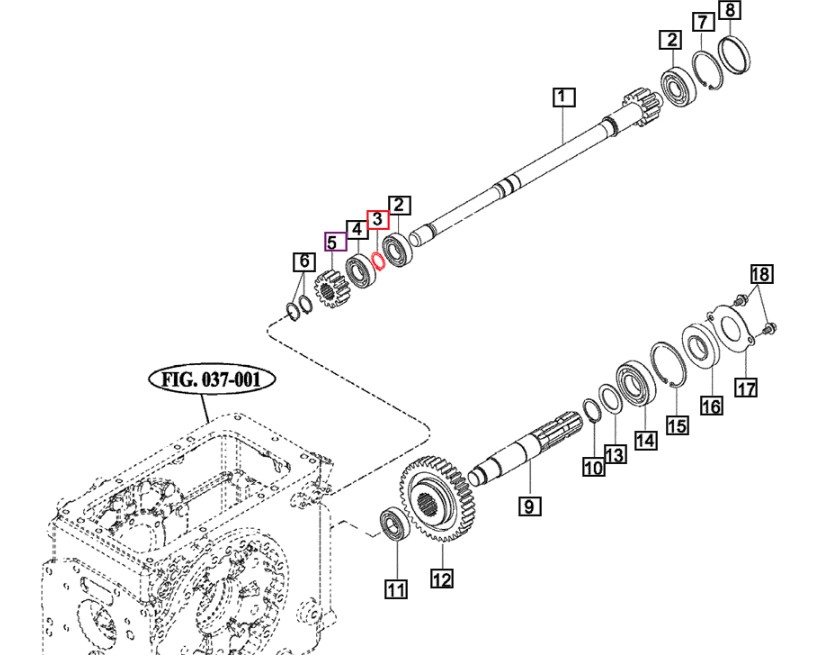

V7041400250 C-RING, Shaft 25 10 Series 2310 HST Transmission & Rear Axle REAR PTO SPEED GEARS 1
V7041400250 C-RING, Shaft 25 10 Series 2810 HST 4WD Transmission & Rear Axle REAR PTO SPEED GEARS 1
V7041400250 C-RING, Shaft 25 10 Series 2310 HST Transmission & Rear Axle REAR PTO SPEED GEARS 2
V7041400250 C-RING, Shaft 25 10 Series 2810 HST 4WD Transmission & Rear Axle REAR PTO SPEED GEARS 2
V7041400250 C-RING, Shaft 25 10 Series 2310 HST Transmission & Rear Axle 4WD DRIVE GEAR & SHIFT LINKAGE 1
V7041400250 C-RING, Shaft 25 10 Series 2810 HST 4WD Transmission & Rear Axle 4WD DRIVE GEAR & SHIFT LINKAGE 1

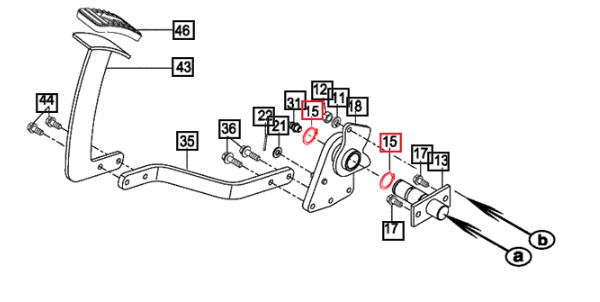

V7041400250 C-RING, Shaft 25 10 Series 2310 4WD Gear Brake & Control BRAKE PEDAL & LINKAGE 4
V7041400250 C-RING, Shaft 25 10 Series 2810 4WD Gear (New Sheet Metal) - From SN# 281V Brake & Control BRAKE PEDAL & LINKAGE 4
V7041400250 C-RING, Shaft 25 10 Series 2310 4WD Gear Front Axle FRONT DIFFERENTIAL GEARS & SHAFT 1
V7041400250 C-RING, Shaft 25 10 Series 2810 4WD Gear (New Sheet Metal) - From SN# 281V Front Axle FRONT DIFFERENTIAL GEARS & SHAFT 1
V7041400250 C-RING, Shaft 25 10 Series 2310 4WD Gear Hydraulics GEAR PUMP 1

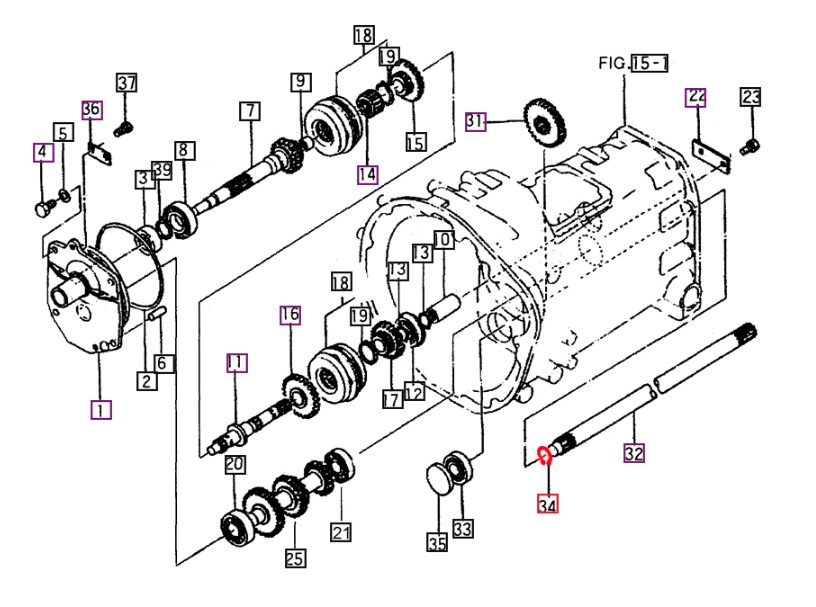

V7041400250 C-RING, Shaft 25 10 Series 2310 4WD Gear Transmission & Rear Axle INPUT & COUNTER GEAR 1
V7041400250 C-RING, Shaft 25 10 Series 2810 4WD Gear (New Sheet Metal) - From SN# 281V Transmission & Rear Axle INPUT & COUNTER GEAR 1
V7041400250 C-RING, Shaft 25 10 Series 2310 4WD Gear Transmission & Rear Axle 4WD DRIVE GEAR 1
V7041400250 C-RING, Shaft 25 10 Series 2810 4WD Gear (New Sheet Metal) - From SN# 281V Transmission & Rear Axle 4WD DRIVE GEAR 1
V7041400250 C-RING, Shaft 25 10 Series 2810 4WD Gear (New Sheet Metal) - From SN# 281V Hydraulics GEAR PUMP 1
V7041400250 C-RING, Shaft 25 10 Series 2810 HST 4WD Front Axle FRONT AXLE BRACKET & DRIVE SHAFT 1
V7041400250 C-RING, Shaft 25 10 Series 2810 HST 4WD Hydraulics GEAR PUMP 1
V7041400250 C-RING, Shaft 25 10 Series 2810 4WD Gear (Old Sheet Metal) - SN# 281S - 281U Chassis - 2810 (Old Sheet Metal) BRAKE PEDAL 1
V7041400250 C-RING, Shaft 25 10 Series 2810 4WD Gear (Old Sheet Metal) - SN# 281S - 281U Chassis - 2810 (Old Sheet Metal) HYDRAULIC PIPE 1
V7041400250 C-RING, Shaft 25 10 Series 2810 4WD Gear (Old Sheet Metal) - SN# 281S - 281U Chassis - 2810 (Old Sheet Metal) FRONT AXLE 2
V7041400250 C-RING, Shaft 25 10 Series 2810 4WD Gear (Old Sheet Metal) - SN# 281S - 281U Chassis - 2810 (Old Sheet Metal) SYNCHROMESH 1
V7041400250 C-RING, Shaft 25 10 Series 2810 4WD Gear (Old Sheet Metal) - SN# 281S - 281U Chassis - 2810 (Old Sheet Metal) FRONT DRIVE 1
V7041400250 C-RING, Shaft 25 10 Series 3510 4WD Gear (New Sheet Metal) - From SN# 351V Brake & Control (New Sheet Metal) - 3510 BRAKE PEDAL & LINKAGE 4
V7041400250 C-RING, Shaft 25 10 Series 3510 4WD Gear (New Sheet Metal) - From SN# 351V Front Axle, Supporter & Drive Shaft (New Sheet Metal) - 3510 FRONT DIFFERENTIAL GEARS & SHAFT (UPTO - SN -3510V070256) 2
V7041400250 C-RING, Shaft 25 10 Series 3510 4WD Gear (New Sheet Metal) - From SN# 351V Front Axle, Supporter & Drive Shaft (New Sheet Metal) - 3510 FRONT DIFFERENTIAL GEARS & SHAFT 2
V7041400250 C-RING, Shaft 25 10 Series 4110 (New Sheet Metal) - From SN# 411V Front Axle, Supporter & Drive Shaft (New Sheet Metal) - 4110 FRONT DIFFERENTIAL GEARS & SHAFT 2
V7041400250 C-RING, Shaft 25 10 Series 3510 4WD Gear (New Sheet Metal) - From SN# 351V Transmission & Rear Axle (New Sheet Metal) - 3510 4WD DRIVE GEARS 2
V7041400250 C-RING, Shaft 25 10 Series 4110 (New Sheet Metal) - From SN# 411V Transmission & Rear Axle (New Sheet Metal) - 4110 4WD DRIVE GEARS 2
V7041400250 C-RING, Shaft 25 10 Series 3510 4WD Gear (New Sheet Metal) - From SN# 351V Transmission & Rear Axle (New Sheet Metal) - 3510 P.T.O. CHANGE LINKAGE 1
V7041400250 C-RING, Shaft 25 10 Series 4110 (New Sheet Metal) - From SN# 411V Transmission & Rear Axle (New Sheet Metal) - 4110 P.T.O. CHANGE LINKAGE 1
V7041400250 C-RING, Shaft 25 10 Series 3510 4WD Gear (Old Sheet Metal) - SN# 351S - 351U Chassis (Old Sheet Metal) - 3510 BRAKE PEDAL 4
V7041400250 C-RING, Shaft 25 10 Series 4110 (Old Sheet Metal) - SN# 411S - 411U Chassis (Old Sheet Metal) - 4110 BRAKE PEDAL 4
V7041400250 C-RING, Shaft 25 10 Series 3510 4WD Gear (Old Sheet Metal) - SN# 351S - 351U Chassis (Old Sheet Metal) - 3510 FRONT DRIVE SHAFT 2
V7041400250 C-RING, Shaft 25 10 Series 3510 4WD Gear (Old Sheet Metal) - SN# 351S - 351U Chassis (Old Sheet Metal) - 3510 DRIVE GEAR 2
V7041400250 C-RING, Shaft 25 10 Series 4110 (Old Sheet Metal) - SN# 411S - 411U Chassis (Old Sheet Metal) - 4110 DRIVE GEAR 2
V7041400250 C-RING, Shaft 25 10 Series 3510 4WD Gear (Old Sheet Metal) - SN# 351S - 351U Chassis (Old Sheet Metal) - 3510 P.T.O. CHANGE SHIFTER 1
V7041400250 C-RING, Shaft 25 10 Series 4110 (Old Sheet Metal) - SN# 411S - 411U Chassis (Old Sheet Metal) - 4110 P.T.O. CHANGE SHIFTER 1
V7041400250 C-RING, Shaft 25 10 Series 3510 HST Front Axle, Supporter & Drive Shaft FRONT AXLE BRACKET & DRIVE SHAFT 1
V7041400250 C-RING, Shaft 25 10 Series 3510 HST HST FORWARD & REVERSE CONTROL LINKAGE 4
V7041400250 C-RING, Shaft 25 10 Series 3510 HST Hydraulics GEAR PUMP 1
V7041400250 C-RING, Shaft 25 10 Series 3510 HST Transmission & Rear Axle 4WD DRIVE GEAR & SHIFT LINKAGE 1
V7041400250 C-RING, Shaft 25 10 Series 3510 HST Transmission & Rear Axle REAR P.T.O. SPEED GEARS 1
V7041400250 C-RING, Shaft 25 10 Series 3510 HST Transmission & Rear Axle REAR P.T.O. SPEED GEARS 2
V7041400250 C-RING, Shaft 25 10 Series 4110 (Old Sheet Metal) - SN# 411S - 411U Chassis (Old Sheet Metal) - 4110 POWER STEERING 1
V7041400250 C-RING, Shaft 25 10 Series 4110 (Old Sheet Metal) - SN# 411S - 411U Chassis (Old Sheet Metal) - 4110 FRONT DRIVE SHAFT 2
V7041400250 C-RING, Shaft 25 10 Series 4110 (New Sheet Metal) - From SN# 411V Brake & Control (New Sheet Metal) - 4110 BRAKE PEDAL & LINKAGE 4
V7041400250 C-RING, Shaft 25 10 Series 4110 (New Sheet Metal) - From SN# 411V Front Axle, Supporter & Drive Shaft (New Sheet Metal) - 4110 FRONT DIFFERENTIAL GEARS & SHAFT (UPTO - SN -4110V080379) 2
V7041400250 C-RING, Shaft 25 10 Series 4110 (New Sheet Metal) - From SN# 411V Hydraulics (New Sheet Metal) - 4110 GEAR PUMP 1
V7041400250 C-RING, Shaft 25 10 Series 4110 -T4 Chassis 4WD DRIVE GEARS 2
V7041400250 C-RING, Shaft 25 10 Series 4110 -T4 Chassis P.T.O CHANGE LINKAGE 1
V7041400250 C-RING, Shaft 25 10 Series 4110 -T4 Chassis BRAKE PEDAL & LINKAGE 4
V7041400250 C-RING, Shaft 25 10 Series 4110 -T4 Chassis FRONT DIFFERENTIAL GEARS & SHAFT 2
V7041400250 C-RING, Shaft 25 10 Series 4110 -T4 Chassis GEAR PUMP 1
V7041400250 C-RING, Shaft 25 10 Series 4510 Cabin T4 Chassis 4WD DRIVE GEARS 2
V7041400250 C-RING, Shaft 25 10 Series 4510 Cabin T4 Chassis P.T.O. CHANGE LINKAGE 1
V7041400250 C-RING, Shaft 25 10 Series 4510 Cabin T4 Chassis BRAKE PEDAL & LINKAGE 4
V7041400250 C-RING, Shaft 25 10 Series 4510 Cabin T4 Chassis FRONT DIFFERENTIAL GEARS & SHAFT 2
V7041400250 C-RING, Shaft 25 10 Series 4510 Cabin T4 Chassis GEAR PUMP 1
V7041400250 C-RING, Shaft 25 10 Series 5010 Gear 4WD Chassis BRAKE PEDAL & LINKAGE 4
V7041400250 C-RING, Shaft 25 10 Series 5010 Gear 4WD Chassis P.T.O DRIVE SHAFT 1
V7041400250 C-RING, Shaft 25 10 Series 5010 Gear 4WD Chassis SUB CHANGE GEARS 1
V7041400250 C-RING, Shaft 25 10 Series 5010 Gear 4WD Chassis 4WD DRIVE GEARS 2
V7041400250 C-RING, Shaft 25 10 Series 5010 Gear 4WD Chassis 4WD DRIVE GEARS 1
V7041400250 C-RING, Shaft 25 10 Series 5010 Gear 4WD Chassis FRONT DRIVE SHAFT 2
V7041400250 C-RING, Shaft 25 10 Series 5010 Gear 4WD Chassis HYDRAULIC PIPE (2) 1
V7041400250 C-RING, Shaft 25 10 Series 5010 Gear Cabin Chassis BRAKE PEDAL & LINKAGE 4
V7041400250 C-RING, Shaft 25 10 Series 5010 Gear Cabin Chassis P.T.O DRIVE SHAFT 1
V7041400250 C-RING, Shaft 25 10 Series 5010 Gear Cabin Chassis SUB CHANGE GEARS 1
V7041400250 C-RING, Shaft 25 10 Series 5010 Gear Cabin Chassis 4WD DRIVE GEARS 2
V7041400250 C-RING, Shaft 25 10 Series 5010 Gear Cabin Chassis 4WD DRIVE GEARS 1
V7041400250 C-RING, Shaft 25 10 Series 5010 Gear Cabin Chassis FRONT DRIVE SHAFT 2
V7041400250 C-RING, Shaft 25 10 Series 5010 Gear Cabin Chassis HYDRAULIC PIPE 2 1
V7041400250 C-RING, Shaft 25 10 Series 5010 HST Cabin Chassis BRAKE PEDAL & LINKAGE 4
V7041400250 C-RING, Shaft 25 10 Series 5010 HST Cabin Chassis SUB CHANGE GEARS 1
V7041400250 C-RING, Shaft 25 10 Series 5010 HST Cabin Chassis DRIVE GEARS 2
V7041400250 C-RING, Shaft 25 10 Series 5010 HST Cabin Chassis DRIVE GEARS 1
V7041400250 C-RING, Shaft 25 10 Series 5010 HST Cabin Chassis P.T.O. DRIVE SHAFT 1
V7041400250 C-RING, Shaft 25 10 Series 5010 HST Cabin Chassis FRONT DRIVE SHAFT 2
V7041400250 C-RING, Shaft 25 10 Series 5010 HST Cabin Chassis HYDRAULIC PIPE 2 1
V7041400250 C-RING, Shaft 25 10 Series 4010 Gear Clutch, Brake, Steering BRAKE PEDAL 4
V7041400250 C-RING, Shaft 25 10 Series 4010 Gear Front Axle FRONT AXLE BRACKET 2
V7041400250 C-RING, Shaft 25 10 Series 4010 Gear Hydraulics & 3-Point Link GEAR PUMP 1
V7041400250 C-RING, Shaft 25 10 Series 4010 HST Clutch, Brake, Steering FORWARD & REVERSE CONTROL LINKAGE 4
V7041400250 C-RING, Shaft 25 10 Series 4010 HST Transmission & Rear Axle 4WD GEAR & SHIFT LINKAGE 1
V7041400250 C-RING, Shaft 25 10 Series 4010 HST Transmission & Rear Axle REAR P.T.O SPEED GEARS 1
V7041400250 C-RING, Shaft 25 10 Series 4010 HST Transmission & Rear Axle REAR P.T.O SPEED GEARS 2
V7041400250 C-RING, Shaft 25 10 Series 4010 HST Front Axle FRONT AXLE BRACKET & DRIVE SHAFT 1
V7041400250 C-RING, Shaft 25 10 Series 4010 HST Hydraulics & 3-Point Link GEAR PUMP 1
V7041400250 C-RING, Shaft 25 10 Series 4510 Cabin T2 Chassis 4WD DRIVE GEARS 2
V7041400250 C-RING, Shaft 25 10 Series 4510 Cabin T2 Chassis P.T.O CHANGE LINKAGE 1
V7041400250 C-RING, Shaft 25 10 Series 4510 Cabin T2 Chassis BRAKE PEDAL & LINKAGE 4
V7041400250 C-RING, Shaft 25 10 Series 4510 Cabin T2 Chassis FRONT DIFFERENTIAL GEARS & SHAFT 2
V7041400250 C-RING, Shaft 25 10 Series 4510 Cabin T2 Chassis GEAR PUMP 1
V7041400250 C-RING, Shaft 25 10 Series 6010 HST Cabin Chassis BRAKE PEDAL & LINKAGE 4
V7041400250 C-RING, Shaft 25 10 Series 6010 HST Cabin Chassis SUB CHANGE GEARS 1
