MAHINDRA

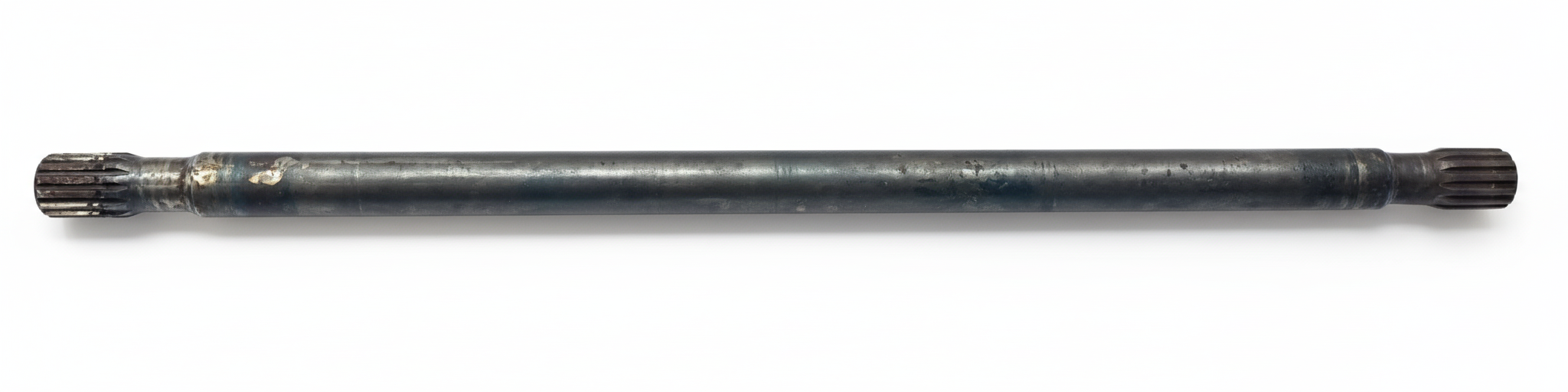

Mahindra Front Axle Drive Shaft 16724310010 22 3/8 Inch For 3510 And 4110 4WD Tractors

Was: $125.00

Now: $109.99

No reviews yet Write a Review

Mahindra front axle drive shaft 16724310010 22 3/8 inch propeller shaft for 10 Series 3510 and 4110 4WD tractors, running between the transmission output and the front differential gears and shaft.

SKU:: 16724310010

UPC:: 5838

Product Description
Specifications

PART NUMBER	DESCRIPTION	SERIES	MODEL	AGGREGATE	GROUP NO.	GROUP NAME
16724310010	DRIVE Shaft(For Front Axle) 22 3/8" Drive Shaft	10 Series	3510 4WD Gear (New Sheet Metal) - From SN# 351V	Front Axle, Supporter & Drive Shaft (New Sheet Metal) - 3510	01080163	FRONT DIFFERENTIAL GEARS & SHAFT
16724310010	DRIVE Shaft(For Front Axle) 22 3/8" Drive Shaft	10 Series	4110 (New Sheet Metal) - From SN# 411V	Front Axle, Supporter & Drive Shaft (New Sheet Metal) - 4110	01080163	FRONT DIFFERENTIAL GEARS & SHAFT
16724310010	DRIVE Shaft(For Front Axle) 22 3/8" Drive Shaft	10 Series	3510 4WD Gear (Old Sheet Metal) - SN# 351S - 351U	Chassis (Old Sheet Metal) - 3510	01210151	FRONT DRIVE SHAFT
16724310010	DRIVE Shaft(For Front Axle) 22 3/8" Drive Shaft	10 Series	4110 (Old Sheet Metal) - SN# 411S - 411U	Chassis (Old Sheet Metal) - 4110	01210153	FRONT DRIVE SHAFT
16724310010	DRIVE Shaft(For Front Axle) 22 3/8" Drive Shaft	10 Series	4110 -T4	Chassis	4110T4-FDGS-1-09	FRONT DIFFERENTIAL GEARS & SHAFT

cdk-part-number:: 16724310010

Model:: 3510

Section:: FRONT AXLE
